TRUSS-DOLLY

TRUSS-DOLLY
Truss dolly for transport & stocking

Technical details

Code
TRUSS-DOLLY
Width
600 mm
Length
800 mm
Height
200 mm
Self Weight
10.10 kg

Detailed information

Basic info

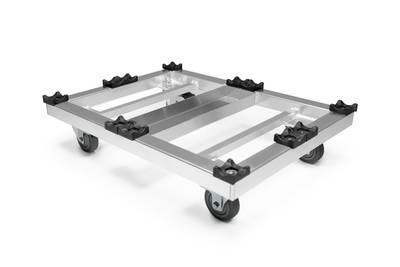

The innovative, universal design and placement of the durable rubber holders on the truss carrier allow it to hold both quatro and trio formats of M290 and M390 series truss. Constructed from aluminium, the dolly features channels for attaching ratchet straps. Due to the dolly’s 800 x 600 mm dimensions, it fits in most trucks. When not in use, the empty dollies stack on top of each other to save space.
• Stacking capacity up to 6 levels of truss
• Grooves for securing ratchet straps
• Dimensions: 800 x 600 mm
• 2 regular wheels and 2 wheels with brakes
  (each wheel has a 100 kg loading capacity)
• Made from aluminium
• Custom size dollies available on request
