Key Benefits

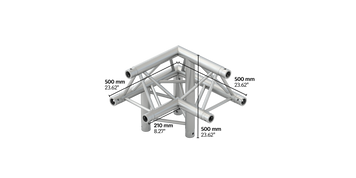

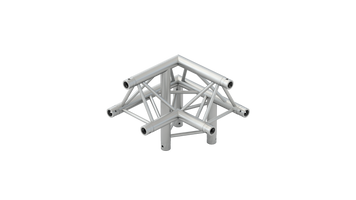

M290VU trio 3way truss corner apex up right HD
Elevate your truss designs with the ALVU31|3way90dg HD aluminium Truss Corner. This corner piece is engineered for the M290 Trio truss system, offering exceptional versatility for both small and large applications. The precise design enables strong, reliable configurations, providing flexibility and strength for a wide range of creative truss structures. Crafted from high-quality aluminium. Compatible with the M290 Trio truss system and 200/400/500/600 series cell clamps, it offers versatile attachment options. Each unit includes a connection kit for fast, secure assembly. Ideal for stage production, exhibitions, and event setups.
Dimensions
- Length (mm)
- 500.0
- Width (mm)
- 500.0
- Height (mm)
- 500.0
- Main Chord Size (mm)
- 48x3
- Brace Size (mm)
- 20x2
Others
- Material
- Aluminium
- Connection system
- conical
- Truss Connector
- CCU
- Pin Type
- PB
- Standard Color
- Natural Aluminium
- Optional Color
- true
- Cell Clamps Compatibility
- 200, 400, 500, 600
