CELL204/134
CELL204/134
CELL219

CELL204/134

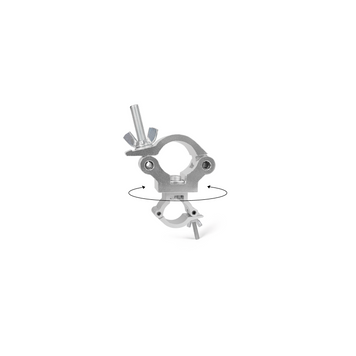

The CELL219 swivel coupler is designed for tubes with diameters of 32–35 mm and 48–51 mm and consists of a CELL131 + CELL201 assembly.

Get more info or quote

Key Benefits

• Designed to suit 48–51-mm (1.89–2.01-in) diameter tubes
• Supplied with M12 eye bolt and wingnut
• Precision-extruded high-tensile aluminium alloy
• Mounting hole suitable for up to 13-mm (0.51-in) bolts
• DGUV V17 / BGV C1 rating
• Polished surface with micro-percussion marking
• Compatible with M290 / M390 / M400 / M520 / M760 / 4 GS-35 / 4GS-50 / 4GS-62 series truss

CELL204/134

The CELL219 swivel coupler is designed for tubes with diameters of 32–35 mm (1.26–1.38 in) and 48–51 mm (1.89–2.01 in) and consists of a CELL131 + CELL201 assembly. The swivel design allows flexible positioning when connecting truss or pipe structures. It is rated with a safety factor of 8:1 in accordance with DGUV-17/BGV C1 (WLL1: 160 kg (353 lbs)) and 4:1 in accordance with 2006/42/EC (WLL2: 330kg (705 lbs)), ensuring safe and reliable performance in professional rigging applications.

Dimensions

Length (mm)
106.0
Width (mm)
50.0
Height (mm)
174.0
Tube diameter (mm)
48-51

Others

Material
High Tensile Aluminium
WLL (kg)
160.0
Clamp type
Swivel Coupler
Fixing method
Regular
Self-weight (kg)
0.61
