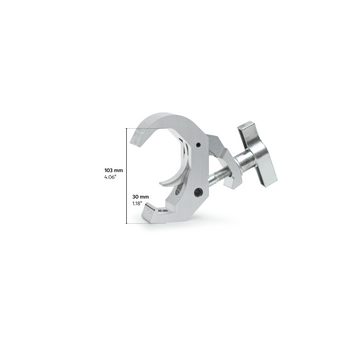

Quick truss clamp with wing bolt 10pcs -SWL 190kg(SF8:1) for 38-60mm tube
CELL411|10pcs

Quick truss clamp with wing bolt 10pcs -SWL 190kg(SF8:1) for 38-60mm tube

The CELL411 quick clamp features a wing bolt for secure and reliable fastening, ensuring quick and convenient installation. Sold only as 10 pcs.

Get more info or quote

Key Benefits

• Quick hook clamp series designed to suit 38–51-mm (1.50–2.01-in) diameter tubes
• Compatible with M290 / M390 / M400 / M520 / M760 / 4 GS-35 / 4GS-50 / 4GS-62
• Quick and easy attachment solution for moving heads
• Mounting hole suitable for up to 13-mm (0.51-in) bolts
• Precision-extruded high-tensile aluminium alloy
• Polished surface with micro-percussion marking
• DGUV V17 / BGV C1 rating
• Powder-coated versions available on request
• Supplied with M12 eye bolt and wingnut

Quick truss clamp with wing bolt 10pcs -SWL 190kg(SF8:1) for 38-60mm tube

The CELL411 quick clamp features a wing bolt for secure and reliable fastening, ensuring quick and convenient installation. Part of the reliable CELL400 clamp series, it is designed for use with tubes with a diameter of 38–51 mm (1.50–2.01 in), making it suitable for a wide range of truss, staging and structural applications.
The clamp incorporates a quick clamp connection and locking mechanism, allowing fast attachment and secure positioning. Built for durability and ease of use, the CELL411 quick clamp provides a practical and dependable solution for professional rigging and construction set-ups.

Dimensions

Length (mm)
175.0
Width (mm)
32.0
Height (mm)
118.0
Tube diameter (mm)
38-60
Cell body width (mm)
30.0

Others

Material
High Tensile Aluminium
WLL (kg)
190.0
Clamp type
Basic With Wing Bolt
Fixing method
Quick Hook
Self-weight (kg)
0.68
