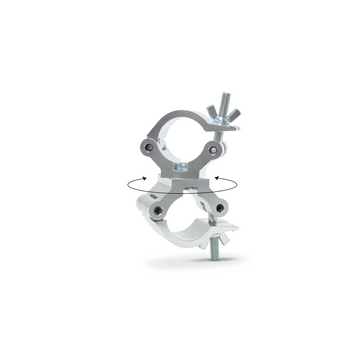

Swivel truss coupler 5pcs -SWL 650kg(SF8:1) for 60-63,5mm tube
CELL304|5pcs

Swivel truss coupler 5pcs -SWL 650kg(SF8:1) for 60-63,5mm tube

The CELL304 clamp is a set of two clamps that can rotate freely by 360 degrees, it is intended for connecting two tubes. Sold only as 5 pcs.

Get more info or quote

Key Benefits

• Designed to suit 60–63.5-mm (2.36–2.50-in) diameter tubes
• Mounting hole suitable for up to 13-mm (0.51-in) bolts
• Precision-extruded high-tensile aluminium alloy
• Polished surface with micro-percussion marking
• DGUV V17 / BGV C1 rating
• Compatible with M950 / 4GS-91
• Rated with SF 8:1 (kg) DGUV V17 /BGV C1 (WLL1)
• Rated with SF 4:1 (kg) 2006/42/EC (WLL2)
• Supplied with M12 eye bolt and wingnut

Swivel truss coupler 5pcs -SWL 650kg(SF8:1) for 60-63,5mm tube

The CELL304 clamp is a set of two clamps that can rotate freely by 360 degrees, it is intended for connecting two tubes. Part of the reliable CELL300 clamp series, it is designed for securely attaching equipment to tubes with a diameter of 60–63.5 mm (2.36–2.50 in), making it ideal for event, exhibition and structural set-ups. Crafted from precision-extruded high-tensile aluminium alloy, this clamp combines lightweight construction with exceptional strength and durability.
With a WLL of 650 kg (1433 lbs) with a safety factor of 8:1 in accordance with DGUV V17/BGV C1 and a higher capacity with a safety factor of 4:1 in accordance with 2006/42/EC, the CELL304 clamp is built to meet rigorous safety standards.

Dimensions

Length (mm)
119.0
Width (mm)
119.0
Height (mm)
222.0
Tube diameter (mm)
60-63,5
Cell body width (mm)
50.0

Others

Material
High Tensile Aluminium
WLL (kg)
650.0
Clamp type
Swivel Coupler
Fixing method
Regular
Self-weight (kg)
1.5
