Key Benefits

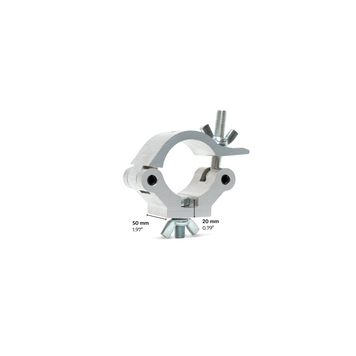

Truss clamp with bolt+wingnut 10pcs -SWL 650kg(SF8:1) for 60-63,5mm tube
The CELL302 clamp is a robust and versatile basic rigging accessory. Part of the reliable CELL300 clamp series, it is designed for securely attaching equipment to 60–63.5-mm (2.36–2.50-in) diameter tubes, making it ideal for event, exhibition and structural set-ups. Crafted from precision-extruded high-tensile aluminium alloy, this clamp combines lightweight construction with exceptional strength and durability. The CELL302 clamp is supplied with an M12x35 bolt and a wingnut.
With a WLL of 650 kg (1433 lbs) with a safety factor of 8:1 in accordance with DGUV V17/BGV C1 and a higher capacity with a safety factor of 4:1 in accordance with 2006/42/EC, the CELL302 clamp is built to meet rigorous safety standards.
Dimensions
- Length (mm)
- 119.0
- Width (mm)
- 50.0
- Height (mm)
- 147.0
- Tube diameter (mm)
- 60-63,5
- Cell body width (mm)
- 50.0
Others
- Material
- High Tensile Aluminium
- WLL (kg)
- 650.0
- Clamp type
- Basic With Wingnut
- Fixing method
- Regular
- Self-weight (kg)
- 0.75
