Key Benefits

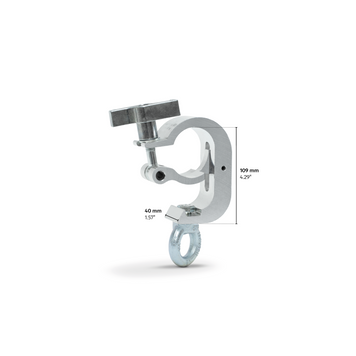

Truss clamp with lifting eye-SWL 350kg(SF8:1) for 48-51mm tube
The CELL603 clamp is a versatile hook clamp designed for professional rigging and suspension applications. Part of the CELL600 clamp series, it is suitable for tubes with a diameter of 48–51 mm (1.89–2.01 in), making it compatible with a wide range of truss and structural systems.
The clamp is equipped with a steel eye for attaching ropes or cables, providing a practical solution for suspending equipment or securing safety lines in staging and event environments.
Manufactured from precision-extruded high-tensile aluminium alloy, the clamp ensures excellent durability while maintaining a lightweight construction. The polished surface with micro-percussion marking provides clear identification and a professional finish.
The CELL603 clamp is compatible with M290, M390, M400, M520, M760, 4GS-35, 4GS-50 and 4GS-62 truss systems and meets DGUV 17 / BGV C1 requirements.
Dimensions
- Length (mm)
- 137.0
- Width (mm)
- 40.0
- Height (mm)
- 193.0
- Tube diameter (mm)
- 48-51
- Cell body width (mm)
- 40.0
Others
- Material
- High Tensile Aluminium
- WLL (kg)
- 350.0
- Clamp type
- Basic With Lifting Eye
- Fixing method
- Hook Clamp
- Self-weight (kg)
- 0.75
