Truss clamp with silver lifting eye-SWL 350kg(SF8:1) for 48-51mm tube, black anodized
CELL603|anodized

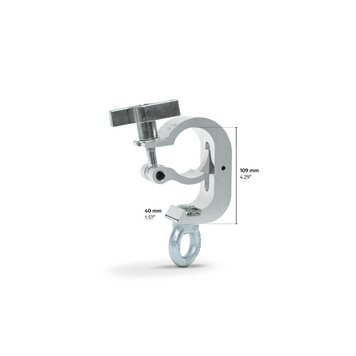

Truss clamp with silver lifting eye-SWL 350kg(SF8:1) for 48-51mm tube, black anodized

Clamp for tubes 48–51 mm, made from high-tensile aluminium alloy. Per DGUV V17/BGV C1 compatible with 4GS-35, 4GS-50 and others.

Get more info or quote

Key Benefits

• Hook clamp series designed to suit 48–51-mm (1.89–2.01-in) diameter tubes
• Compatible with M290 / M390 / M400 / M520 / M760 / 4 GS-35 / 4GS-50 / 4GS-62
• Quick and easy attachment solution for moving heads and heavy fixtures
• Mounting hole suitable for up to 13-mm (0.51-in) bolts
• Precision-extruded high-tensile aluminium alloy
• Polished surface with micro-percussion marking
• DGUV V17 / BGV C1 rating
• Supplied with M12 eye bolt and wingnut

Truss clamp with silver lifting eye-SWL 350kg(SF8:1) for 48-51mm tube, black anodized

The CELL603 - anodized clamp is a versatile hook clamp designed for professional rigging and suspension applications. Part of the CELL600 clamp series, it is suitable for tubes with a diameter of 48–51 mm (1.89–2.01 in), making it compatible with a wide range of truss and structural systems.
The clamp is equipped with a steel eye for attaching ropes or cables, providing a practical solution for suspending equipment or securing safety lines in staging and event environments.
Manufactured from precision-extruded high-tensile aluminium alloy, the clamp ensures excellent durability while maintaining a lightweight construction. The polished surface with micro-percussion marking provides clear identification and a professional finish.
The CELL603 clamp is compatible with M290, M390, M400, M520, M760, 4GS-35, 4GS-50 and 4GS-62 truss systems and meets DGUV 17 / BGV C1 requirements.

Dimensions

Length (mm)
137.0
Width (mm)
40.0
Height (mm)
193.0
Tube diameter (mm)
48-51
Cell body width (mm)
40.0

Others

Material
High Tensile Aluminium
WLL (kg)
350.0
Clamp type
Basic With Lifting Eye
Fixing method
Hook Clamp
Self-weight (kg)
0.75
