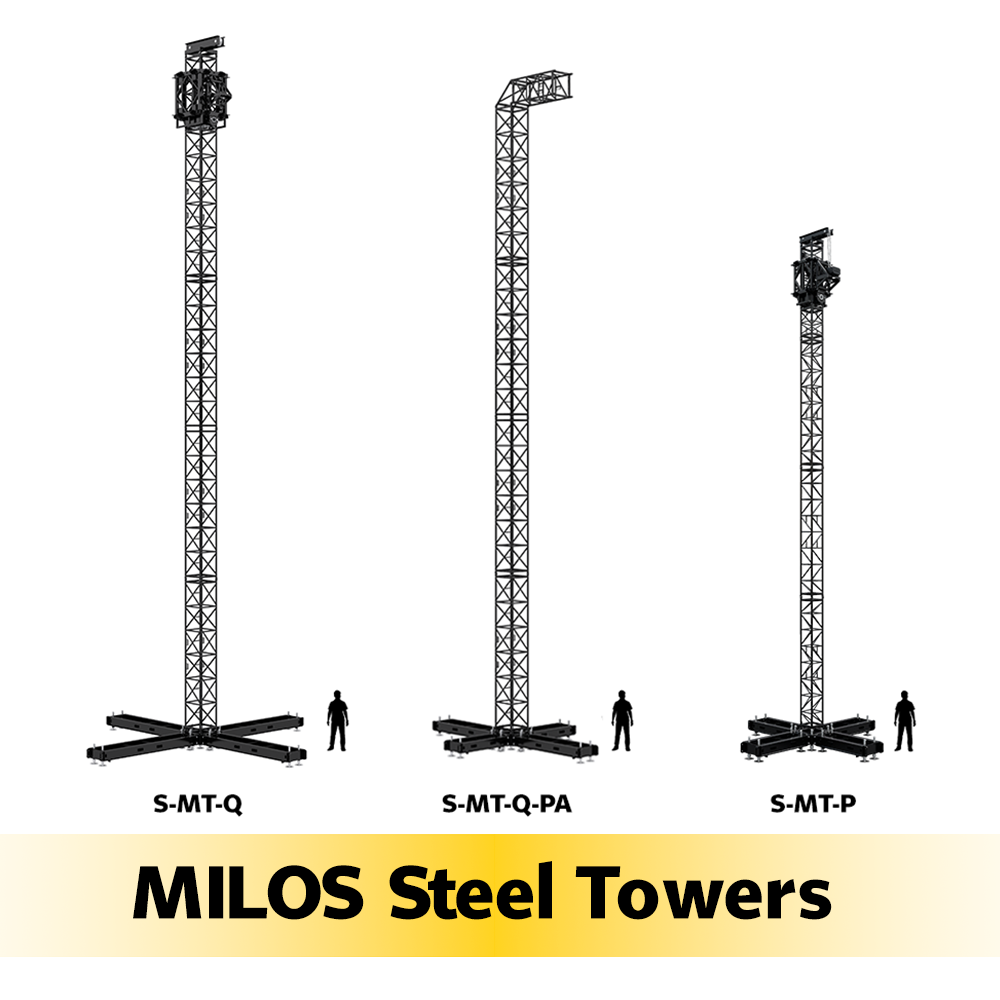

Touching The Heights With A Tower Of Steel
If you are planning to construct an integrated roof system with a large span structure and a huge LED screen complete with speakers meant to be heard from distance, then explore the complete range of MILOS Towers.
MILOS Steel Tower also work perfectly with aluminium. When you need more load capacity and overall higher properties for your aluminium roof, your choice will always be steel.
To reach great heights with a massive loading capacity, our tallest steel series tower is now available equipped with fantastic features. It provides unbelievably large loading capacities, stability, and overall durability.
The S-M-T-Q - Steel tower truss section is constructed with special ultra-high strength steel that allows it to handle an average of 2.5x more loading capacity - at just double the weight - compared to aluminium systems with the same dimensions and with the same deflection.
When used as 20 m high, free-standing tower integrated in S-MT-Q-01 Base, the load capacity is up to 50 960 kg or when used with a Locking Unit of to 45 333 kg
When used as a 20m high tower in a guy-wire braced ground support, the load capacity is up to 70189 kg, or reduced to 45 333 kg when used with a sleeve block and locking unit configuration.
Higher tower on specific request.
The MILOS S-MT-Q-PA Steel PA Tower provides large loading capacities for flying PA Systems at your events.
Rig your PA and be heard with MILOS S-MT-Q-PA Tower!
The Tower is constructed of MILOS S-QTQT Ultra High-Strength Steel Truss (780 x 780mm; 40 metre spans with UDL 76kg/m), allowing truss sections to handle an average of 2.5x more loading at just double the weight compared to aluminium systems with the same dimensions and of the same
A single tower can safely fly up to 2 500kg without the need for guy wires and little to no ballast (up to 2t) due to the self-weight of the tower (70kg/metre). And thanks to its extreme stability, secured structures can withstand wind loads of up to 28m/second.
This tower boasts incredible strength, stability, and robustness. It is simply the ideal choice if you need to raise your roof or LED screen for your events.
The tower is stable and robust thanks to its connection to the base, which can be extended by outriggers and has also guy-wire attachment points. Adjustable spindles allows you optimal height adjustment.
Constructed with MILOS S-QTPT Ultra-High-Strength steel Truss (530x530mm: 35m Span with 69kg/m UDL). Pinned connectors are used to increase safety and strength.
To protect the sleeve block/mother grid against drop and lift, the tower is fitted with a unique locking unit.
On the top you can find a steel head-section with aluminium wheels and heavy duty bearings for easier lifting
A steel base with integrated lugs for outriggers connection. Outriggers can interconnect towers in the ground support system.
A steel base with outriggers can be used for self-standing tower. Also Lugs on steel base and outriggers feature a variety of guy-wire attachment points.
The tower has optimised dimensions for packaging and/or nesting in the truck as well as forklift pickup points for easier loading.
When used as 20 m high, free-standing tower integrated in S-MT-P-01 Base, the load capacity is up to 25 145 kg.
When used as 20 m high tower in a guy-wire-braced ground support, the load capacity is up to 47 228 kg, or when used with Locking Unit to 45 333 kg.
Milos. A 25+ years young brand, with fast, flexible, and affordable quality solutions. “Milos works better”
