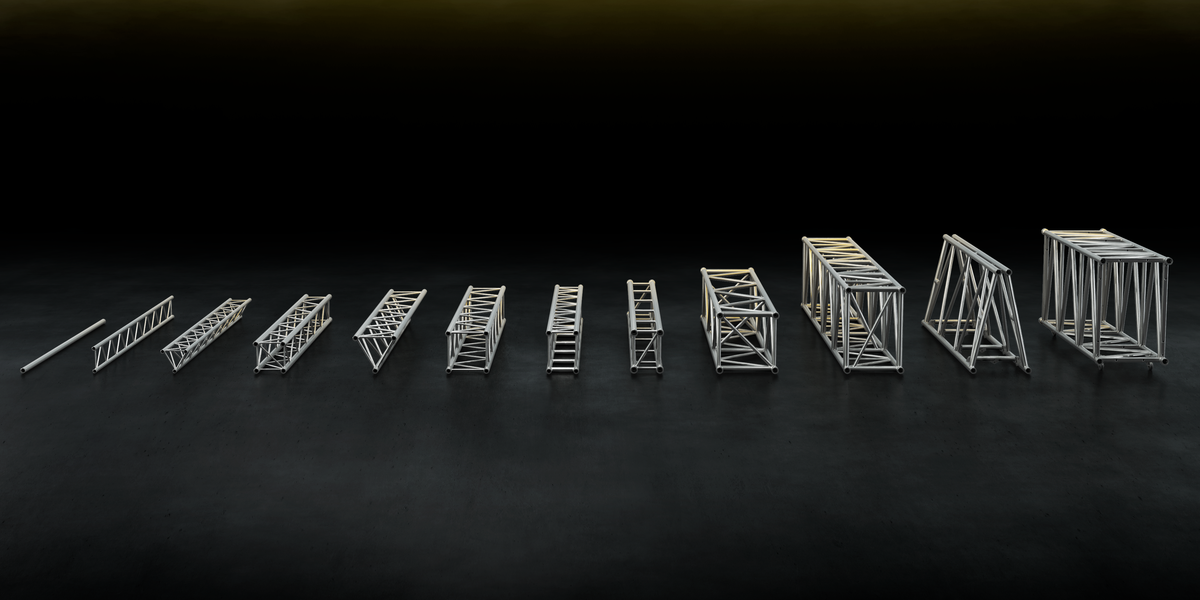

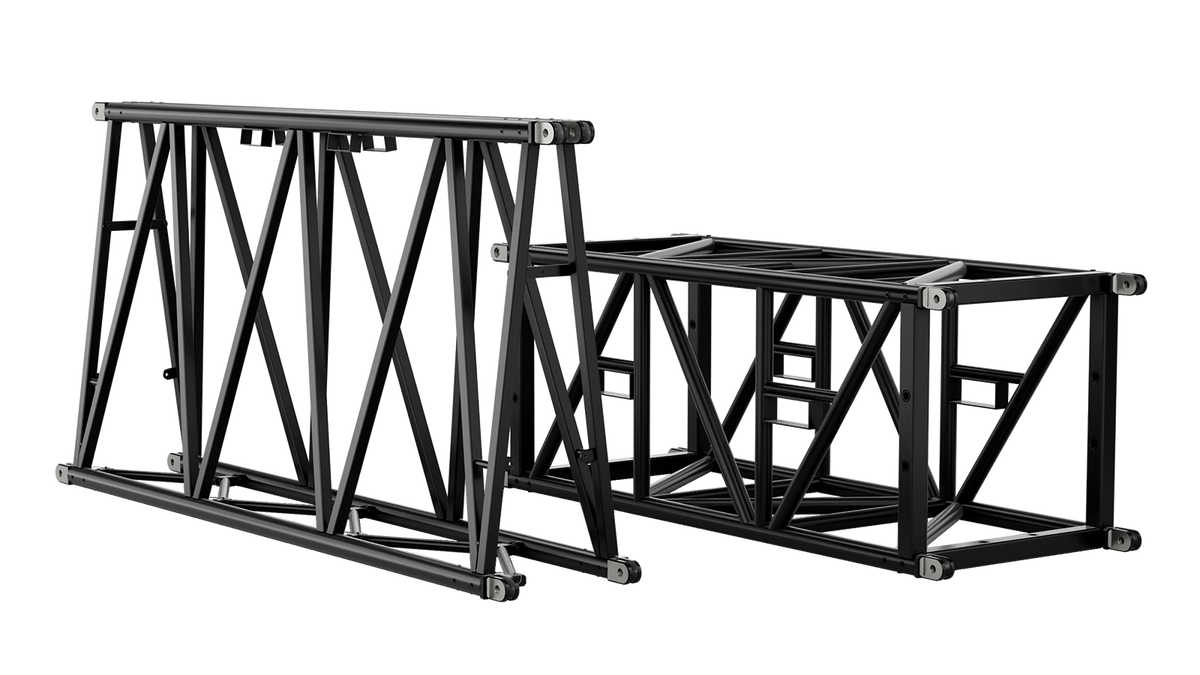

A wide range of trusses—from premium aluminum to ultra-high-strength steel beams.
Conical and Fork-end systems available
Robotic welding across most of our production ensures consistent quality in all aspects of delivery.
Sales support
| Versions available | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. span up to | 3m | 8m | 20m | 20m | 20m | 20m | 20m | 16m | 20m | 30m | 32m | 40m | 42m | 50m |
| UDL up to | 47kg(with 3m span) | 128kg(with 4m span) | 141kg(with 8m span) | 163kg(with 8m span) | 283kg(with 8m span) | 201kg(with 8m span) | 283kg(with 8m span) | 282kg(with 8m span) | 145kg(with 12m span) | 234kg(with 12m span) | 189kg(with 16m span) | 165kg(with 20m span) | 282kg(with 20m span) | 425kg(with 20m span) |
| Center Point Load up to | 70kg(with 3m span) | 234kg(with 4m span) | 563.7kg(with 8m span) | 797.7kg(with 8m span) | 1 087kg(with 8m span) | 802.7kg(with 8m span) | 1 133.5kg(with 8m span) | 1 129.1kg(with 8m span) | 871kg(with 12m span) | 1 402.3kg(with 12m span) | 1 509kg(with 16m span) | 2 490kg(with 20m span) | 2 538kg(with 20m span) | 4 461kg(with 20m span) |
| Width (mm) | 50 | 222 | 290 | 288 | 288 | 390 | 388 | 388 | 358 | 529 | 529 | 580 | 580 | 797 |
| Height (mm) | 50 | 222 | 290 | 288 | 388 | 390 | 388 | 388 | 358 | 529 | 771 | 1 110 | 1 110 | 1 298 |
| Weight kg (ca. per meter) | 1 | 2.22 | 5.05 | 6.11 | 6.84 | 5.5 | 6.77 | 8.26 | 9.97 | 12.86 | 17.6 | 25.7 | 26.16 | 35.14 |
| Main chord size (mm) | 50×2 | 32×1,5 | 50×2 | 48×3 | 48×3 | 50×2 | 48×3 | 48×3 | 50×4 | 50×4 | 50×4 | 60×6 | 60×6 | 60×8 |
| Brace size (mm) | N/A | 10×1,5 | 16×2; 20×2 | 16×2; 20×2 | 20×2 | 20×2 | 20×2 | 20×2 | 25×3 | 25×3 | 30×3 | 32×3 | 48×3 | 50×4 and 48×3 |
| Shortest segment length | 0.5 m | 0.5 m | 0.105 m | 0.105 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 0.5 m | 1 m | 1 m | 1 m | 1 m | 1 m |
| Longest segment length | 4 m | 4 m | 5 m | 5 m | 4 m | 5 m | 5 m | 5 m | 4 m | 4 m | 4 m | 4 m | 4 m | 5 m |
| Custom length option | ||||||||||||||
| Connection system | conical | conical | conical | conical | conical | conical | conical | conical | conical | conical | conical | conical | conical | conical |
| Static report | ||||||||||||||
| Certificate | ||||||||||||||
| Manual (EN 82079-1) | ||||||||||||||
| Standard colour | aluminium; black | aluminium | aluminium; black | aluminium; black | aluminium | aluminium | aluminium | aluminium | aluminium | aluminium | aluminium | aluminium | aluminium | aluminium |
| Optional colour | ||||||||||||||
| Identification label with serial number | ||||||||||||||
| Ceiling support | CS‑M222 | CS3B‑ADJ‑M290; CS‑M290/ | CS3B‑ADJ‑M290; CS‑M290/ | CS3B‑ADJ‑M290; CS‑M290/ | CS3B‑ADJ‑M390; CS‑M290/ | CS3B‑ADJ‑M390; CS‑M290/ | CS3B‑ADJ‑M390; CS‑M290/ | CS‑M290/ | CS‑M520/ | CS‑M520/ | CS‑M950 | CS‑M950 | ||
| Attachment and hanging point position | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | |
| Type of series (B, U..) | B; F; U | – | B; F; U | V; VF; VU | L; F | K; KF | L; LED; LF | – | – | – | – | – | – | – |
| Connector | CCB; CCF; CCU | CCM | CCB; CCF; CCU | CCB; CCF; CCU | CCB; CCF | CCB; CCF | CCB; CCF | CCB; CCF | CCO | CCO | CCO | CCO | CCO | CCR |
| Pin type | PB | PM | PB | PB | PB | PB | PB | PB | PO | PO | PO | PO | PO | PR |
| Material | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6060 T66) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) |
| Can be used with clamp series | 200, 400, 500, 600 | 130 | 200, 400, 500, 600 | 200, 400, 500, 600 | 200, 400, 500, 600 | 200, 400, 500, 600 | 200, 400, 500, 600 | 200, 400, 500, 600 | 200, 400, 500, 600 | 200, 400, 500, 600 | 200, 400, 500, 600 | 300 | 300 | 300 |
| Middle beam | ||||||||||||||
| Integrated ladder |
| Versions available | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. span up to | 18m | 20m | 42m | 30m | 24m | 35m | 40m | 45m | 50m | 60m |
| UDL up to | 360kg(with 8m span) | 236kg(with 12m span) | 226kg(with 20m span) | 163kg(with 16m span) | 164kg(with 16m span) | 314kg(with 20m span) | 495kg(with 20m span) | 673kg(with 20m span) | 925kg(with 30m span) | 1 094kg(with 30m span) |
| Center Point Load up to | 1 439.1kg(with 8m span) | 1 417.8kg(with 12m span) | 2 255.8kg(with 20m span) | 1 305kg(with 16m span) | 1 312.3kg(with 16m span) | 3 139kg(with 20m span) | 4 949kg(with 20m span) | 6 731kg(with 20m span) | 13 873kg(with 30m span) | 20 240kg(with 30m span) |
| Width (mm) | 347 | 500 | 1 017 | 617 | 617 | 530 | 786 | 585 | 776 | 768 |
| Height (mm) | 347 | 500 | 610 | 617 | 617 | 530 | 786 | 1 012 | 1 453 | 2 003 |
| Weight kg (ca. per meter) | 10.53 | 13.51 | 26.2 | 14.31 | 13.67 | 52 | 69.27 | 65 | 125.1 | 141.4 |
| Main chord size (mm) | 48×4,5 | 48×4,5 | 60×6 | 48×4,5 | 48×4,5 | 60.3×4 | 60.3×4 | 60.3×4 | 101.6×4 | 101.6×4 |
| Brace size (mm) | 25×3 | 32×3 and 25×3 | 48×4,5 | 32×3 and 25×3 | 25×3 | 33.7×2.6 | 48.3×3.2 | 48.3×3.2 | 60.3×4 | 60×60×4 |
| Shortest segment length | 0.39 m | 0.5 m | 1.2 m | 1.2 m | 1.2 m | 1 m | 1 m | 1 m | 1 m | 1 m |
| Longest segment length | 4.14 m | 4 m | 3 m | 3 m | 3 m | 6 m | 6 m | 6 m | 6 m | 6 m |
| Custom length option | ||||||||||
| Connection system | fork | fork | fork | fork | fork | fork | fork | fork | fork | fork |
| Static report | ||||||||||
| Certificate | ||||||||||
| Manual (EN 82079-1) | ||||||||||
| Standard colour | aluminium | aluminium | aluminium | aluminium | aluminium | black | black | black | black | black |
| Optional colour | ||||||||||
| Identification label with serial number | ||||||||||
| Ceiling support | ||||||||||
| Attachment and hanging point position | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points | as close as possible to node points |
| Type of series (B, U..) | – | – | – | – | – | – | – | – | – | – |
| Connector | – | – | – | – | – | – | – | – | – | – |
| Pin type | GS | GS | GX | GS | GS, GS-62F | PQ | PQ | PQ | PW | PW |
| Material | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | aluminium(EN - AW 6082 T6) | steel(main chord S700) | steel(main chord S700) | steel(main chord S700) | steel(main chord S900) | steel(main chord S900) |
| Can be used with clamp series | 200, 400, 500, 600 | 200, 400, 500, 600 | 300 | 200, 400, 500, 600 | 200, 400, 500, 600 | – | – | – | – | – |
| Middle beam | ||||||||||
| Integrated ladder |

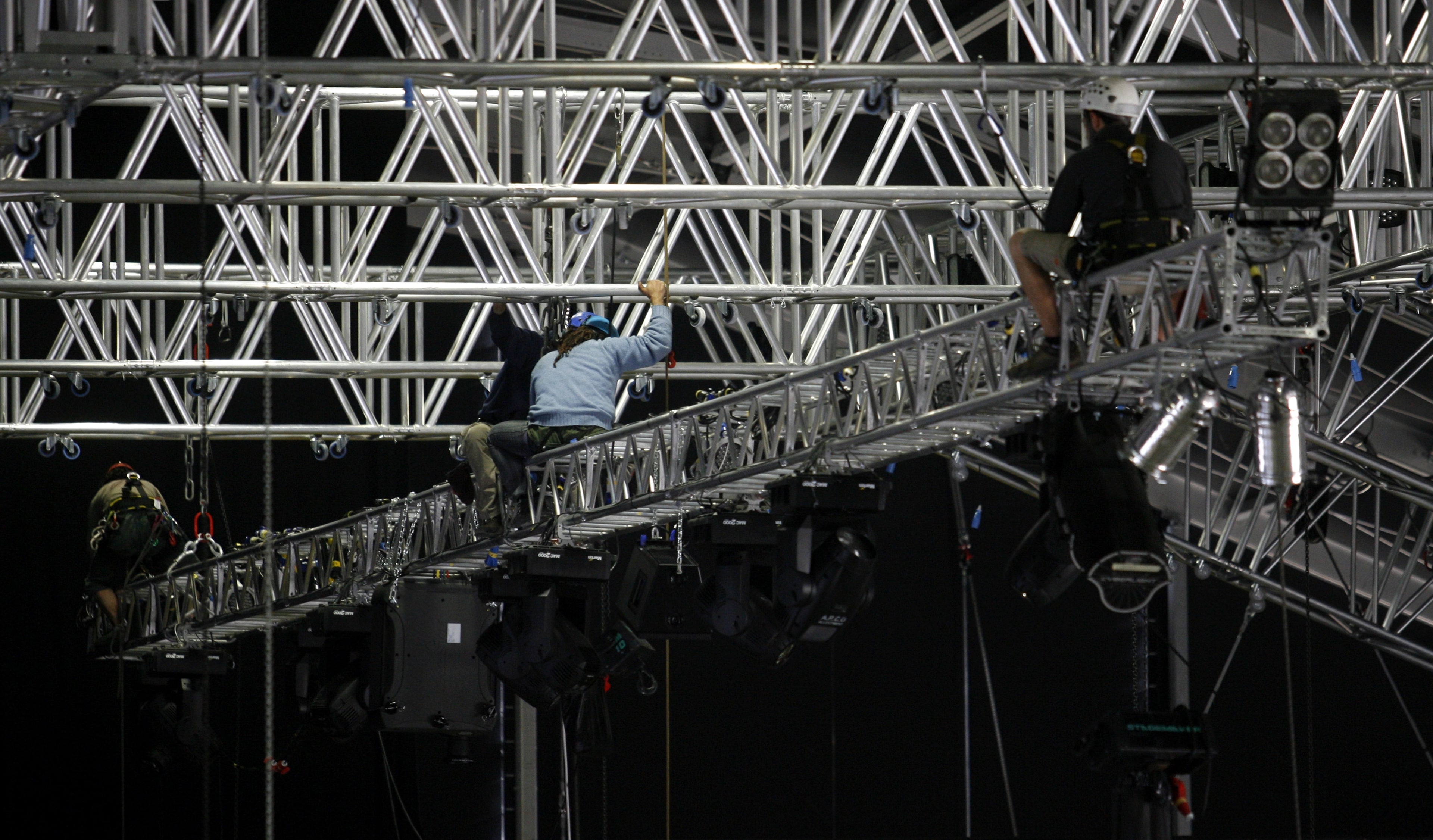

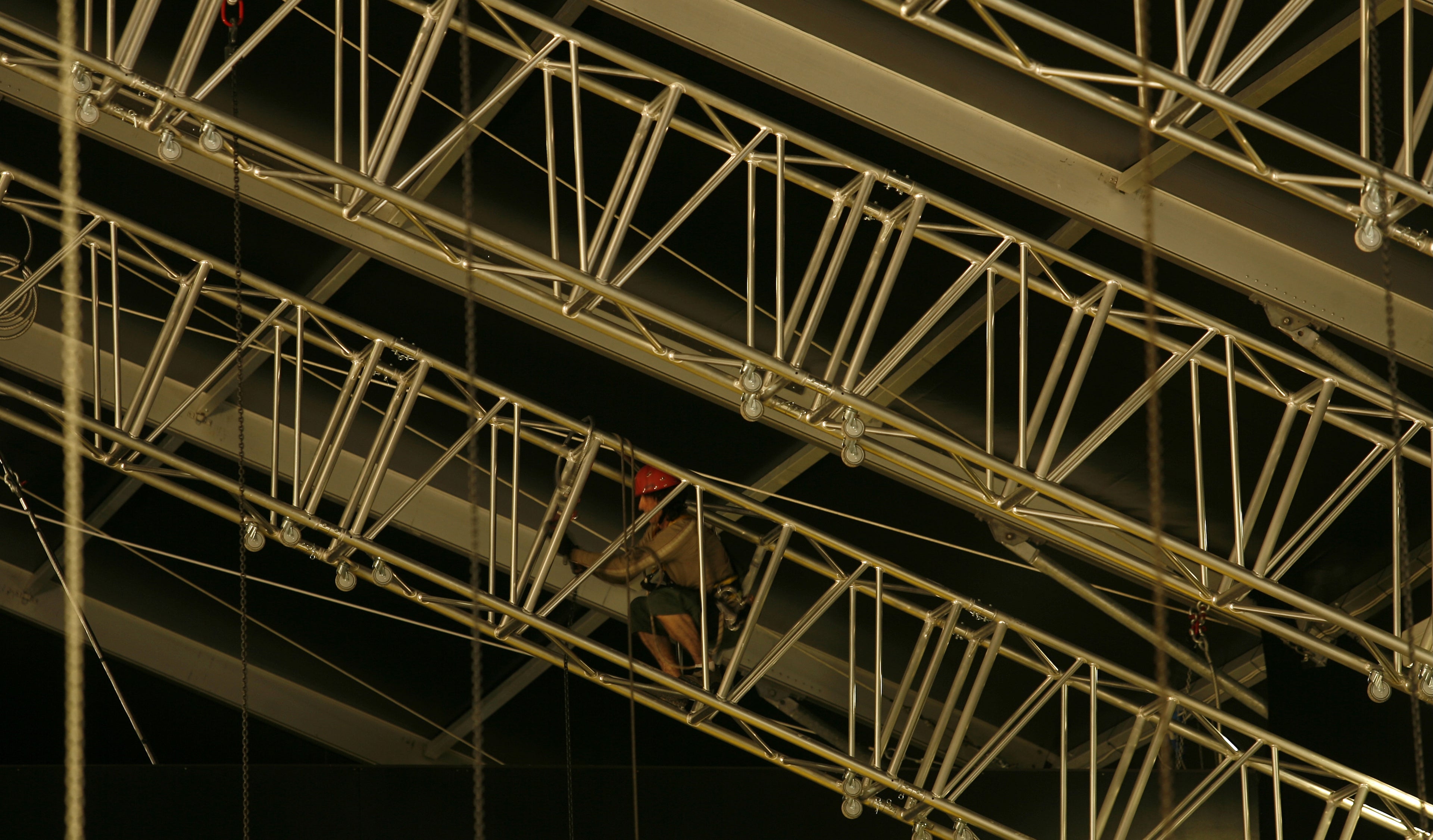

Truss systems are used to support lighting, LED screens, audio equipment, banners, and other technical or decorative elements in live events, exhibitions, sports venues, theatres, and permanent installations.

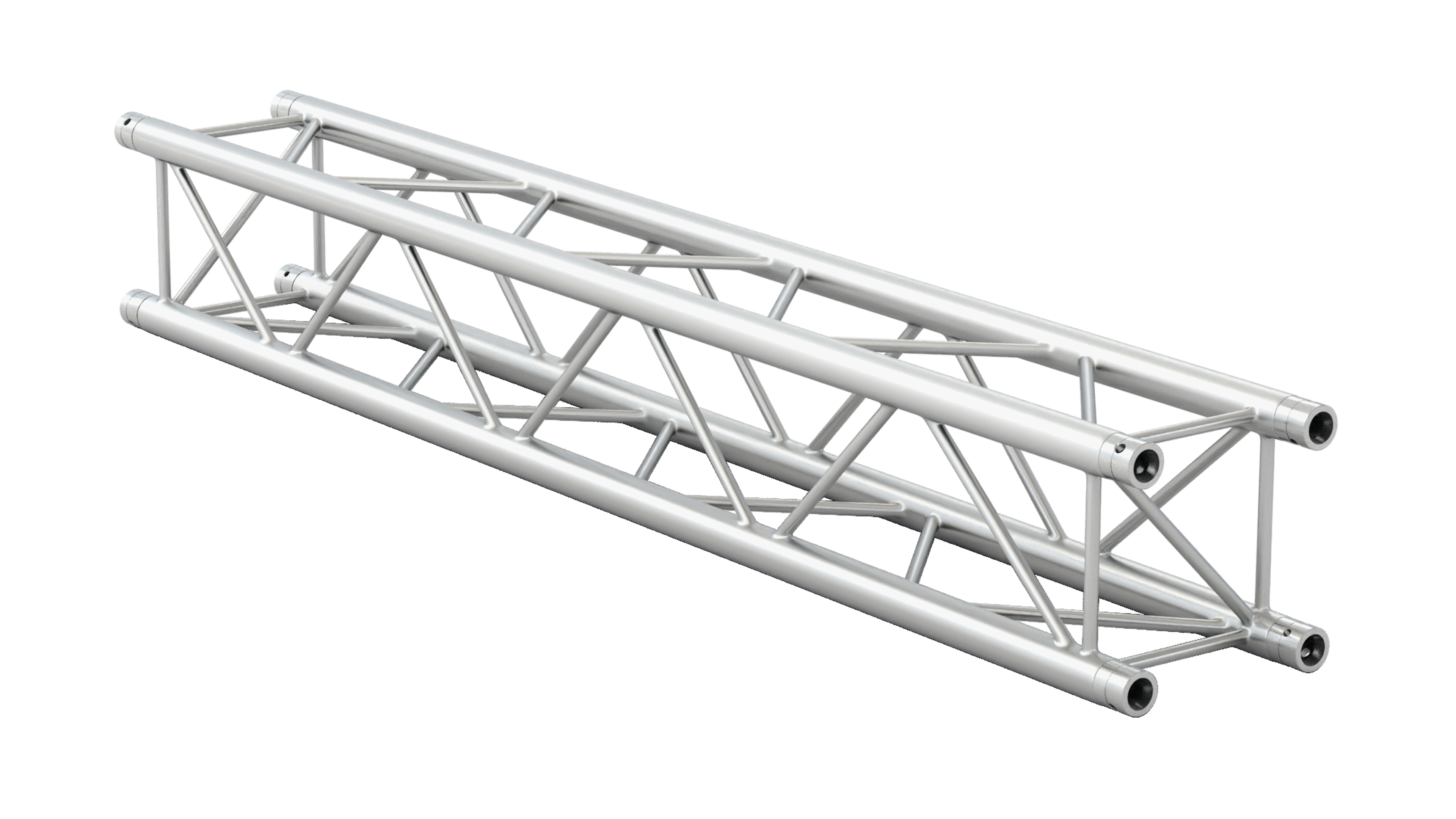

Aluminium trusses offer a high strength-to-weight ratio, making them easy to transport, assemble, and handle while maintaining excellent load-bearing performance. Aluminium is also naturally corrosion resistant.
The right truss depends on span, load requirements, application type, and structural conditions. Our team can help you select the most suitable system for your project.
MILOS trusses are available with conical or fork connection systems, depending on the truss series and application requirements.
Main tube diameters vary depending on the truss series, ranging from compact profiles for lighter applications to heavy-duty solutions for large-scale structures.
MILOS truss systems are manufactured according to strict quality standards and are supported by technical documentation, load tables, and structural calculations. Most MILOS truss ranges are also TÜV certified.
Yes. MILOS truss systems are suitable for both temporary events and permanent installations in venues, studios, theatres, and public spaces.
Yes. We provide load tables, technical specifications, structural calculations, and simplified 3D CAD models to support safe and accurate project design.
Yes. MILOS products are distributed and shipped worldwide through our international network.
Delivery times depend on product availability, order size, and destination. Standard products are typically available faster, while custom solutions may require longer lead times.
Yes. In addition to standard sizes, custom truss lengths can be manufactured based on project requirements.
Standard trusses are supplied in natural aluminium finish or with a black highly resistant powder coating. Other colours are available on request.
Yes. Regular inspections help ensure structural safety, detect wear or damage, and maintain long-term reliability. Please contact our customer service for an offer.
Yes. MILOS provides training focused on safe assembly, handling procedures, and best practices for truss systems. You can apply for A4I Riggers Academy or MILOS Product Academy (links). You can also watch our A4I.TV channel.
Proper handling, storage, regular inspection, and correct usage help extend the lifespan and safety of aluminium truss systems.
Load capacity depends on the truss type, span length, support conditions, and load distribution. Always refer to the user manual, official load tables, and engineering data.
For safety and compliance reasons, we strongly recommend not mixing trusses or components from different manufacturers. If such a combination is considered, compatibility must be properly verified before use.
Trusses are widely used in live events, exhibitions, broadcasting, theatre, sports, retail environments, and architectural installations.
Aluminium offers an optimal balance of strength and low weight, making it ideal for transportable and modular structures.
With proper use, maintenance, and inspection, aluminium trusses can last for many years, even under frequent professional use.
MILOS offers base plates, corners, junctions, hinges, adapters, brackets, dollies, lifting accessories, and dedicated transport and storage solutions to support transport, assembly, and installation.
Damage can be prevented by proper handling and use, correct transport methods, protective accessories, and following recommended assembly procedures.

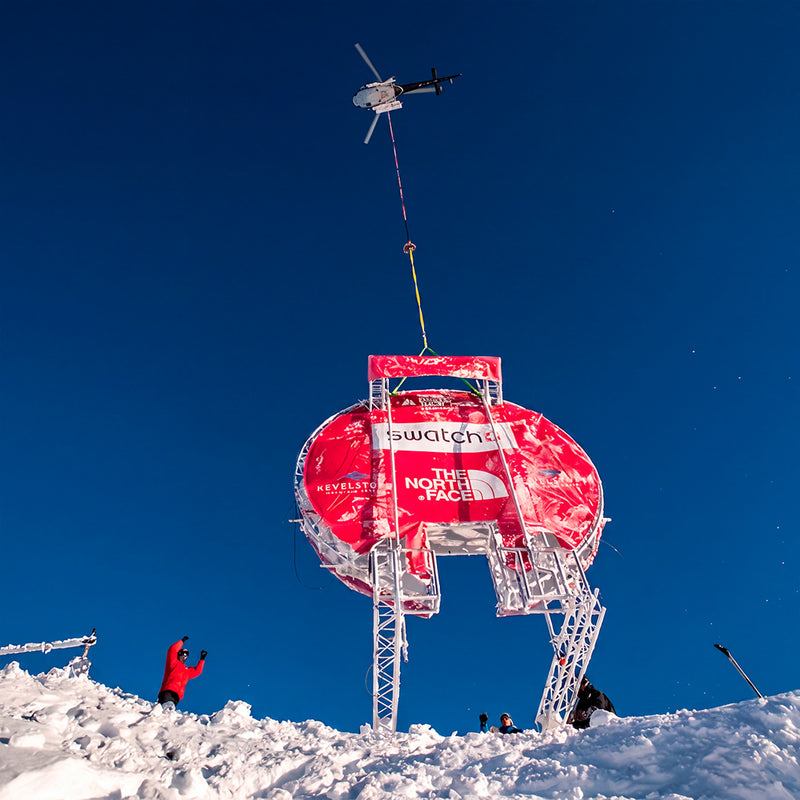

Yes. MILOS trusses are suitable for outdoor use such as festivals and concerts. Wind loads, weather conditions, and safety regulations must always be considered during design and installation.
Yes. A user manual is provided with MILOS truss systems. It includes important information for owners, providers, trained riggers, and anyone working safely with truss systems.

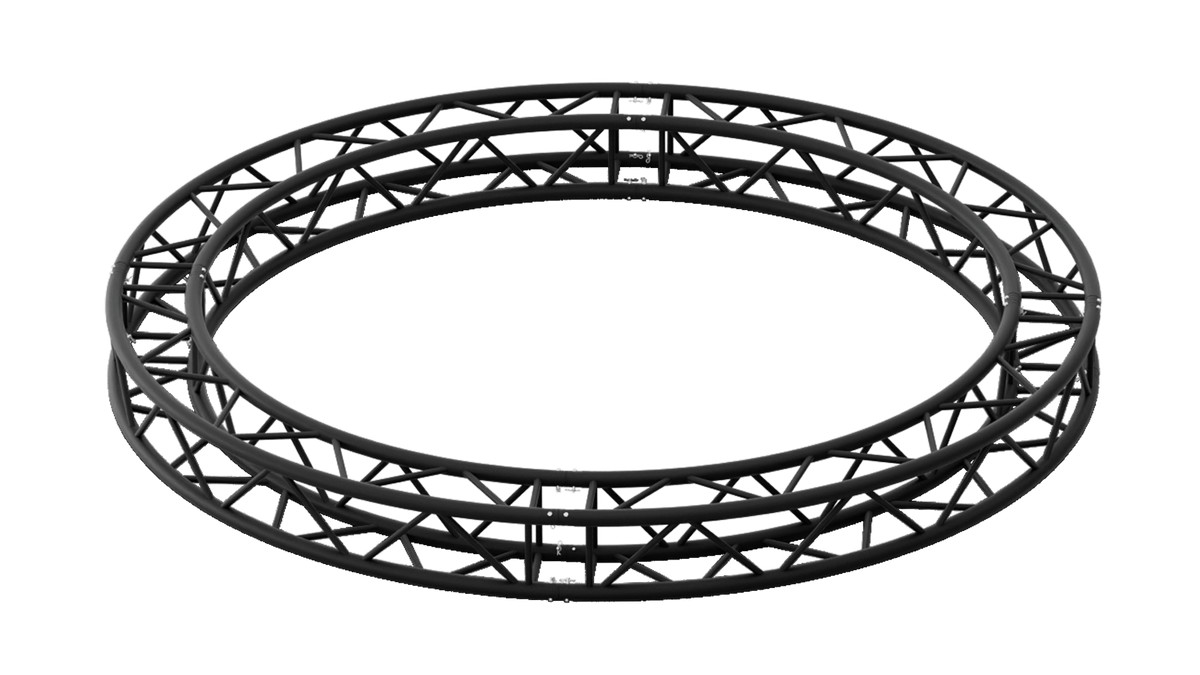

Truss circles are used to create circular, curved, or decorative structures for lighting, video displays, stage design, exhibitions, and architectural applications.
Yes. Circle truss systems are available in various diameters depending on the truss series and project requirements. Please contact our sales team to discuss available options for your project.
Yes. Truss circles can be suspended from roof structures, trusses, or other support systems, provided the installation is designed according to the applicable load requirements.
Yes. We offer dedicated transport and storage solutions for circular trusses, including transport frames and the Truss Dolly-CRS, designed to simplify handling, storage, and logistics.
Yes. Truss circles can support lighting fixtures, loudspeakers, LED screens, and other equipment within the specified load limits.
Circle trusses use the same conical connection system as the corresponding straight truss ranges, ensuring compatibility within the same system family.
Yes. Depending on the project requirements, custom diameters, arcs, and special circular configurations may be available.
Yes. Truss circles can be used in load-bearing applications when designed and installed according to the relevant technical specifications and load data.
Yes. Circle trusses are suitable for outdoor use such as festivals, concerts, and installations. Wind loads, weather conditions, and safety regulations must always be considered during design and installation.
Truss circles are manufactured from high-strength aluminium alloys, providing durability, low weight, and excellent structural performance.
Yes. Truss circles are designed to integrate with compatible straight truss systems from the same product range.
Yes. Technical specifications, drawings, and load information are available to support project planning and installation.
Yes. Truss circles can be used in permanent installations where their design and load characteristics meet the project requirements.

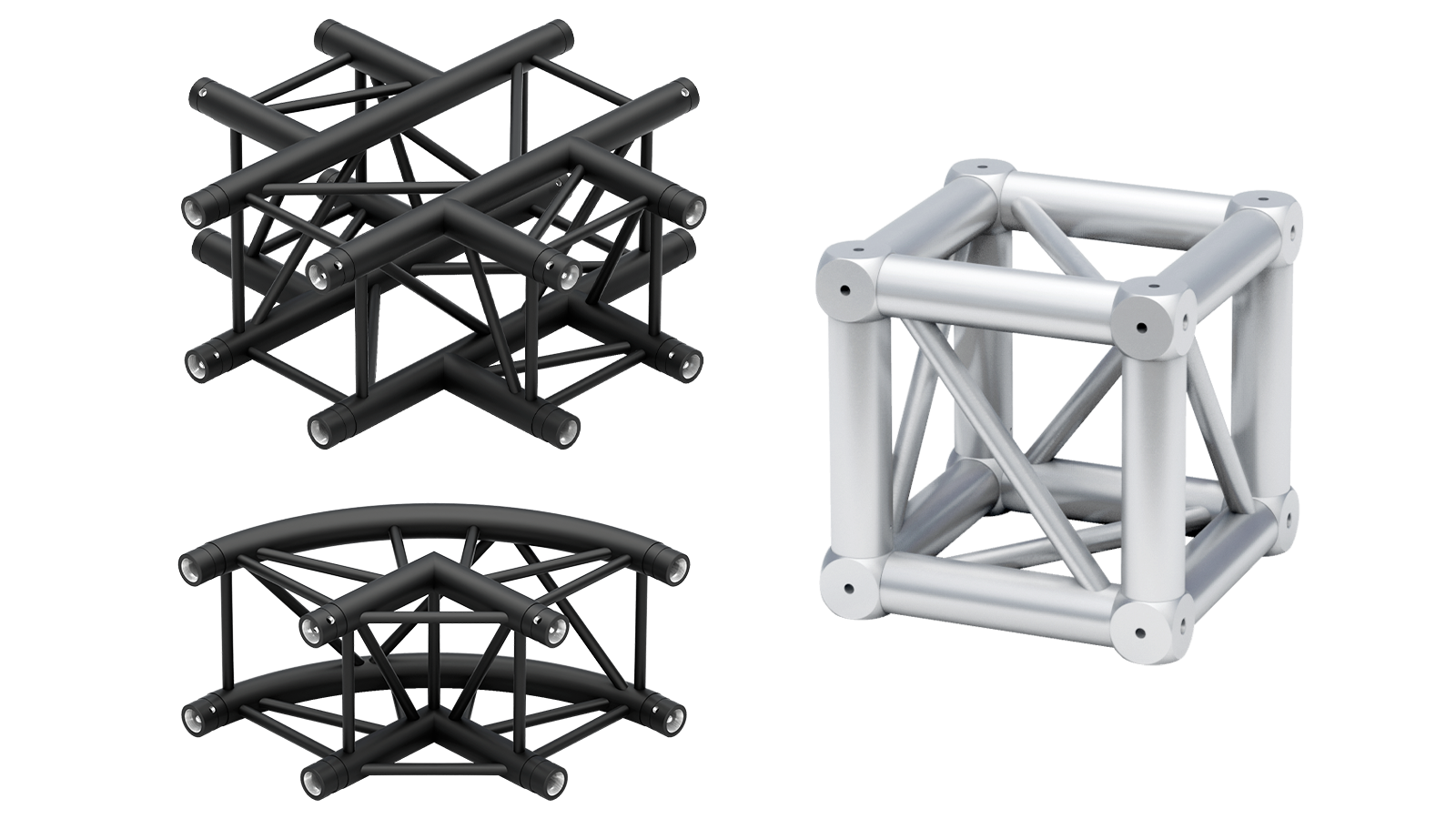

Truss corners are used to connect truss sections at different angles, allowing the creation of frames, structures, and spatial designs in stages, events, and installations.
Truss corners are available in a wide range of standard angles, with custom angles also available depending on project requirements.
Yes. We can produce special custom-made truss corners with non-standard angles and lengths to fit specific design and structural needs.
Truss corners are available for most MILOS truss series. In addition to standard catalogue solutions, we also offer custom-made corners to match specific project requirements, including non-standard geometries and hybrid configurations.
Both truss corners and truss cubes are used to connect truss sections and create structural frameworks. Truss cubes offer greater flexibility by allowing up to six truss sections to connect at a single point and generally provide higher stiffness and strength. Truss corners are typically used where a defined number of connections and fixed angles are required.
Truss cubes are ideal when multiple truss directions need to meet at one point, while corners are better for linear frame structures with defined angles.
Yes. Truss corners are widely used in both temporary event structures and permanent architectural or technical installations.
Load capacity depends on the configuration, span, and support conditions. Engineering design should always define safe working limits.
Truss corners are connected using standard truss connector systems such as conical or fork connections, depending on the system type.
Yes. Truss corners are available in various dimensions and truss system profiles to match different structural requirements.
Yes. They are suitable for outdoor use in festivals, concerts, and installations, provided environmental conditions are considered in the design.
Yes. Truss corners are often used together with straight trusses and cubes to create complex three-dimensional structures.
Yes. Truss circles can be used in permanent installations where theTruss corners are supplied in natural aluminium finish or with a black highly resistant powder coating. Other colours are available on request.ir design and load characteristics meet the project requirements.
