The MILOS LED Trailer is a high-performance, portable display solution designed for maximum visibility and safety.

Height
max 6.3 m
Size
Screen 5.0 x 3.0 m
Self Weight
3500 kg
MILOS LED TRAILER

Detailed information

Estimated availability of the MILOS LED Trailer - 3Q 2025

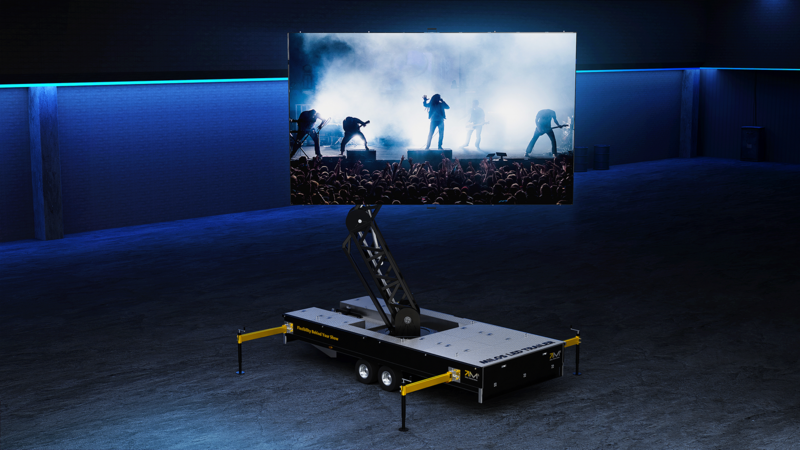

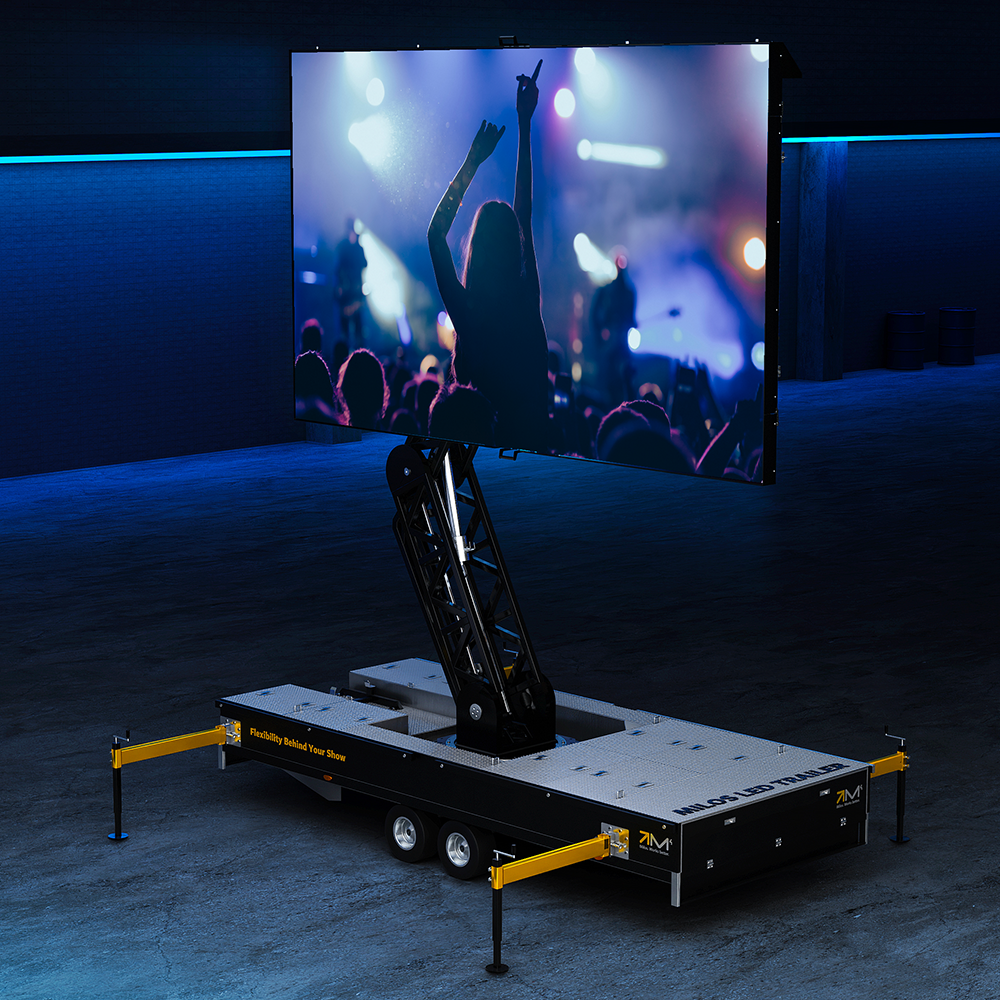

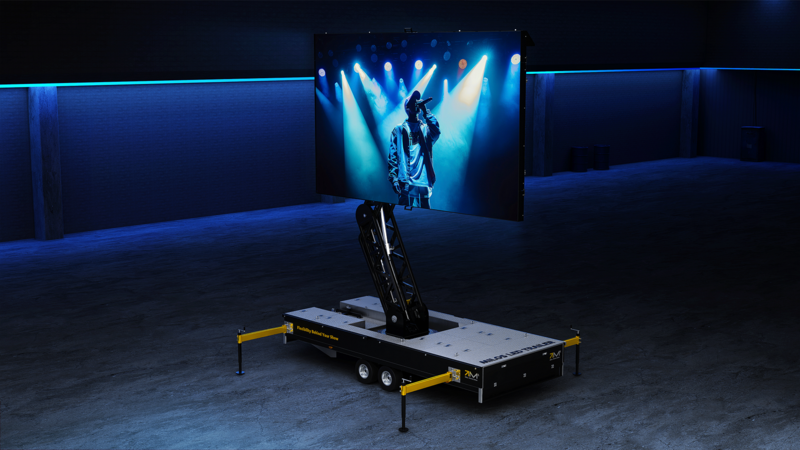

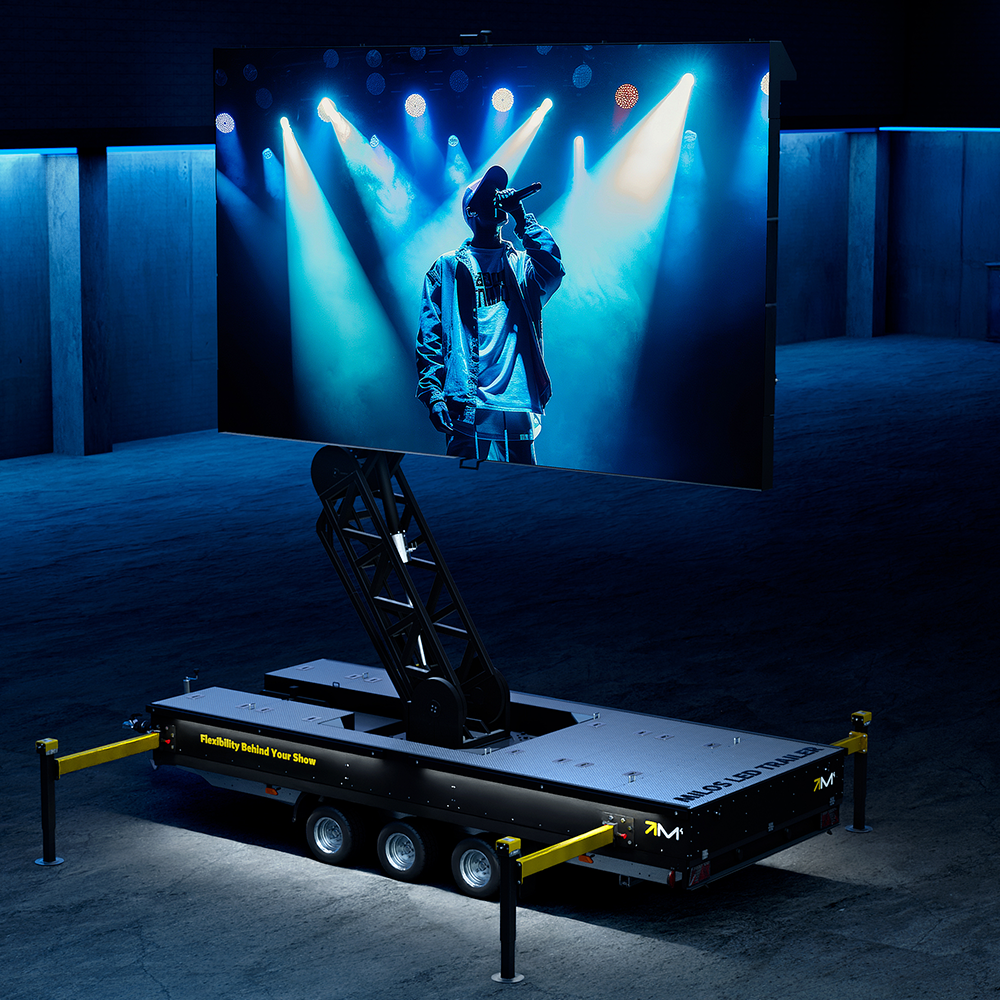

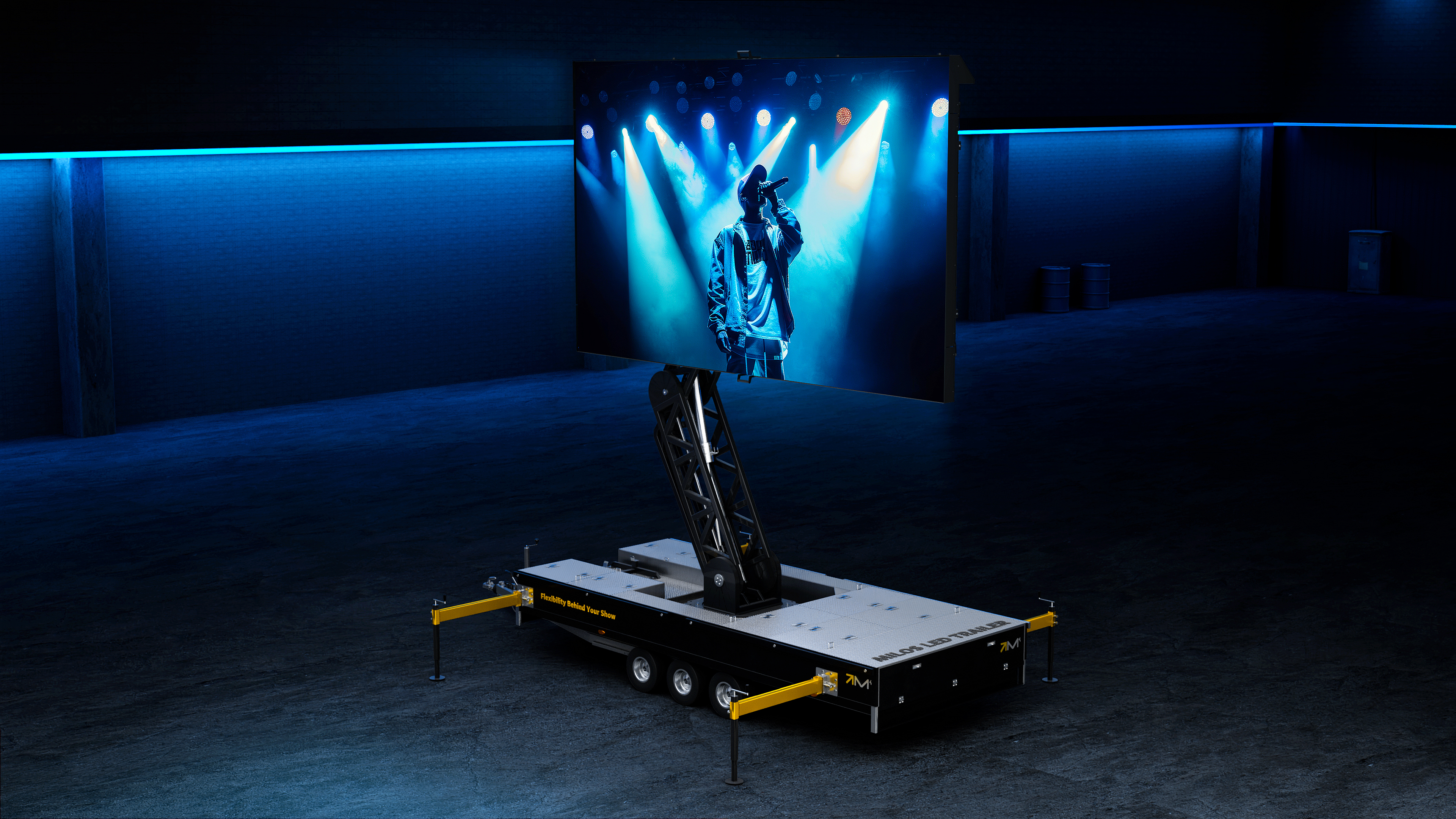

The MILOS LED Trailer is a high-performance, portable display solution designed for maximum visibility and safety. Designed for easy transport and set-up, it features a powerful LED screen mounted on a robust trailer structure, making it ideal for outdoor events with large crowds. The LED Trailer ensures a reliable, energy-efficient display while prioritising safety with stable operation and secure set-up, providing both durability and ease of use.

Screen

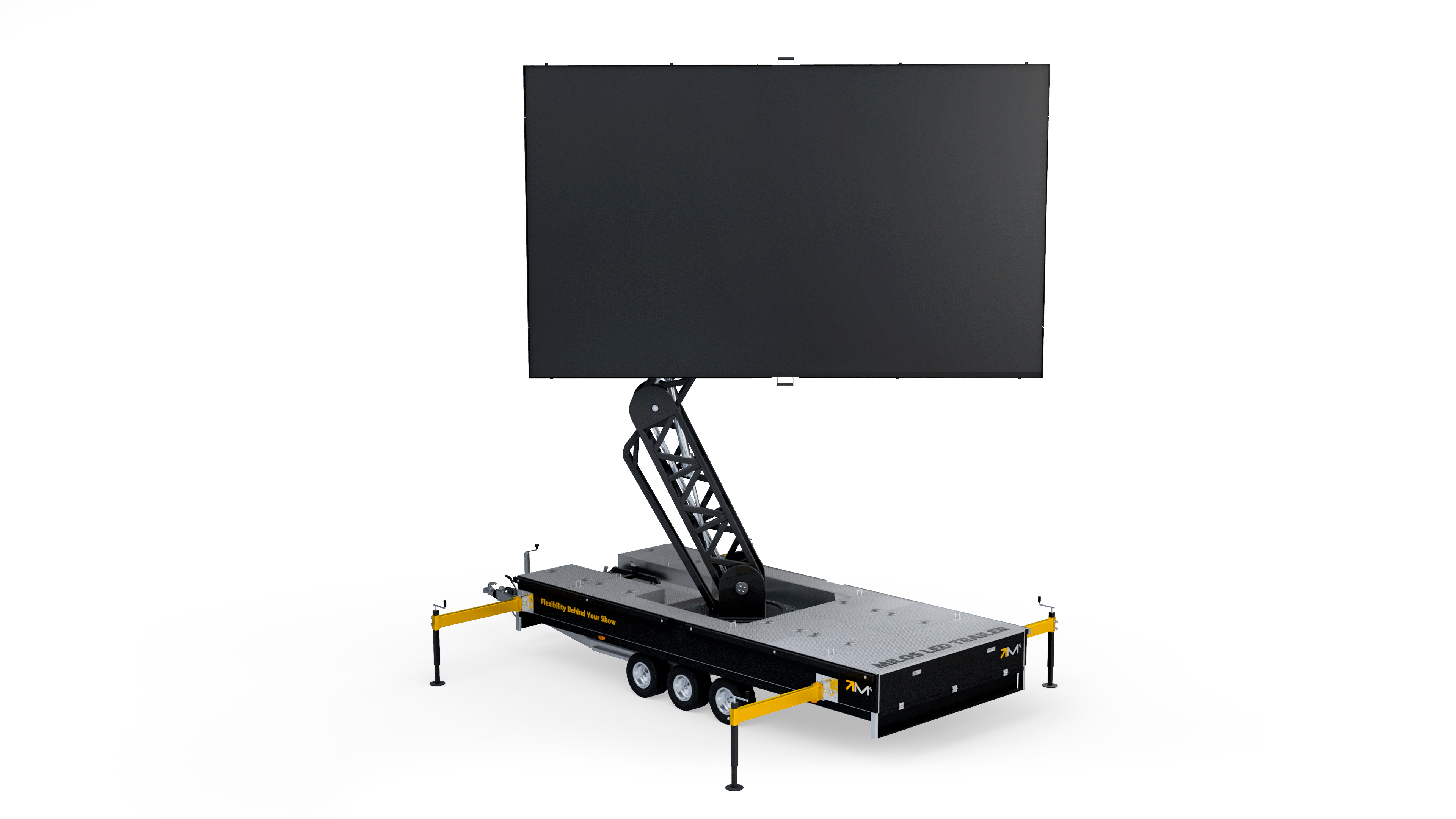

  • Size: The screen measures 5.0 × 3.0 meters, offering a large display area for impactful visuals.

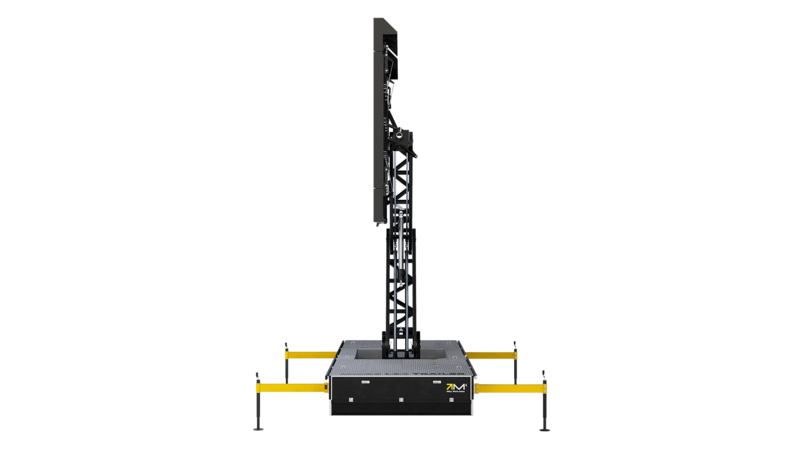

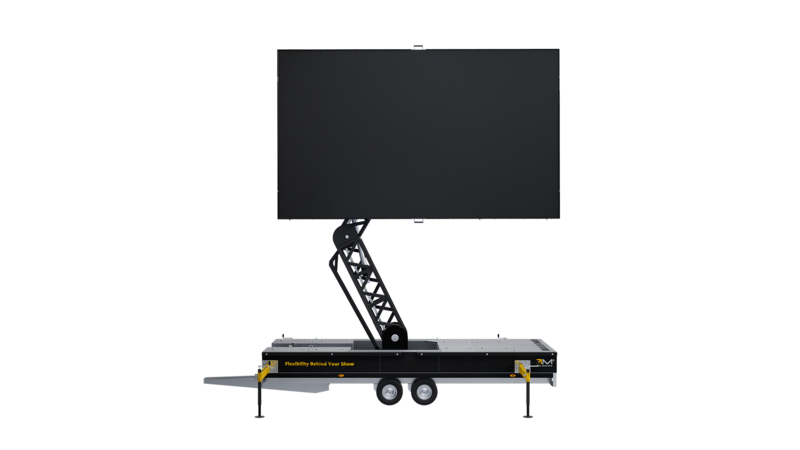

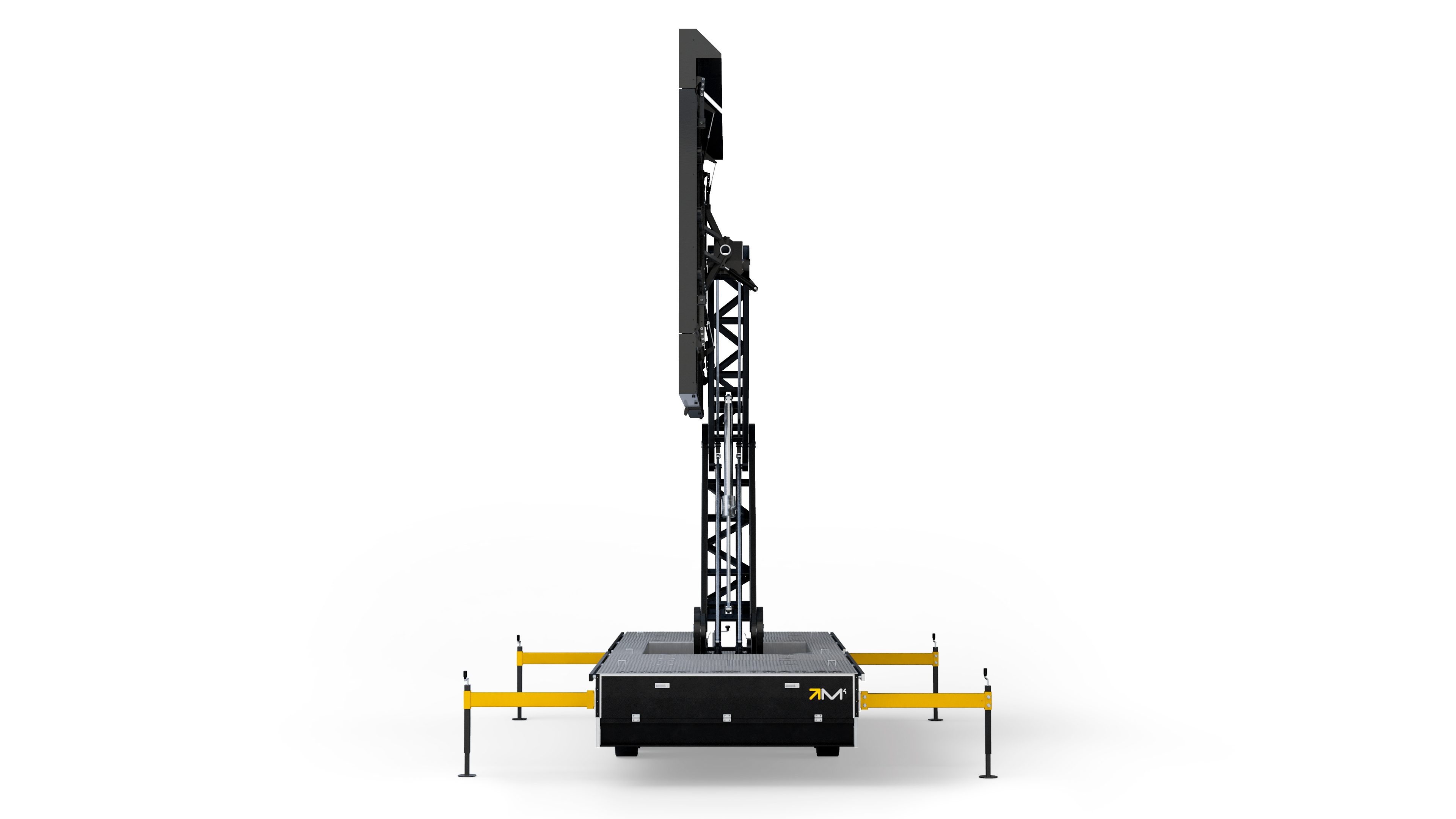

  • Height adjustable: : Features a motorized lifting system that allows adjustment up to a maximum height of 6.3 m. The hydraulic system offers automatic locking in any position

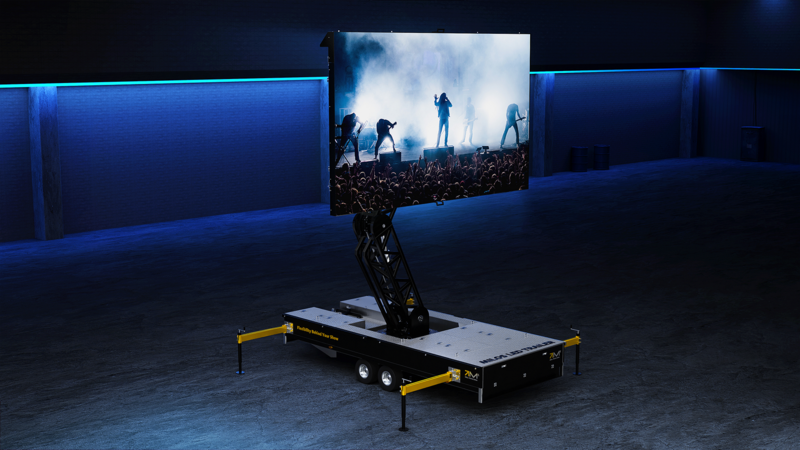

  • Rotating screen: The screen can be rotated 340° around itsvertical axis, ensuring optimal visibility and adaptability to challenging site conditions.
    .


Simplified set-up and transport

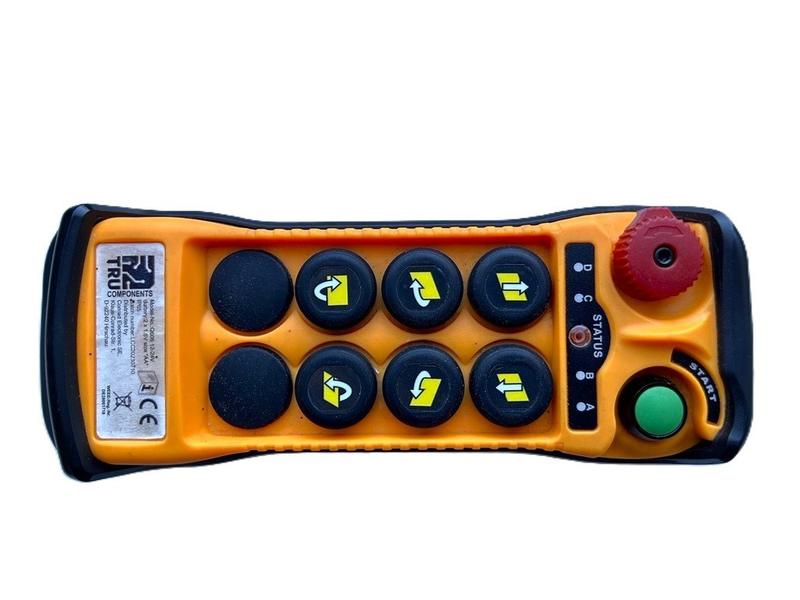

  • User-friendly operation: A portable control panel, operable wirelessly or via cable, makes screen unfolding and folding safe and efficient. The entire process can be managed by a single person.

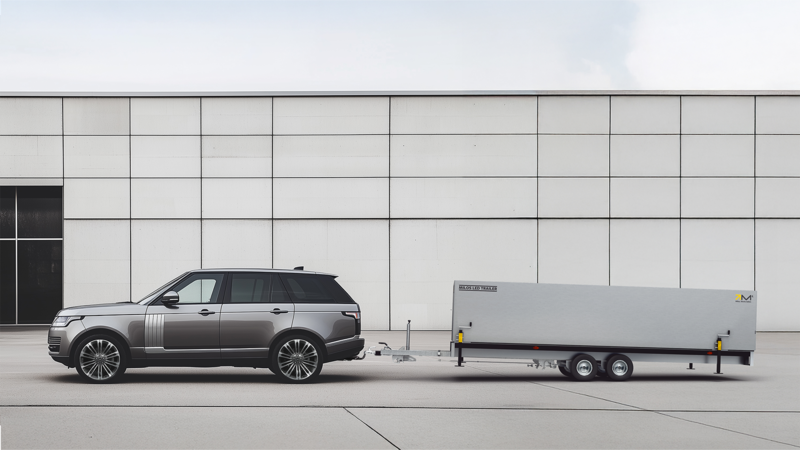

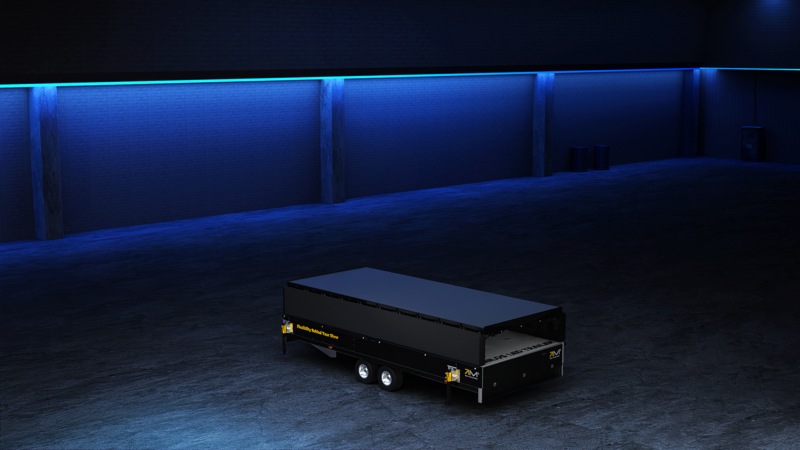

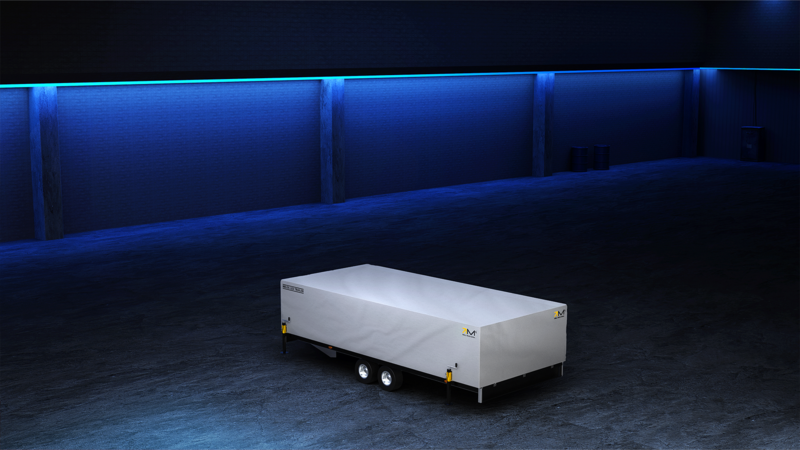

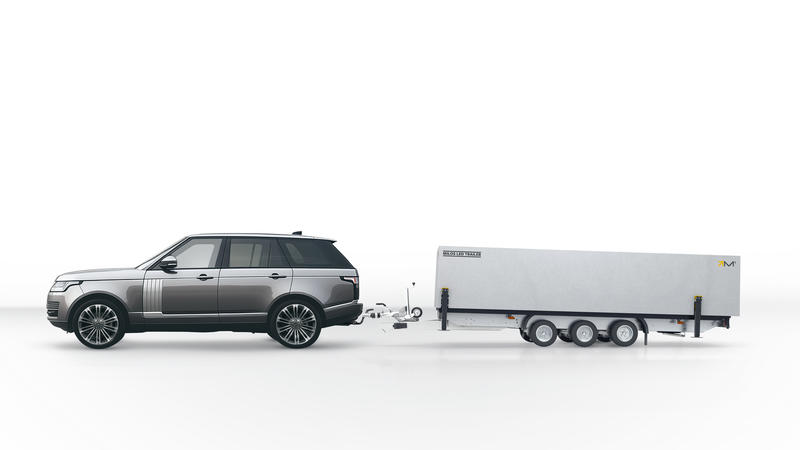

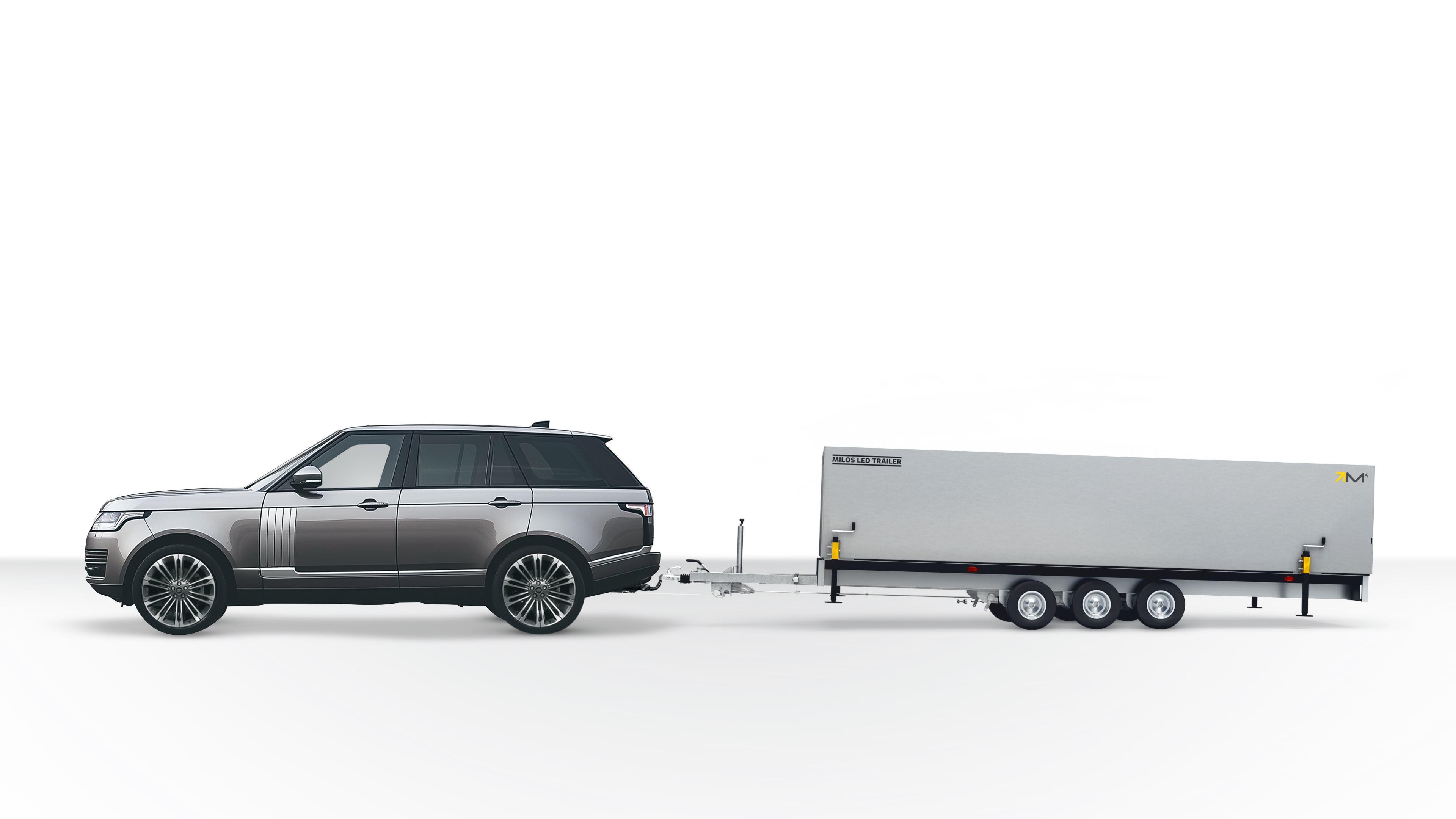

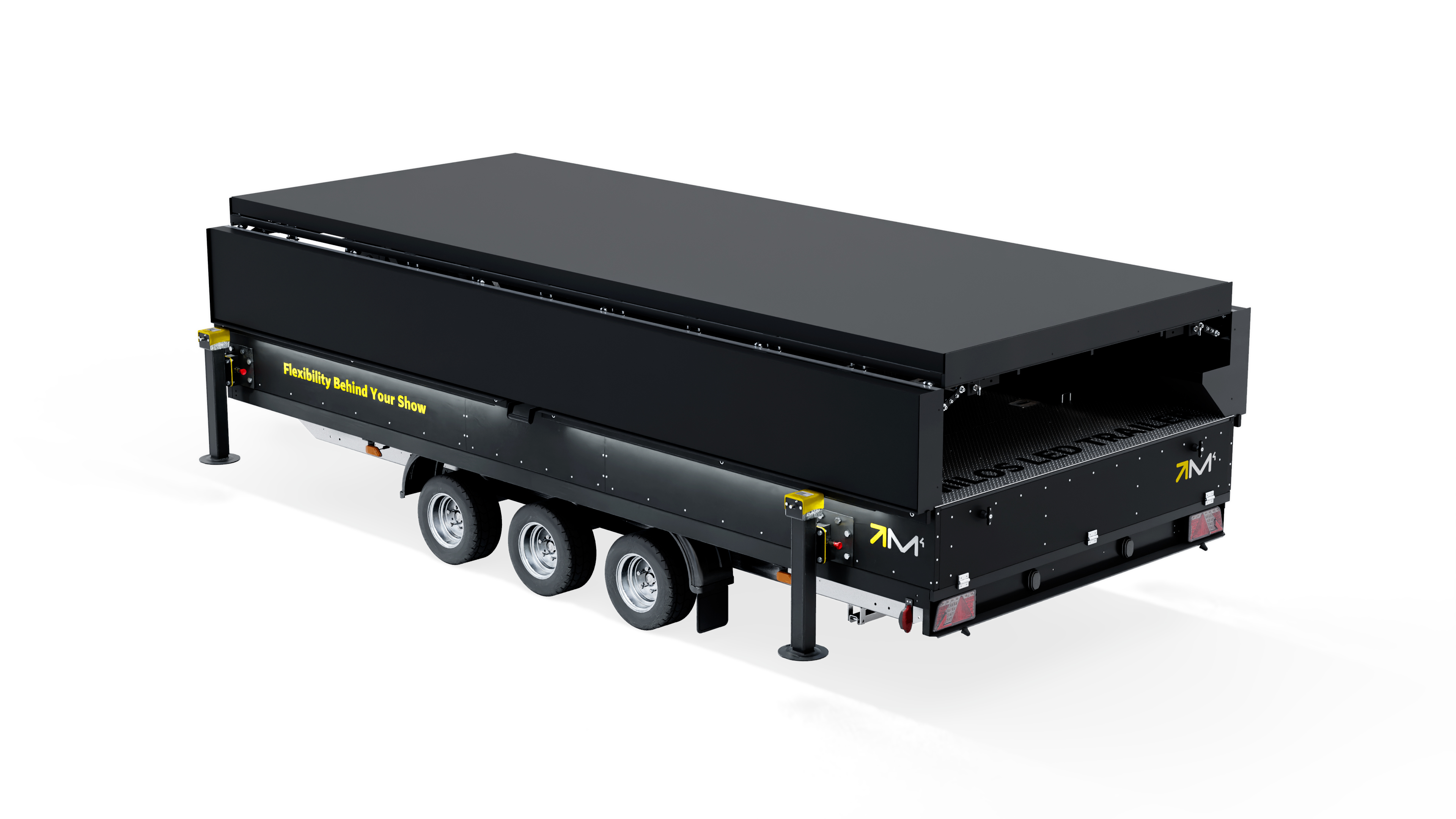

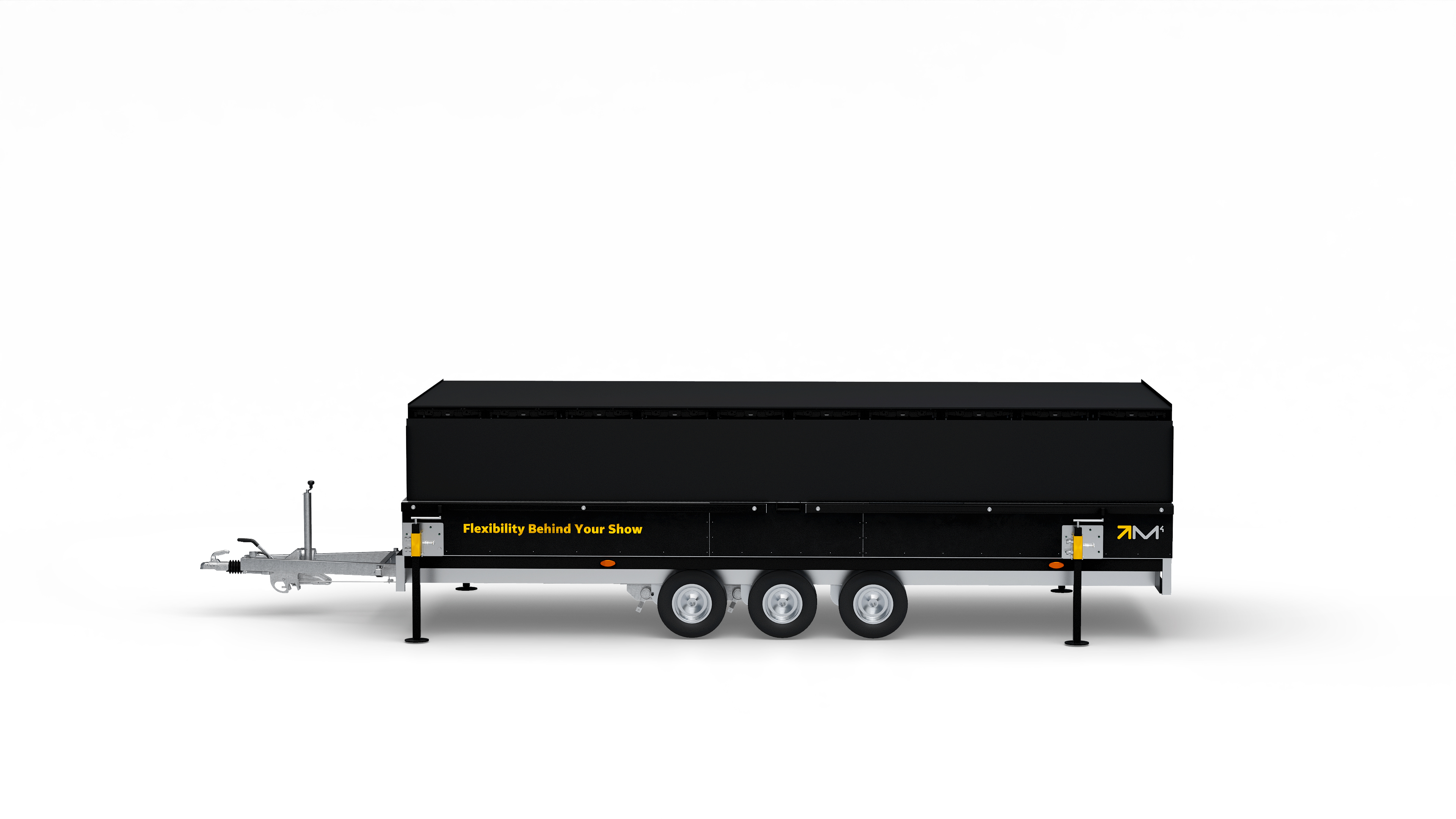

  • Compact design: The trailer's aerodynamic, compact folded shape ensures low ground clearance of just 1.6m, contributing to stability during transport.
  • Quick setup: The straightforward design minimizes preparation time, making it ideal for rapid deployments.


Wind resistance

  • Certified strength: The MILOS LED Trailer is EN 13814-certified to withstand winds up to 64 km/h, with a safety margin allowingoperation in conditions up to 76.8 km/h (Beaufort n. 8).

Safety

  • Braking system: The MILOS LED Trailer is automatically braked by SITEMA in any position
  • Emergency protocol: An emergency hydraulic circuit allows system folding during power failures, minimising risks.
  • Enhanced safety standards: Certified for public events, the LED Trailer meets stringent safety requirements




Technical Specifications

  MILOS LED trailer

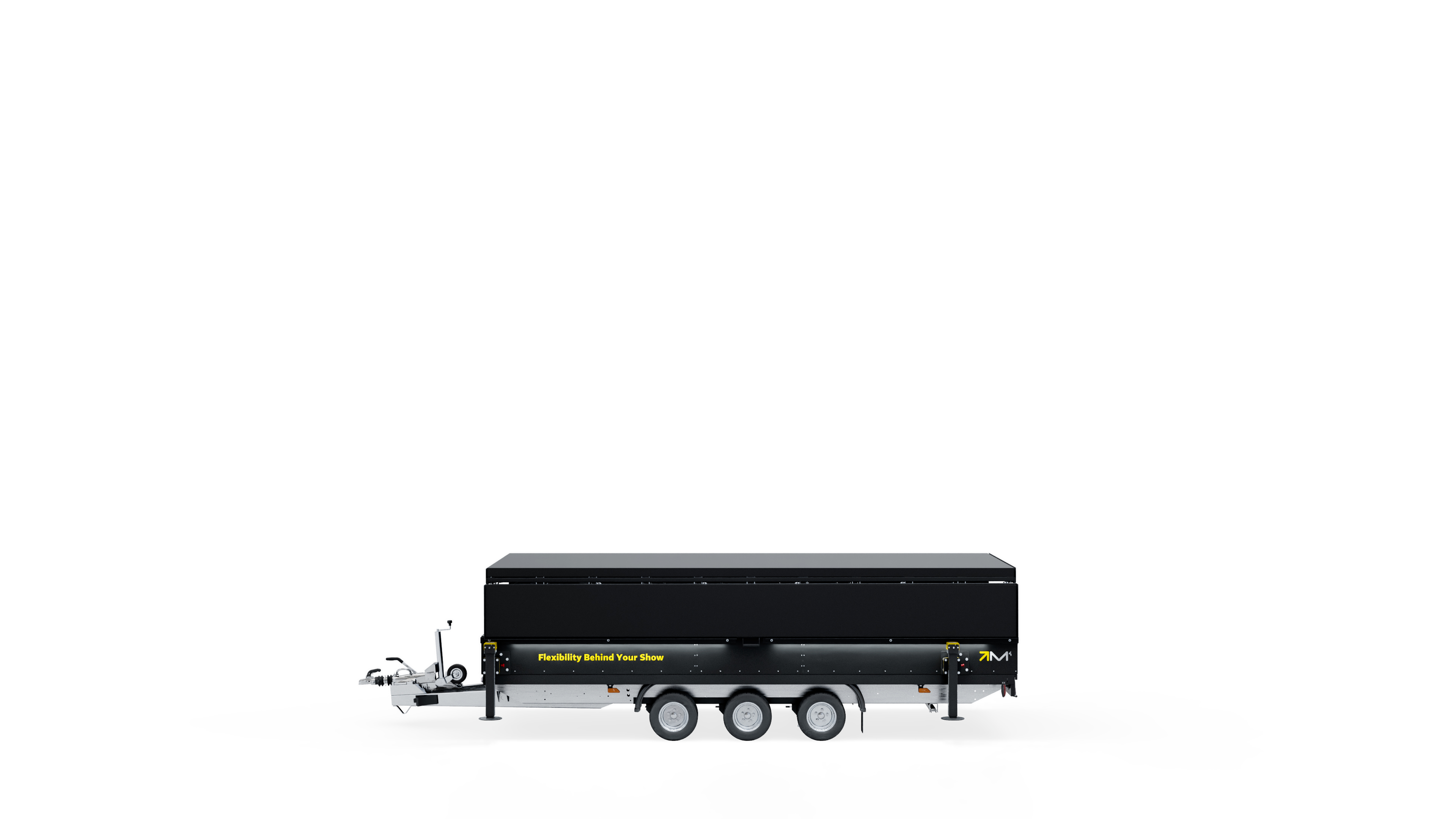

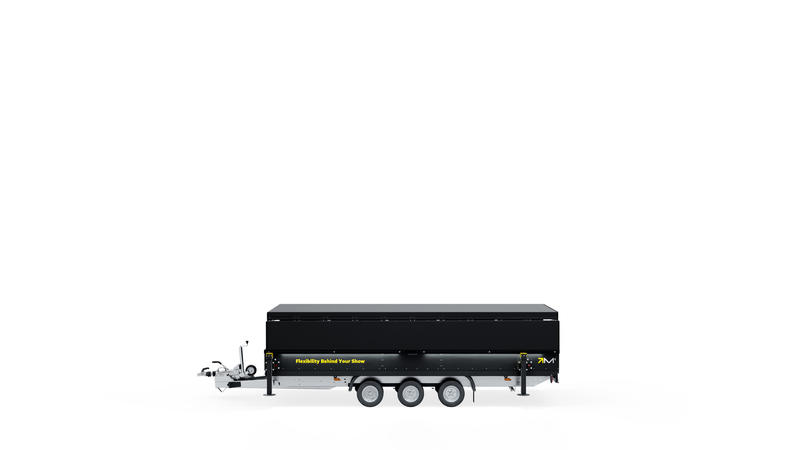

Dimensions of the folded system 6,5 x 2,4x 1,6 m

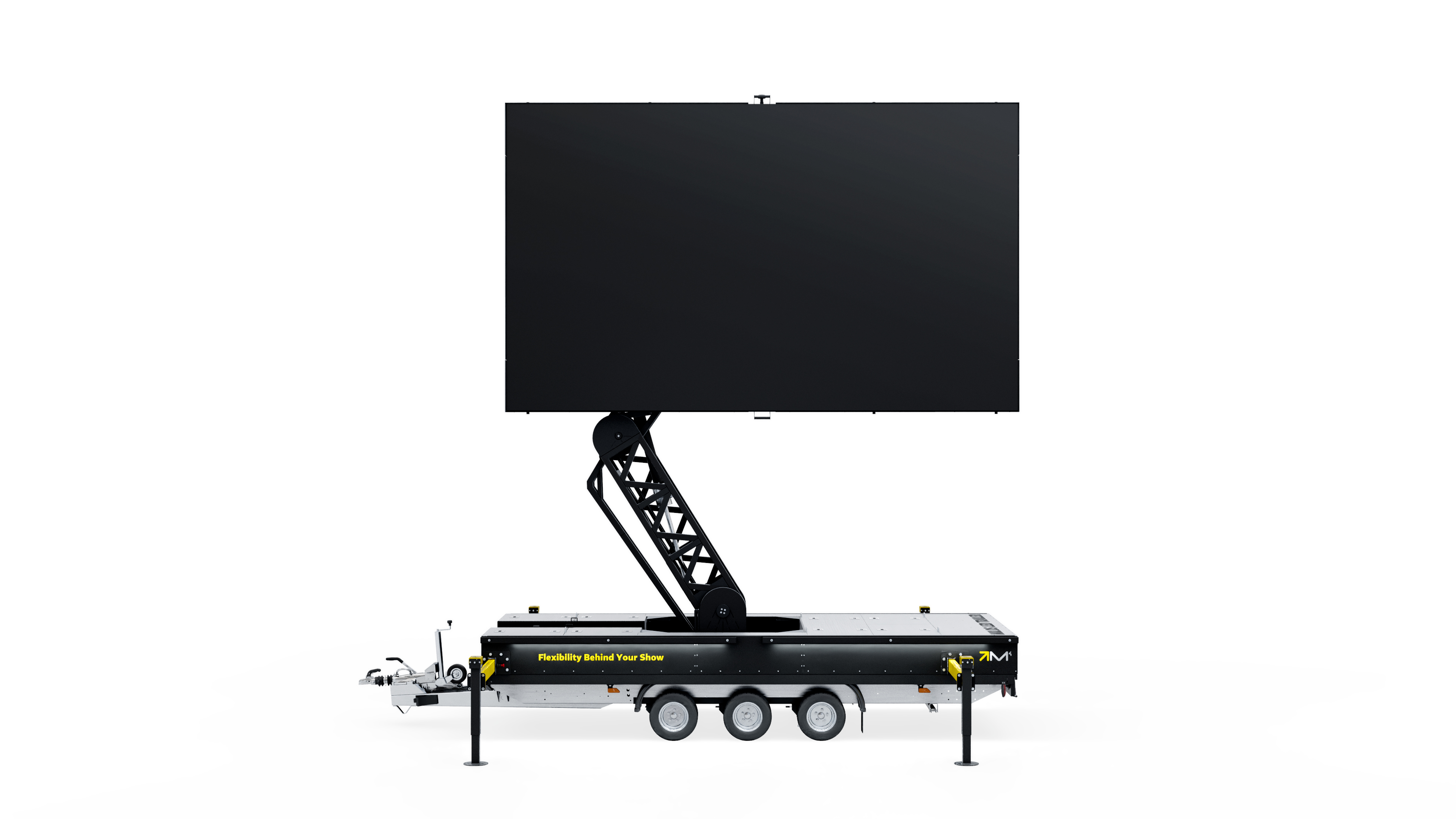

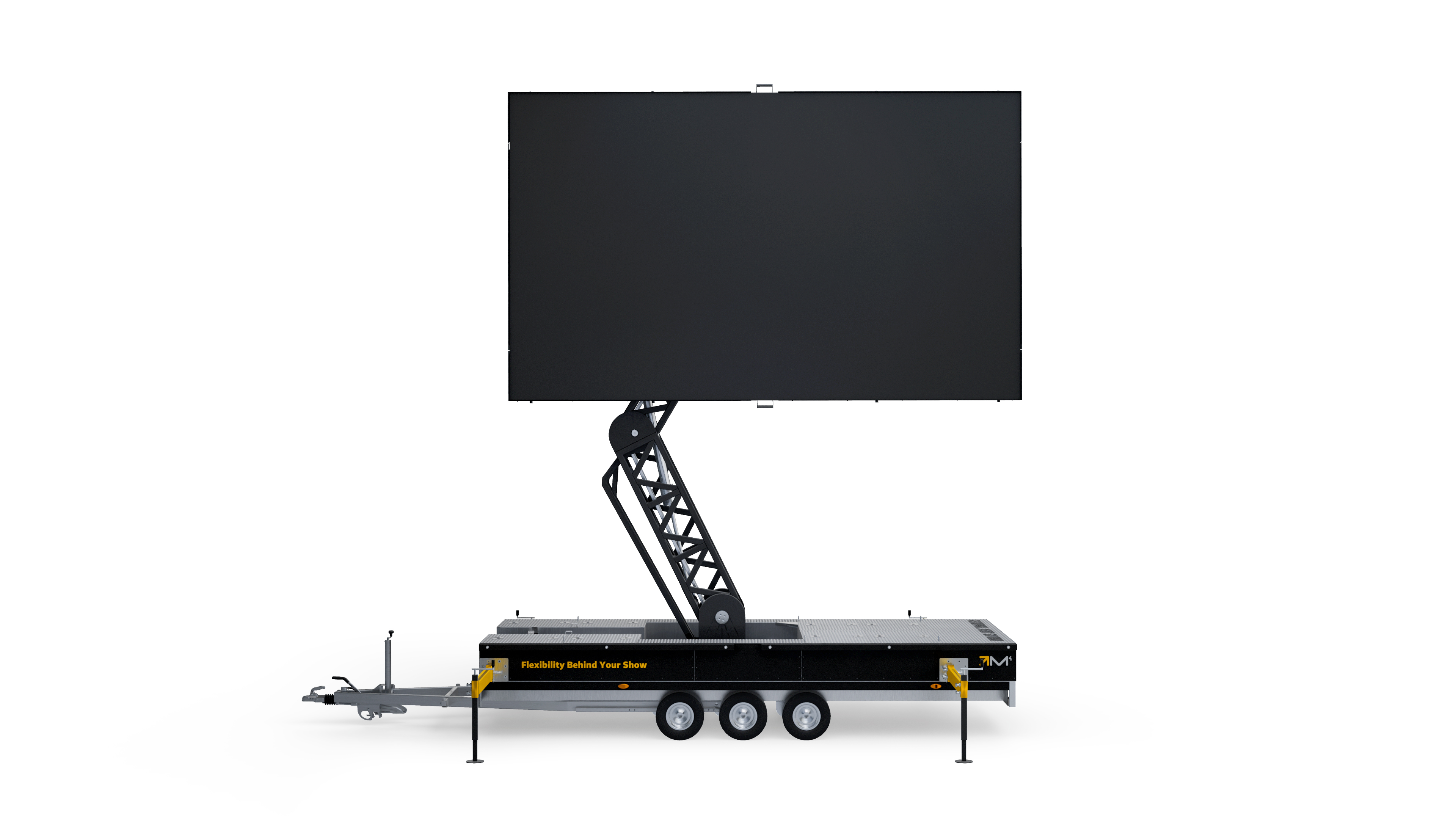

Dimensions of the unfolded system 6,5x 4,4x 4,0-6,3 m
Total weight 3500 kg
LED Screen size 5,0 x 3,0 m
LED Screen protection IP65
Max. weight of the Screen 550 kg
Viewing distance recommendation min. 3,9 m
Rotation of the Screen 340°
Positioner drive control remote cable or wireless
Wind resistance 64 (76) km/h (Beaufort n.8) with certificate
Power 400V/32A, 3P+N+PE
Space for AV equipment (IP66) 1x 19" 4U 400 mm
Covered storage space in the trolley 2x containerwith lid
(max 50 kg)
