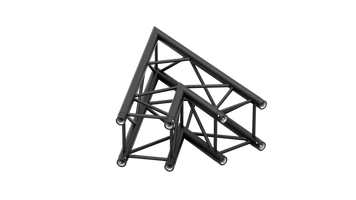

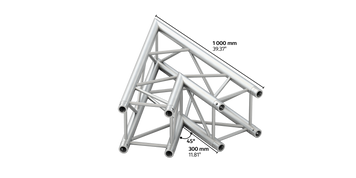

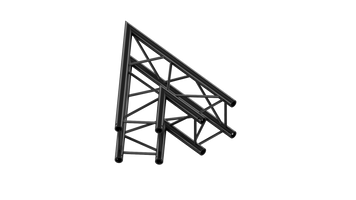

M290U quatro 2way 45° truss corner, color
QCU19|2way45dg|color

M290U quatro 2way 45° truss corner, color

HD aluminium corner piece (QCU19|2way45dg|color) for M290. Compatible with 600 series cell clamps. Includes connection kit for rapid assembly.

Get more info or quote

Key Benefits

• Compatible with M290 Quatro truss system and 200/400/500/600 series cell clamps
• Suitable for both small and large applications
• Durable aluminium construction for long-lasting performance
• Connection kit included for fast and secure assembly
• Versatile applications in stage, exhibition, and event setups

M290U quatro 2way 45° truss corner, color

Elevate your truss designs with the QCU19|2way45dg|color aluminium Truss Corner. This corner piece is engineered for the M290 Quatro truss system, offering exceptional versatility for both small and large applications. The precise design enables strong, reliable configurations, providing flexibility and strength for a wide range of creative truss structures. Crafted from high-quality aluminium. Compatible with the M290 Quatro truss system and 200/400/500/600 series cell clamps, it offers versatile attachment options. Each unit includes a connection kit for fast, secure assembly. Ideal for stage production, exhibitions, and event setups.

Dimensions

Length (mm)
1000.0
Width (mm)
290.0
Height (mm)
706.0
Main Chord Size (mm)
50x2
Brace Size (mm)
20x2

Others

Material
Aluminium
Connection system
conical
Truss Connector
CCU
Pin Type
PB
Standard Color
Black
Optional Color
true
Cell Clamps Compatibility
200, 400, 500, 600
