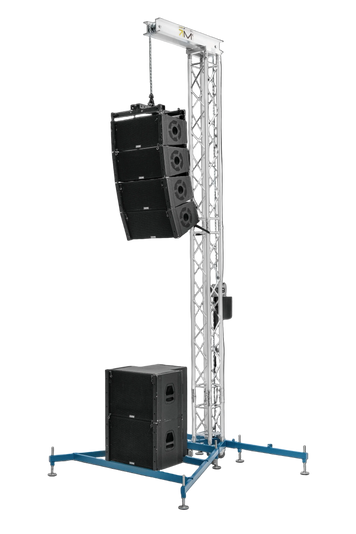

PA fly tower h=5m, load 300kg, w/o lifting equipment
PA fly tower h=5m, load 300kg, w/o lifting equipment
MT-PA5030B

PA fly tower h=5m, load 300kg, w/o lifting equipment

The MT-PA5030 PA fly tower was designed for live events that require a compact PA fly tower for small systems that can be used both indoors and outdoors.

Get more info or quote

Key Benefits

Footprint at set up is 2.5 x 2 m 8.2' x 6.6' (width x depth)
Max. load 300 kg (660 lbs)
1.5 m2 (16.15 ft2) max. front surface area of the PA
1.0 m2 (10.76 ft2) max. side surface area of the PA
50 kg (110 lbs) required ballast
20m/s (45 mph) in-service wind loading
Out-of-service wind loading as per DIN-EN 13814

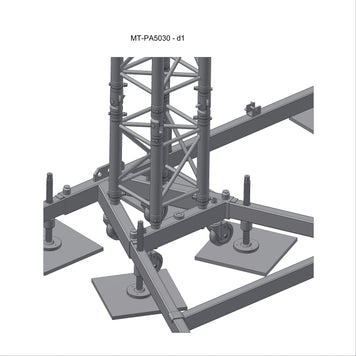

Base frame is V-shaped steel centrepiece with set of 2 bespoke and 2 long MT2 outriggers
Lifting operations with either electrical or manual chain hoists
Head block equipped with double pulley system for attachment of safety chain or safety wire parallel to lifting chain.
Multiple attachment points on base for connection of hoists and safeties
Powder coat colour finish available on request

PA fly tower h=5m, load 300kg, w/o lifting equipment

The MT-PA5030 PA fly tower was designed for live events that require a compact PA fly tower for small systems that can be used both indoors and outdoors.
Set up is easy. Only a few 290 QTV truss components are needed to erect the tower and only 2 persons are required to accomplish this feat. Due to a height of just under 5 meters, approvals by authorities are not necessary. The design allows for placement of base cabinets or amplifier racks on top of the outriggers

Dimensions

Overall height (m)
5.0
Base Footprint (m)
2,5 x 2

Others

Material
Aluminium
Self-weight (kg)
150 kg
Max Loading Capacity (kg)
300.0
Truss
M290V
Base shape
Frame
Extra ballast needed
true
Ballast on base
true
