MR2 Saddle (10x8m & 12x10m)
Products
Google +
E-mail
Facebook
Instagram
LinkedIn
Tumblr
Twitter
Vine.co
Youtube
Share
Print
Go back to Roofs
Detailed information
Basic info
Lengths & Weights

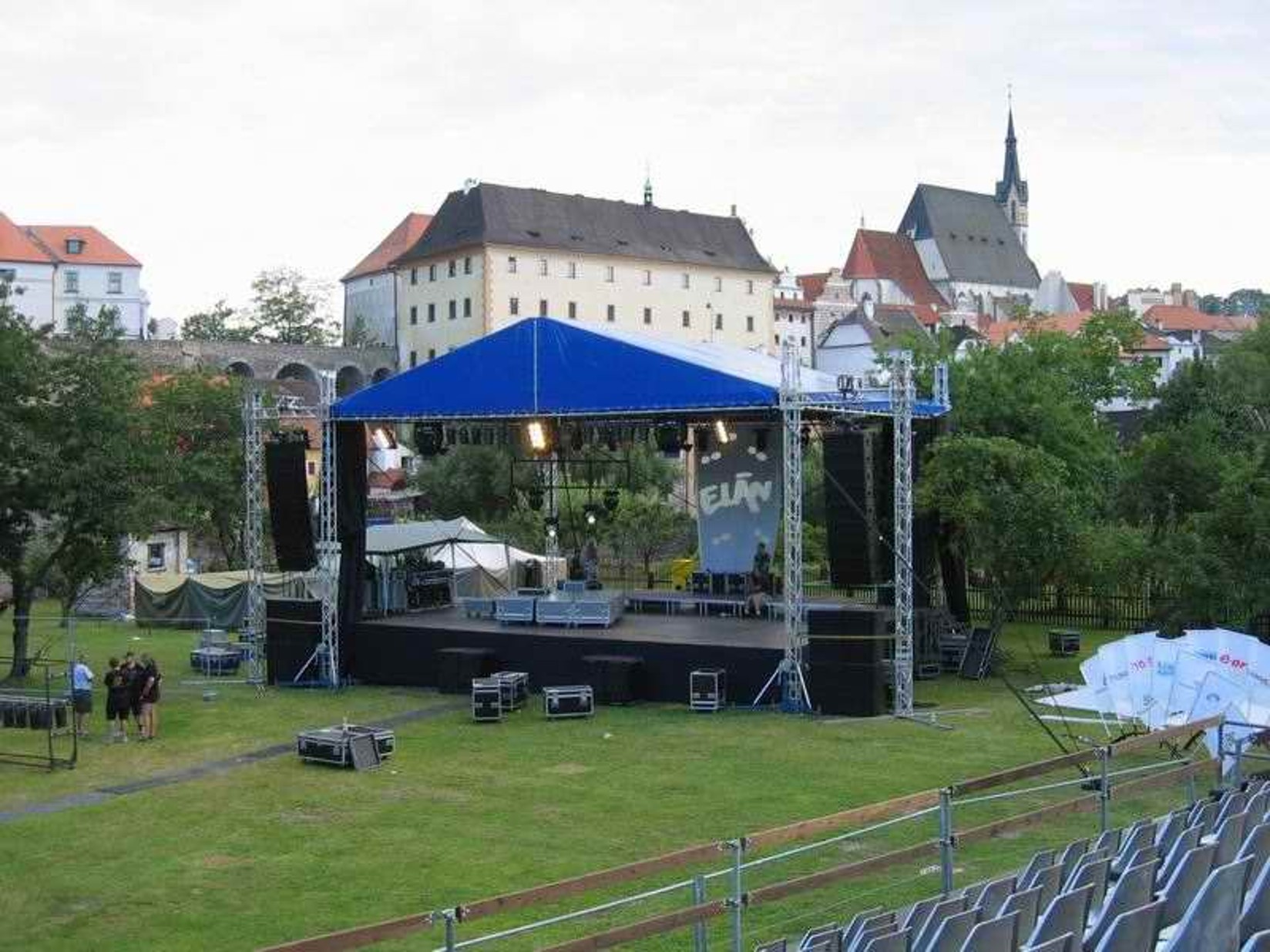

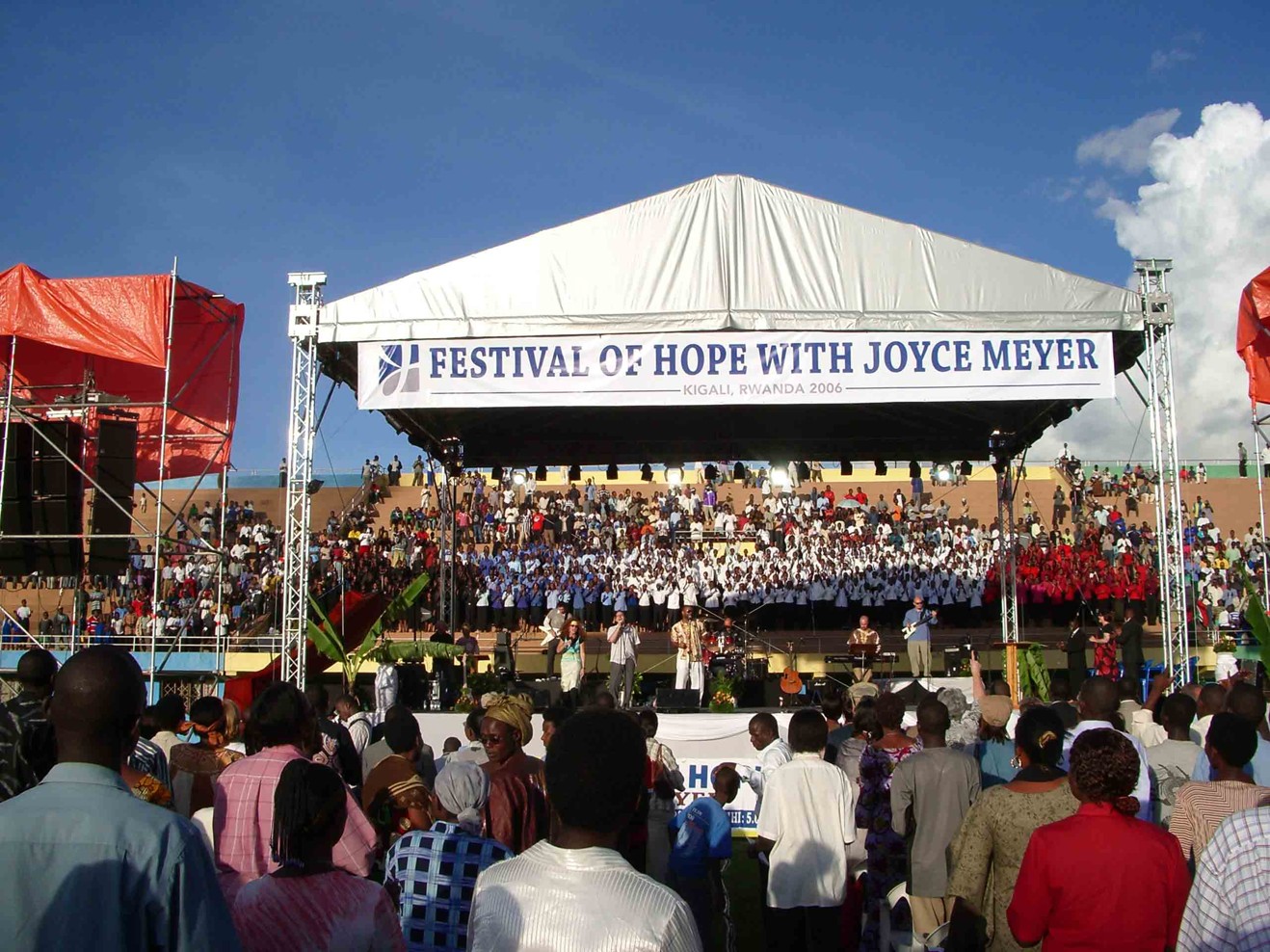

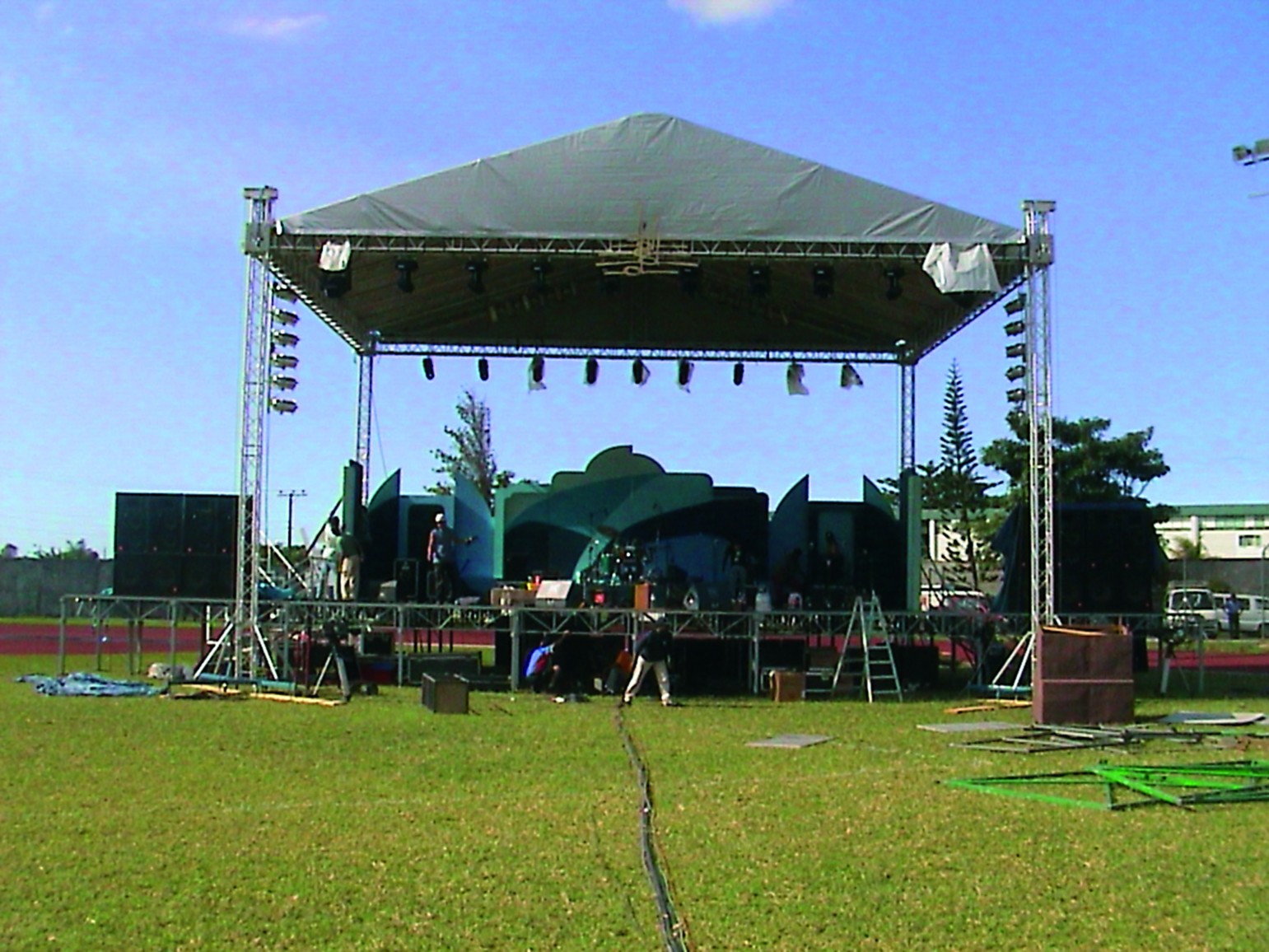

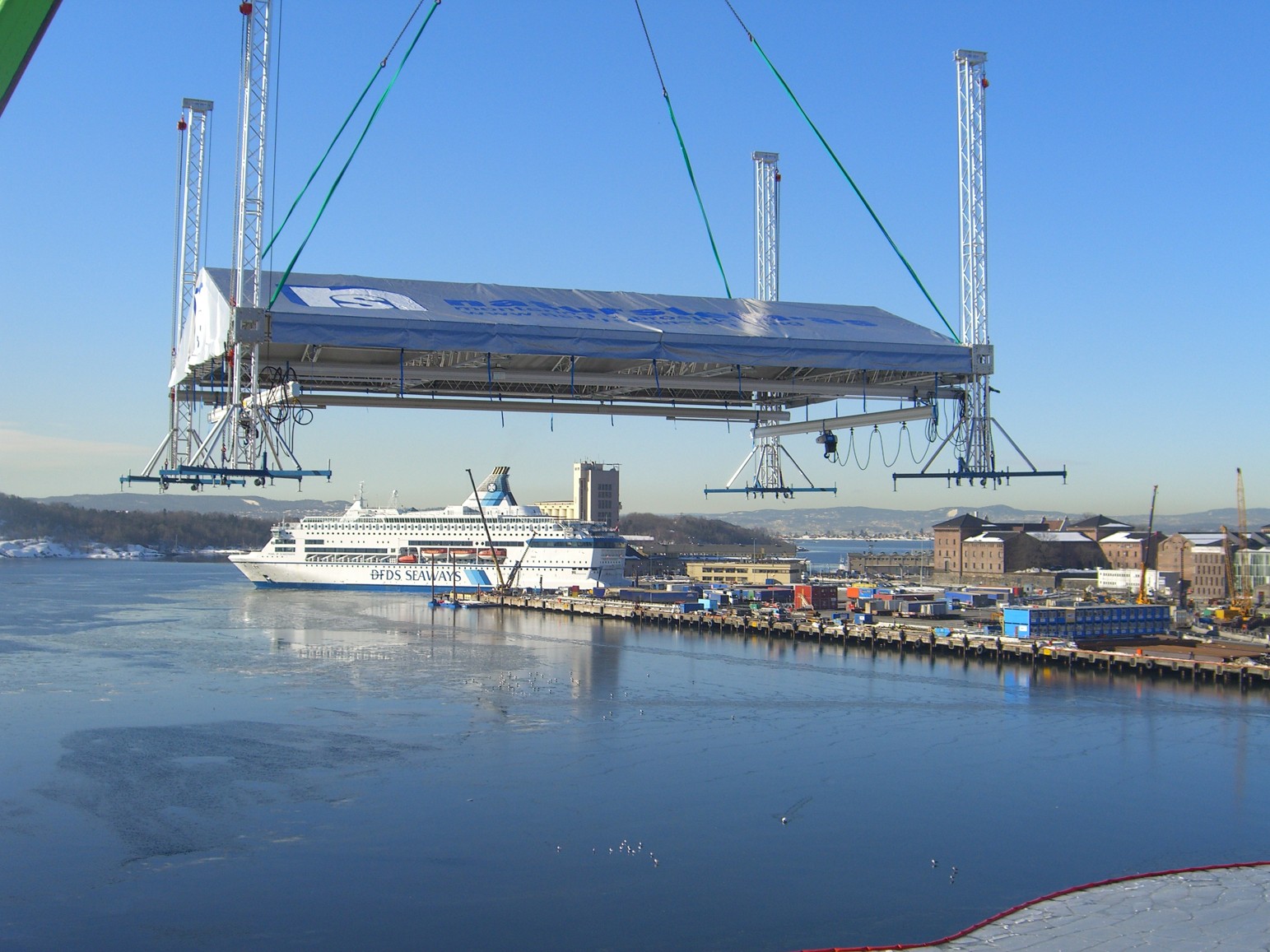

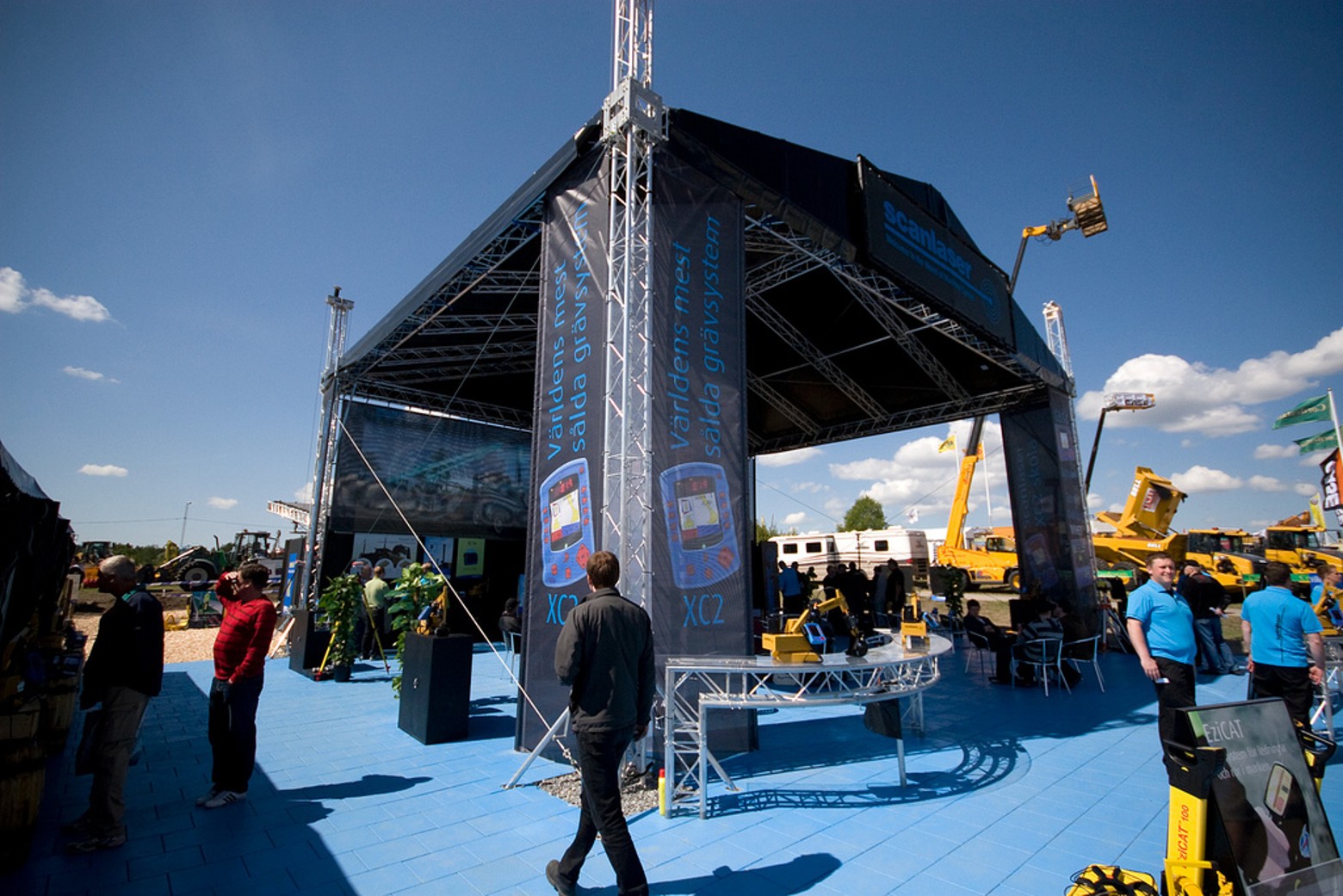

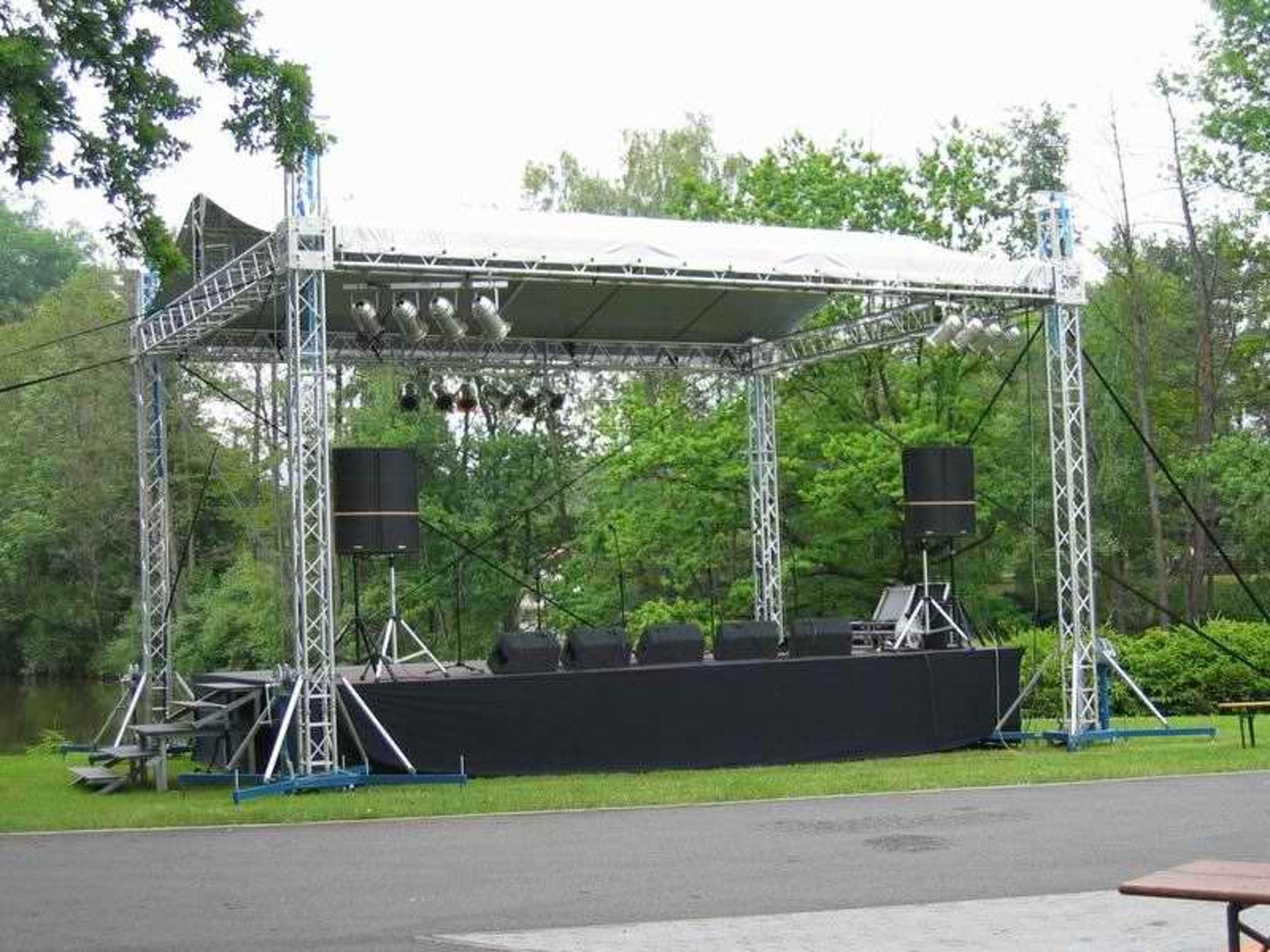

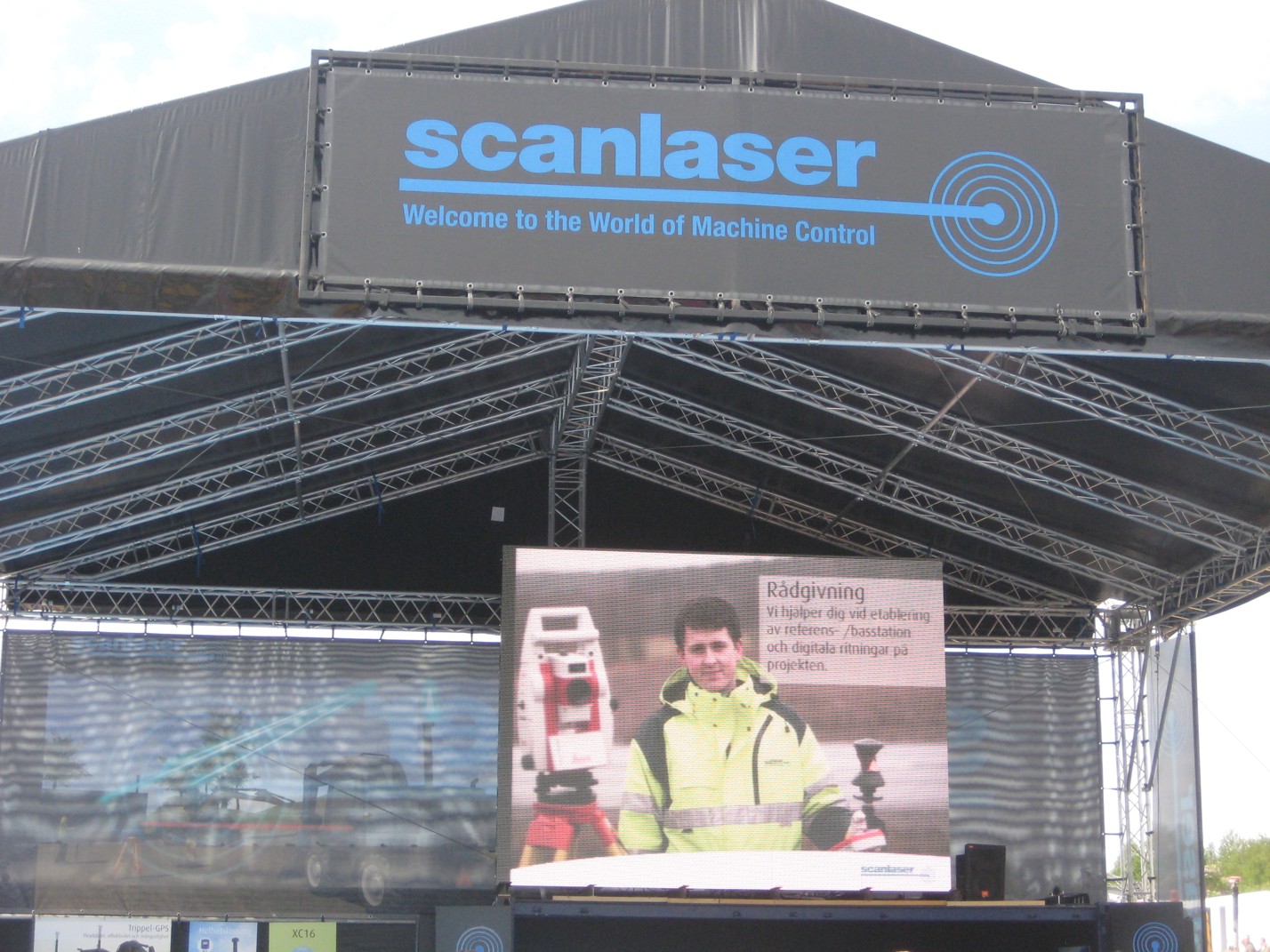

Photo Gallery
Download section
Description
The MR2 roof is a suitable choice for concerts, exhibitions and a large variety of outdoor events. The sloping frame construction gives the roof a dynamic look while allowing water to easily drain from the canopy. Contact us today for more information or to request a quote.
Key benefits

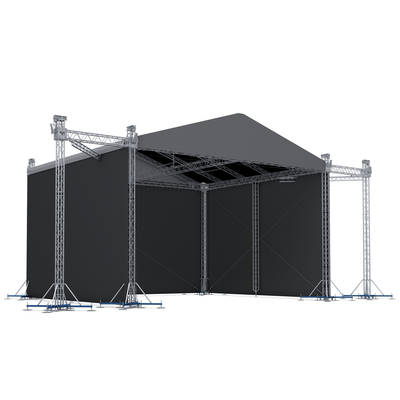

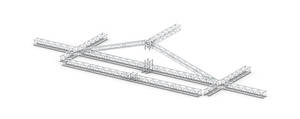

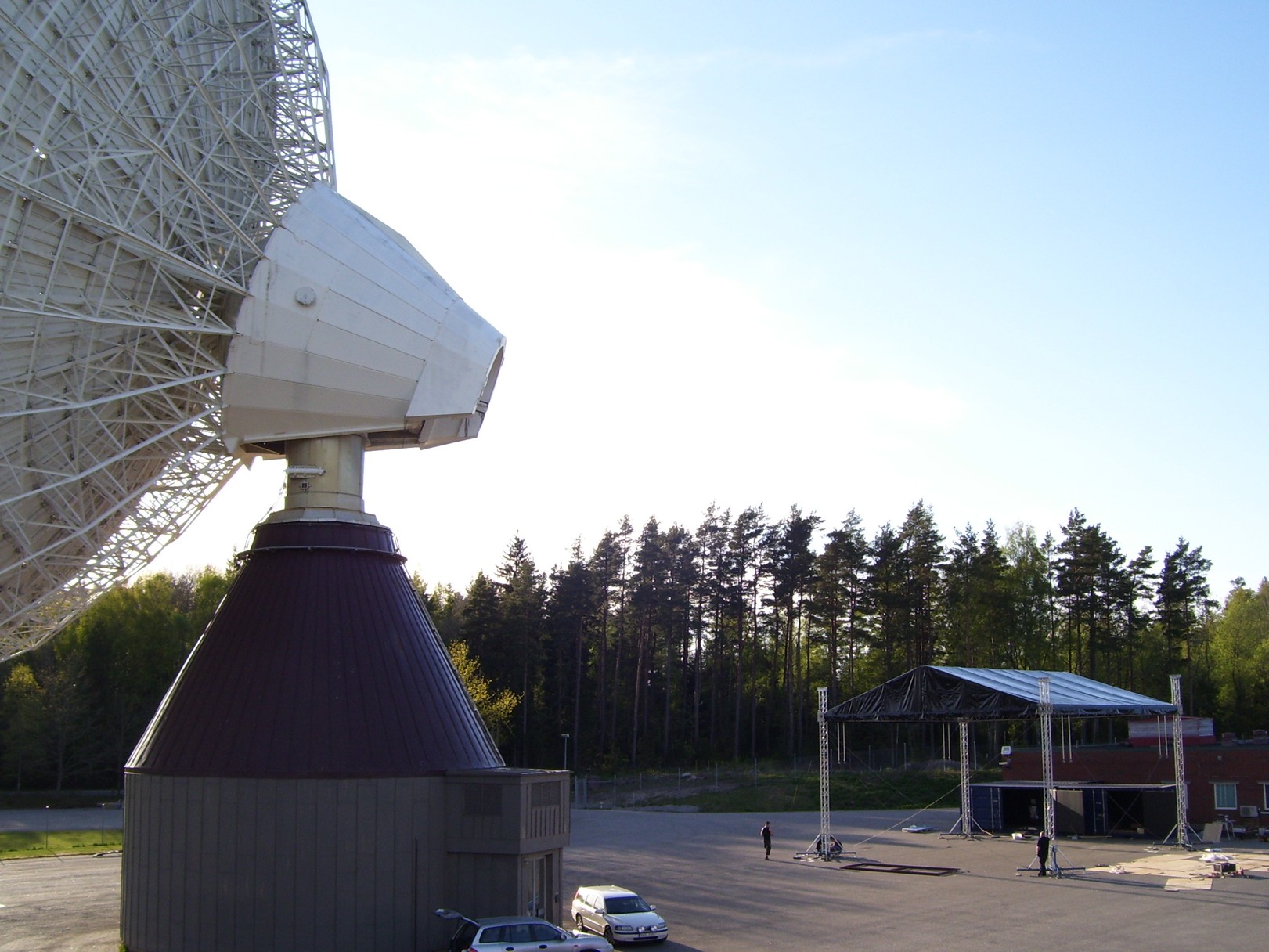

MR2 Saddle Roof structure for temporary events
MT1 self-climbing towers 10 x 8m, 12 x10m options available
Fast connection for quick, simple and secure assembly
Operate with manual chain block or electric chain hoist (bracket required)
Supplied complete with internal wind bracing wires & connection accessories
Full structural calculation report & build manual available
PVC roof colour and side walls options
Integrated tower base / stage components available
PA wing options available on request
EXE hoists recommended
Technical specification
Dimensions
Stage size
12x10 m
39,40x32,80 ft
10x8 m
32,80x26,30 ft
A
Internal width
12,30 m
40.35 ft
10,42 m
34.19 ft
B
Overall external width
14,64 m
48.03 ft
12,74 m
41.80 ft
C
Internal depth
10,60 m
34.78 ft
8,65 m
28.38 ft
D
Overall external depth
12,99 m
42.62 ft
10,97 m
35.99 ft
E
Clearance
7,12 m
23.36 ft
7,12 m
23.36 ft
F
Overall height
9,43 m
30.94 ft
9,14 m
29.99 ft
G
PA wing - internal width
3,15 m
10.33 ft
3,15 m
10.33 ft
H
PA wing -Overall external width
3,44 m
11.29 ft
3,44 m
11.29 ft
Loading capacity
Loading capacity
Stage size
12x10 m
39,40x32,80 ft
10x8 m
32,80x26,30 ft
Main grid
Uniformly distributed (UDL)
7500 Kg
16534 lbs
2400 Kg
5291 lbs
Point loads
7900 Kg
17416 lbs
3000 Kg
6613 lbs
PA wing
Central Point load (CPL)
1500 Kg
3304 lbs
750 Kg
1653 lbs
Cantilever
Point load (CPL)
300 Kg
661 lbs
150 Kg
651 lbs
* See structural report for exact load positioning
Operational specifications
Design standarts
DIN EN 13814 (2005)
DIN 1055-4
DIN 4113
DIN 18800
Fairground and amusement park machinery and structures
Actions on structures / wind
Design of aluminium structures
Design of steel structures
• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management
Out of service
In service
29,6m/s - 106km/h-66mph (Max. gust windspeed)
17,8m/s - 64km/h - 40mph (Max. gust windspeed)
* Calculations based on 100% closed side canopies
* Side canopies to be removed above this wind speed if not considered
Ballast
This can vary per tower from 200kg / 440lbs up to 5300kg / 11674lbs and depends on:
• If tower bases are interconnected or free-standing
• Layout of canopies
• Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions)
• Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls
B1 fire retardant canopy on request, single piece format or kedder profiles
Silvergrey; other colors or inside black on request
B1 fire retardant side nets in compliance with latest Eurocodes
Customized
Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on requirement
Transportation data
Self-weight
Stage size
12x10 m
39,40x32,80 ft
10x8 m
32,80x26,30 ft
* Exact self-weight depends on configuration
2100 kg
4626 lbs
1950 kg
4295 lbs
Transport volume
* Packed in carton boxes and bubble foil
30 m3
1060 ft3
25 m3
882 ft3
Left arrow
Right arrow
MR2
MR2 Saddle (10x8m & 12x10m)
A dynamic, sloping frame saddle roof that sheds water and features quick & easy assembly. It’s the perfect choice for concerts, exhibitions and other outdoor events.
Code
MR2 12x10m, MR2 10x8m,
Max. Stage Dimensions
12x10 m
Max. Clearance
9,43 m
Max. SWL
3480 kg
Wind Rating
64/106 km/h (in/out of service)
Contact Us
UK
+44 (0)1945 410700
USA
+1 800 411 0065
DE
+49 251 2024014-0
EU
+420 416 810 800
Get your quote
MR2 Sound wings
MT1 Ballast Base
MT1 Outrigger Holder
ROOF PARTS
Show all roof parts
Accessories
Explore our new products
Concrete Ballast Base 500kg
MMC Multipurpose Cart
Hanging Corner M290
