S-MT-P Steel Tower
S-MT-P Steel Tower
S-MT-P Steel Tower

S-MT-P Steel Tower

Connection accessory for modular truss systems. Enables flexible assembly and efficient reconfiguration.

Get more info or quote

Key Benefits

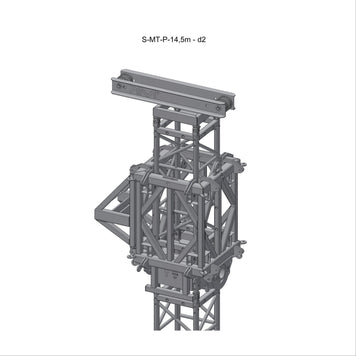

Steel head-section with aluminium wheels and heavy duty bearings
Integrated steel base with spindles for height adjustability
Integrated forklift pickup points
End Frames of Truss equipped with lateral connection options
Main chords 60,3x4mm
Diagonals 33,7x2,6mm
Integrated ladder for easy climbing
Locking unit with capacity 45 333 kg

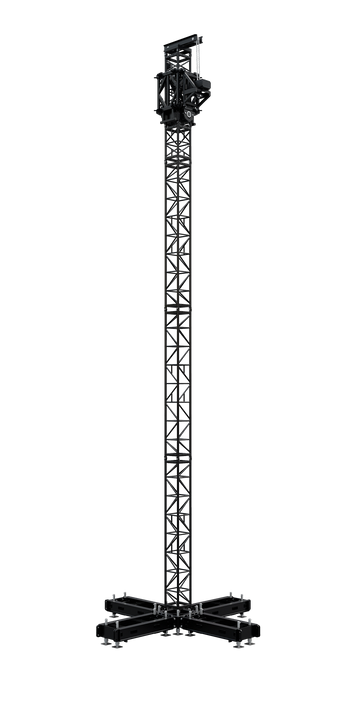

S-MT-P Steel Tower

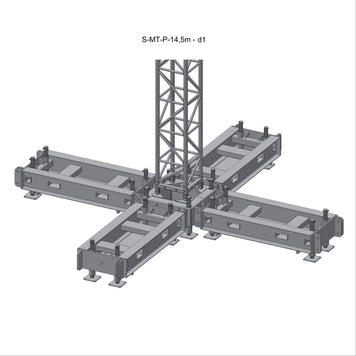

The S-MT-P steel tower is stable and robust thanks to its connection to the base, which can be extended by outriggers and has also guy-wire attachment points. Adjustable spindles allows you optimal height adjustment.
Constructed with MILOS S-QTPT Ultra-High-Strength steel Truss (530x530mm: 35m Span with 69kg/m UDL). Pinned connectors are used to increase safety and strength.
When used as 20 m high, free-standing tower integrated in S-MT-P-01 Base, the load capacity is up to 25145 kg.
When used as 20 m high tower in a guy-wire-braced ground support, the load capacity is up to 47228 kg, or when used with Locking Unit to 45333 kg.

Dimensions

Overall height (m)
16.0
Base Footprint (m)
5 x 5

Others

Material
Steel
Self-weight (kg)
3500 kg
Electric hoist needed
true
Max Loading Capacity (kg)
47000.0
Truss
S-QTPT
Base shape
Cross
Extra ballast needed
true
Ballast on base
true
