Go back to Towers & LED Screens
Detailed information
Basic info
Lengths & Weights
Key benefits

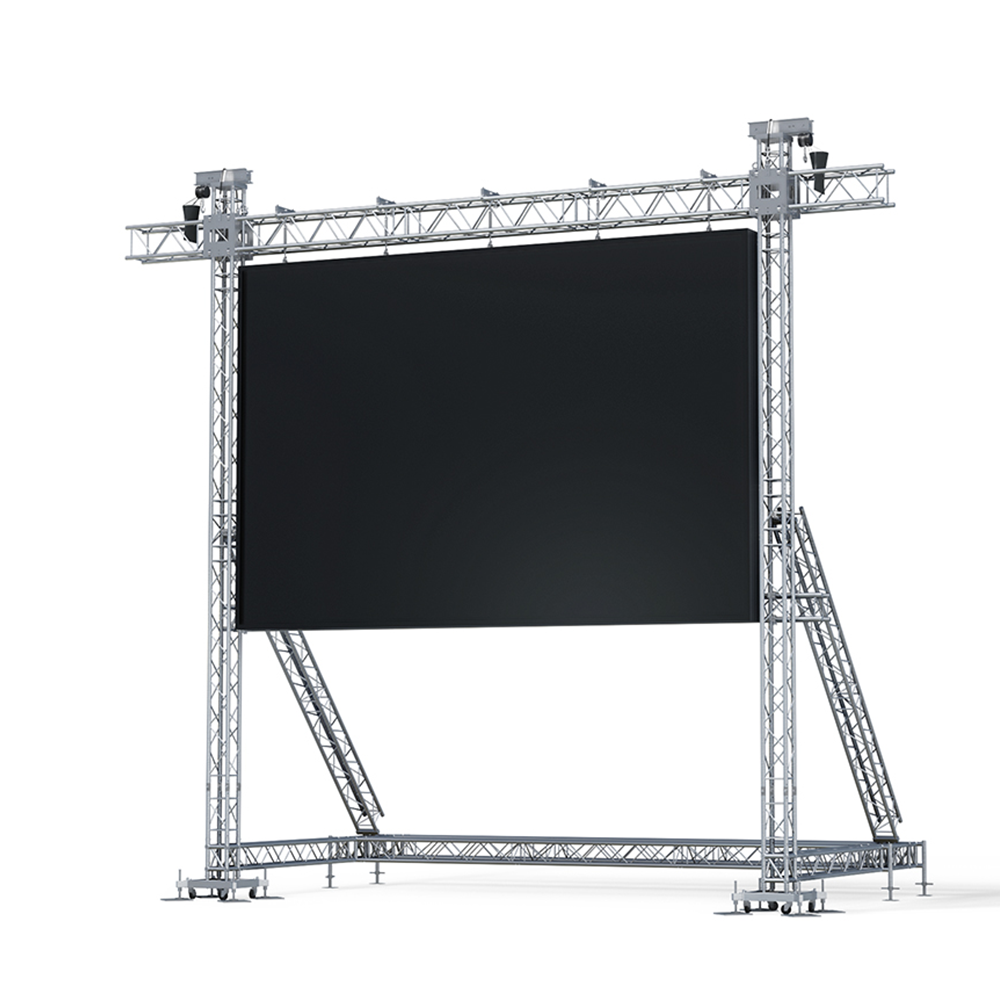

Compact self climbing LED tower with integrated ballast platform
MT1 towers with central M390 bridge & M290 rear stabilising base frame
Obstruction free viewing for audience
Operate with manual chain block or electric chain hoist
EXE hoists recommended
Fast connection for quick, simple and secure assembly
Full structural calculation report & build manual available
Cantilever Line Array arms
Powder coat colour finish available on request
Technical specification
Dimensions
LED screen size
6x4 m
19,70x13,10 ft
A
Internal width
6,65 m
21.82 ft
B
Overall external width
9,39 m
30.81 ft
C
Overall external depth
4,48 m
14.70 ft
D
Clearance
7,08 m
23.23 ft
E
Overall height
8,03 m
26.35 ft
F
PA wing - internal width
1,07 m
3.51 ft
Loading capacity
Loading capacity
LED screen size
6x4 m
19,70x13,10 ft
LED Screen
6x point loads equally divided
250 kg
551 lbs
Max. total load
1500 kg
3306 lbs
PA wing
Point load
250 kg
551 lbs
* See structural report for exact load positioning
Operational specifications
Design standarts
DIN EN 13814 (2012)
DIN EN 1991 / Eurocode 1
DIN EN 1999 / Eurocode 9
DIN EN 1993 / Eurocode 3
Fairground and amusement park machinery and structures
Actions on structures
Design of aluminium structures
Design of steel structures
• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management
Out of service
In service
27,0m/s - 100km/h - 62mph (Max. gust wind speed)
17,8m/s - 64km/h - 40mph (Max. gust wind speed)
* above in-service wind speed; PA to be removed and screen lowered to ground and supported at top
by horizontal truss connected to towers at height of stabilizer tubes
Ballast
2x 900kg / 1982lbs placed at back side cross trusses, as close as possible to the sides. If screen weight is lower as 1500kg / 3306lbs, 50% of the difference shall be placed on each front tower base
Customized
Customisation, i.e. truss configuration, alternative dimensions, on requirement. Always verify with Milos your screen dimensions, weight and rigging for correct configuration
Transportation data
Self-weight
LED screen size
6x4 m
19,70x13,10 ft
* Exact self-weight depends on configuration
652 kg
1436 lbs
Transport volume
* Packed in carton boxes and bubble foil
8 m3
282 ft3

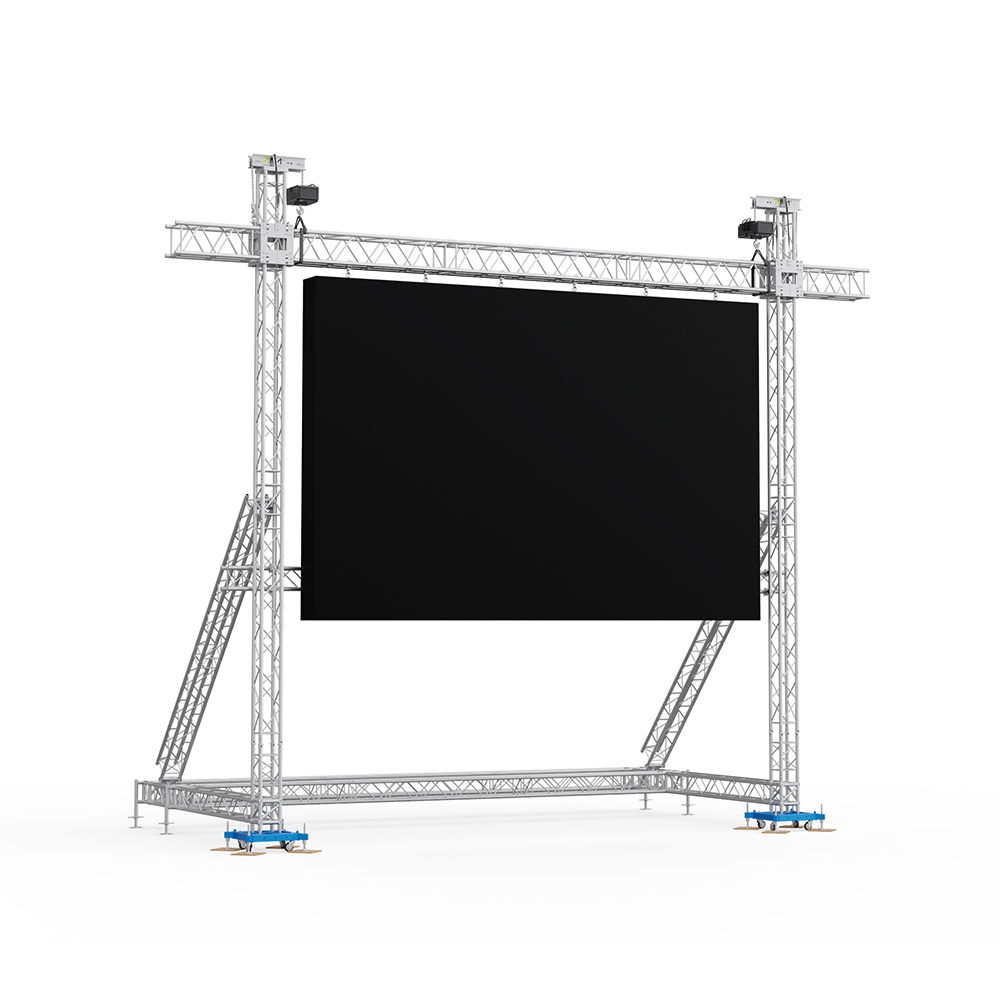

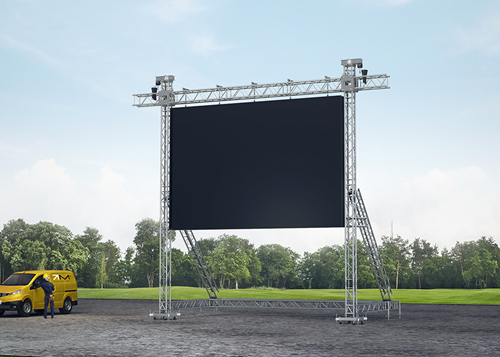

LSG0 LED screen structures
Compact LED screen support structure with integrated ballast platform featuring quick, simple and secure assembly.
Available colors:
Code
LSG0 6x4
Self Weight
652 kg
Contact Us
UK
+44 (0)1945 410700
USA
+1 800 411 0065
DE
+49 251 2024014-0
EU
+420 416 810 800
Get your quote

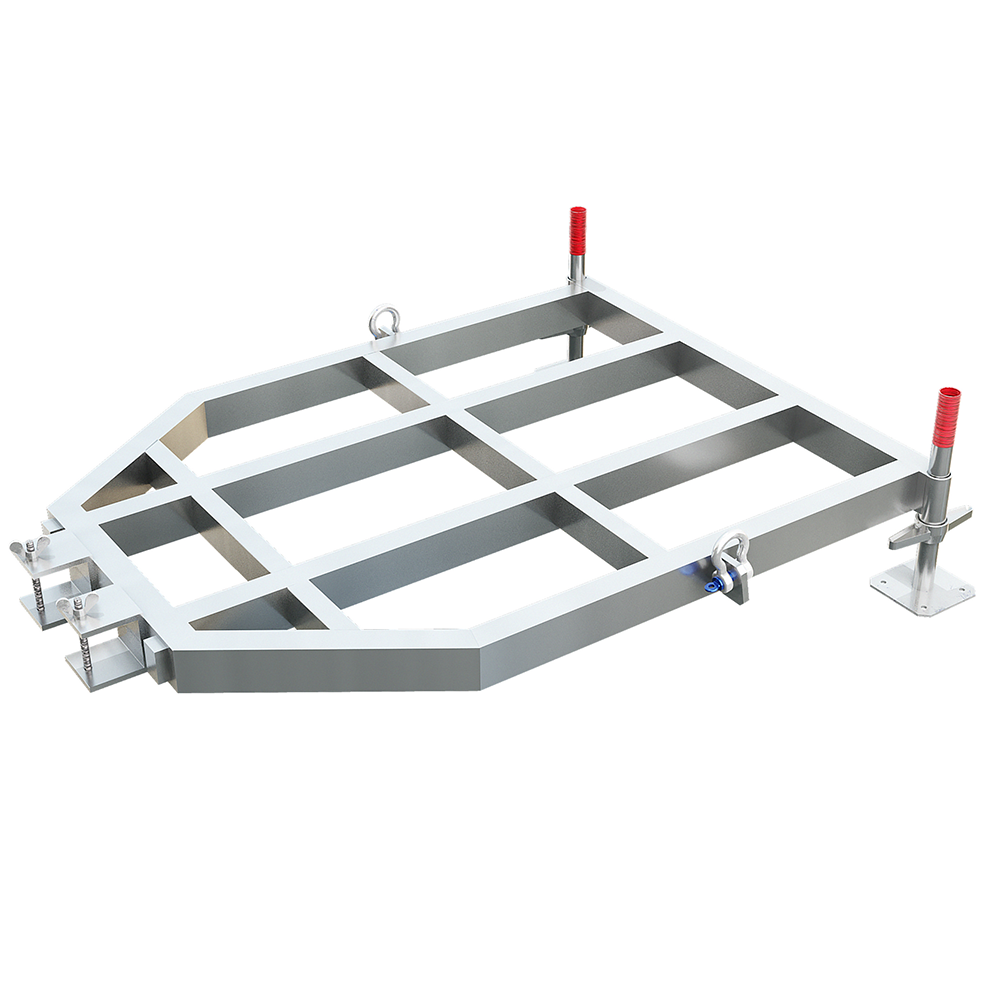

MT1 Ballast Base
