Detailed information

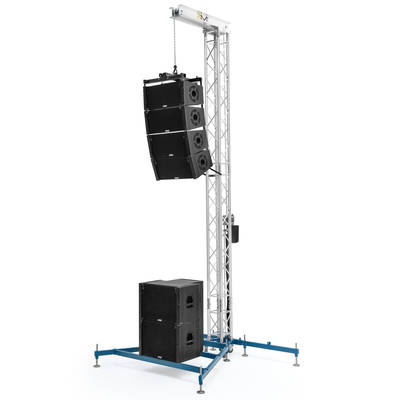

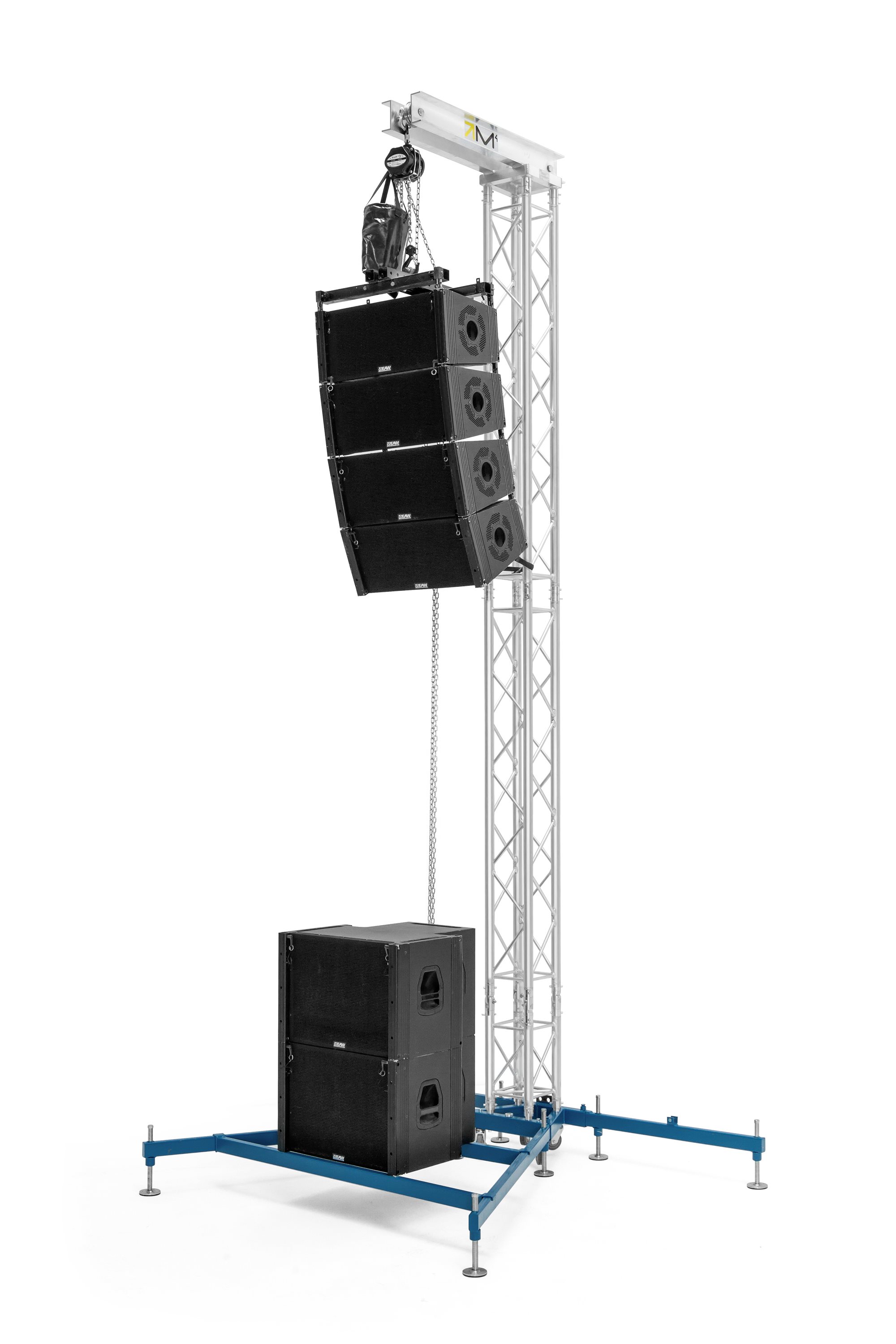

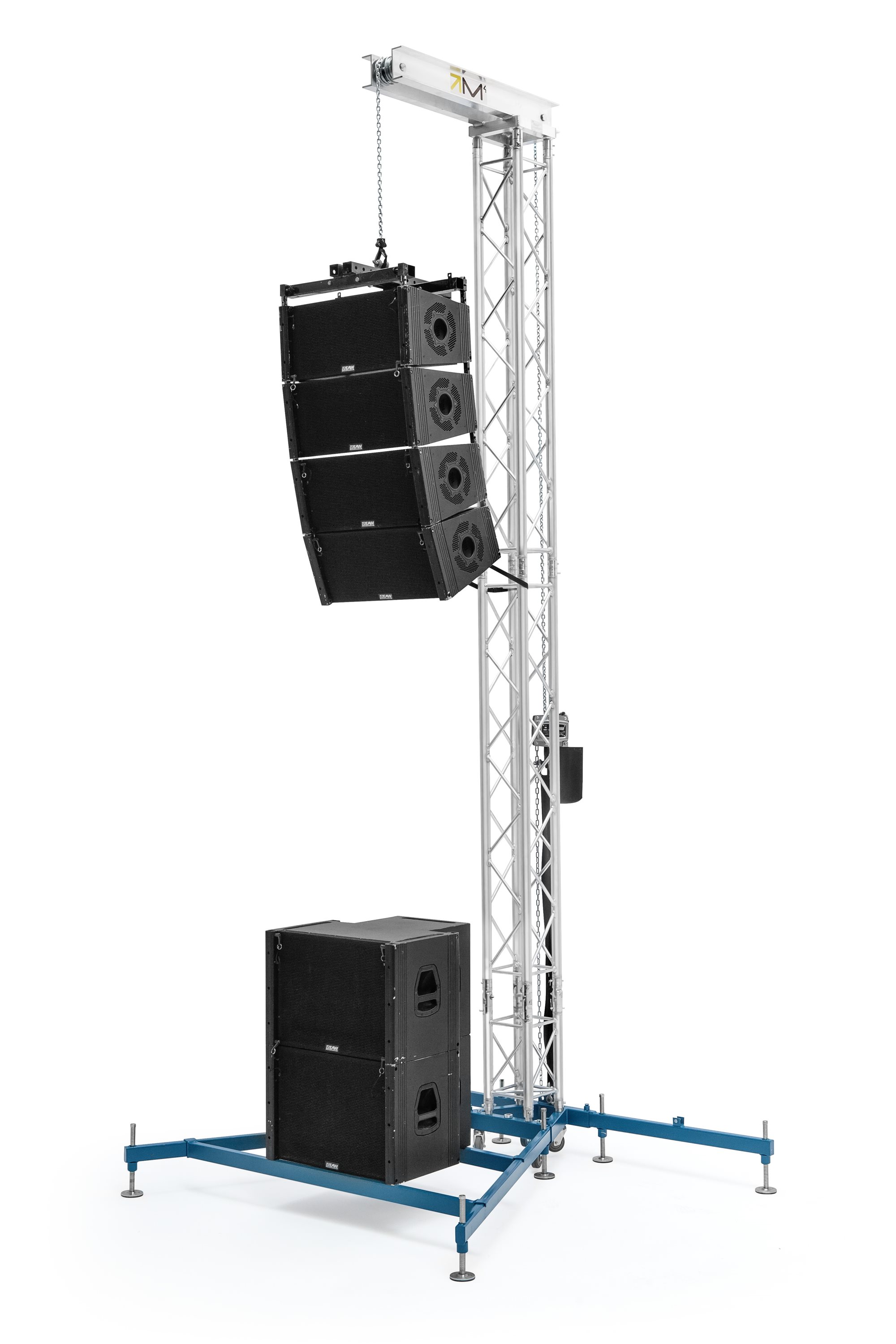

The new MILOS MT-PA5030 PA fly tower was designed for live events that require a compact PA fly tower for small systems that can be used both indoors and outdoors.
Set up is easy. Only a few 290 QTV truss components are needed to erect the tower and only 2 persons are required to accomplish this feat. Due to a height of just under 5 meters, approvals by authorities are not necessary. The design allows for placement of base cabinets or amplifier racks on top of the outriggers.

Key benefits

  •   Footprint at set up is 2.5 x 2 m 8.2' x 6.6' (width x depth)
  •   Max. load 300 kg (660 lbs)
  •  1.5 m2 (16.15 ft2) max. front surface area of the PA
  •  1.0 m2 (10.76 ft2) max. side surface area of the PA
  •  50 kg (110 lbs) required ballast
  •  20m/s (45 mph) in-service wind loading
  •  Out-of-service wind loading as per DIN-EN 13814

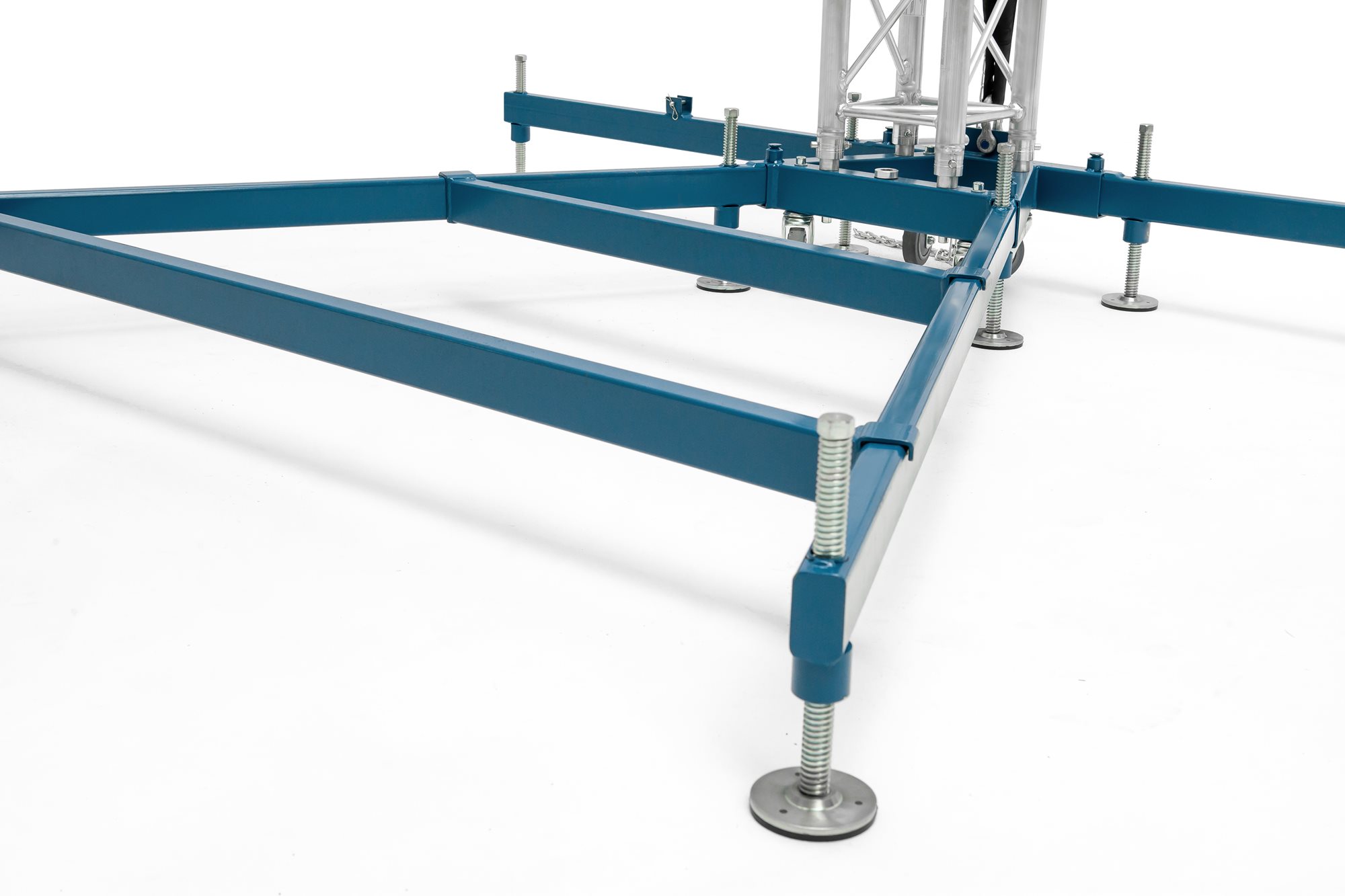

  •  Base frame is V-shaped steel centrepiece with set of 2 bespoke and 2 long MT2 outriggers

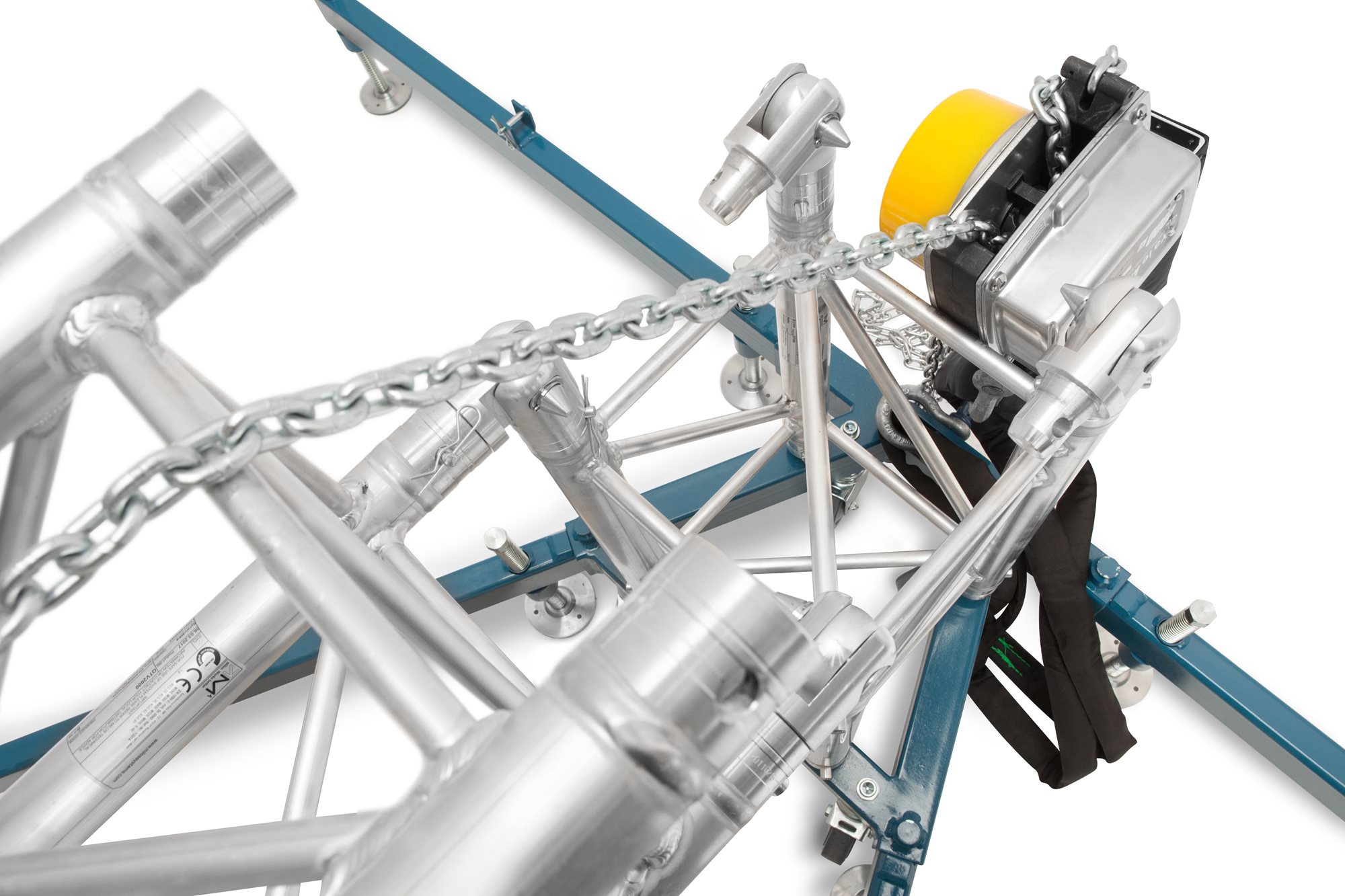

  •  Lifting operations with either electrical or manual chain hoists
  •  EXE hoists recommended

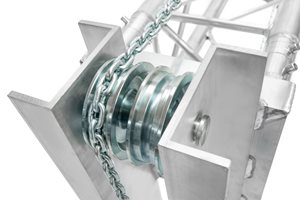

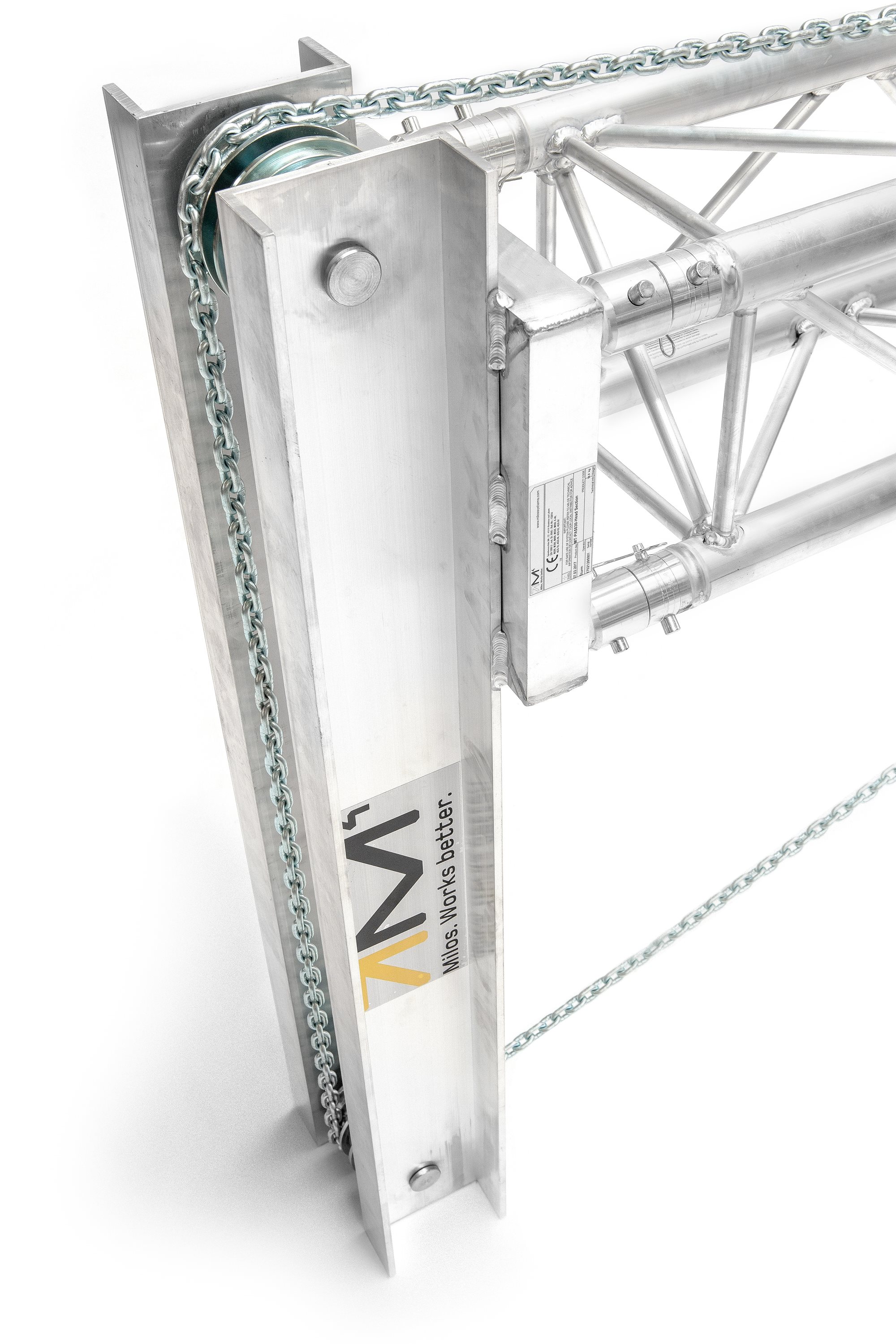

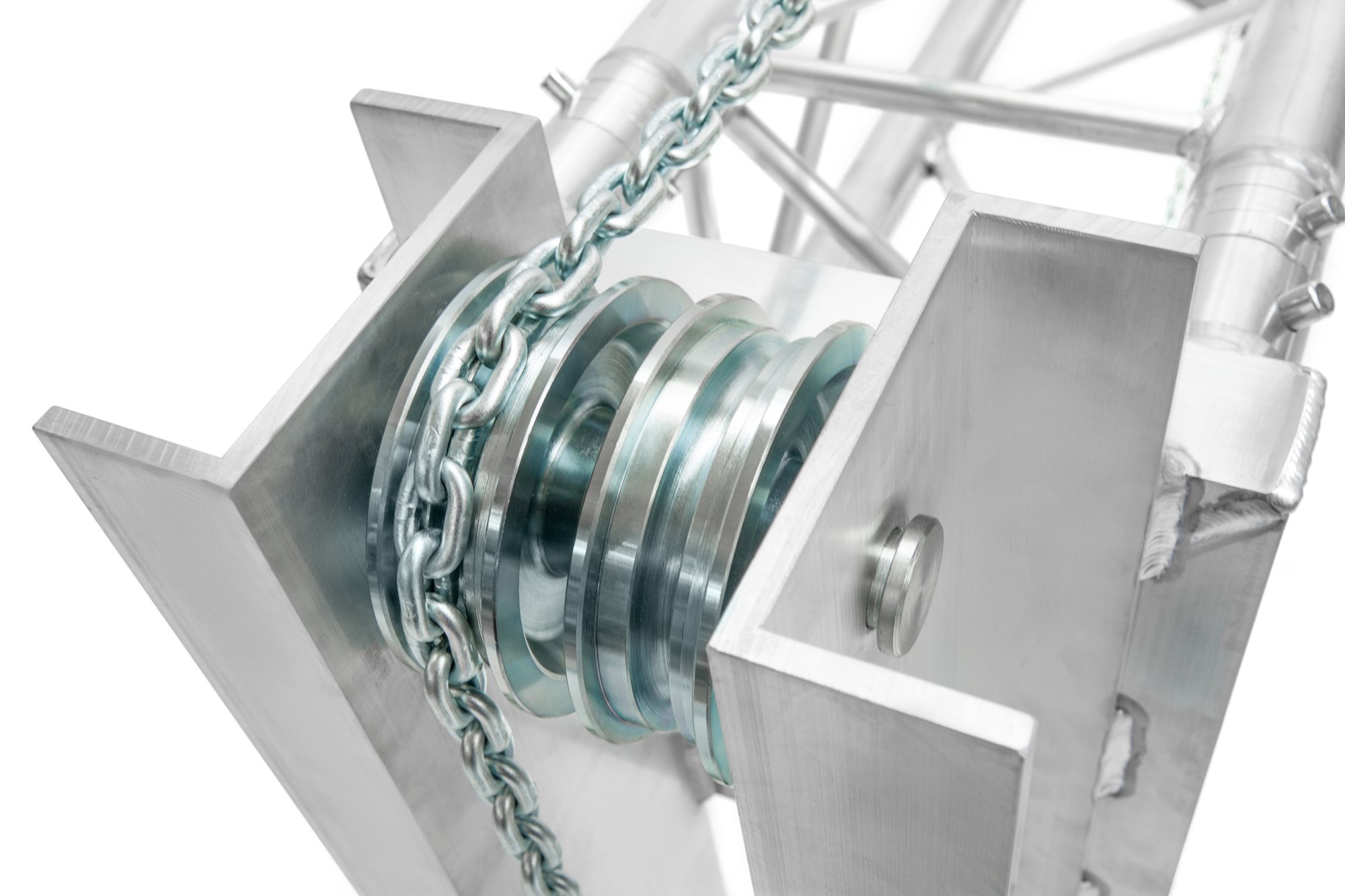

  • Head block equipped with double pulley system for attachment of safety chain or safety wire parallel to lifting chain.

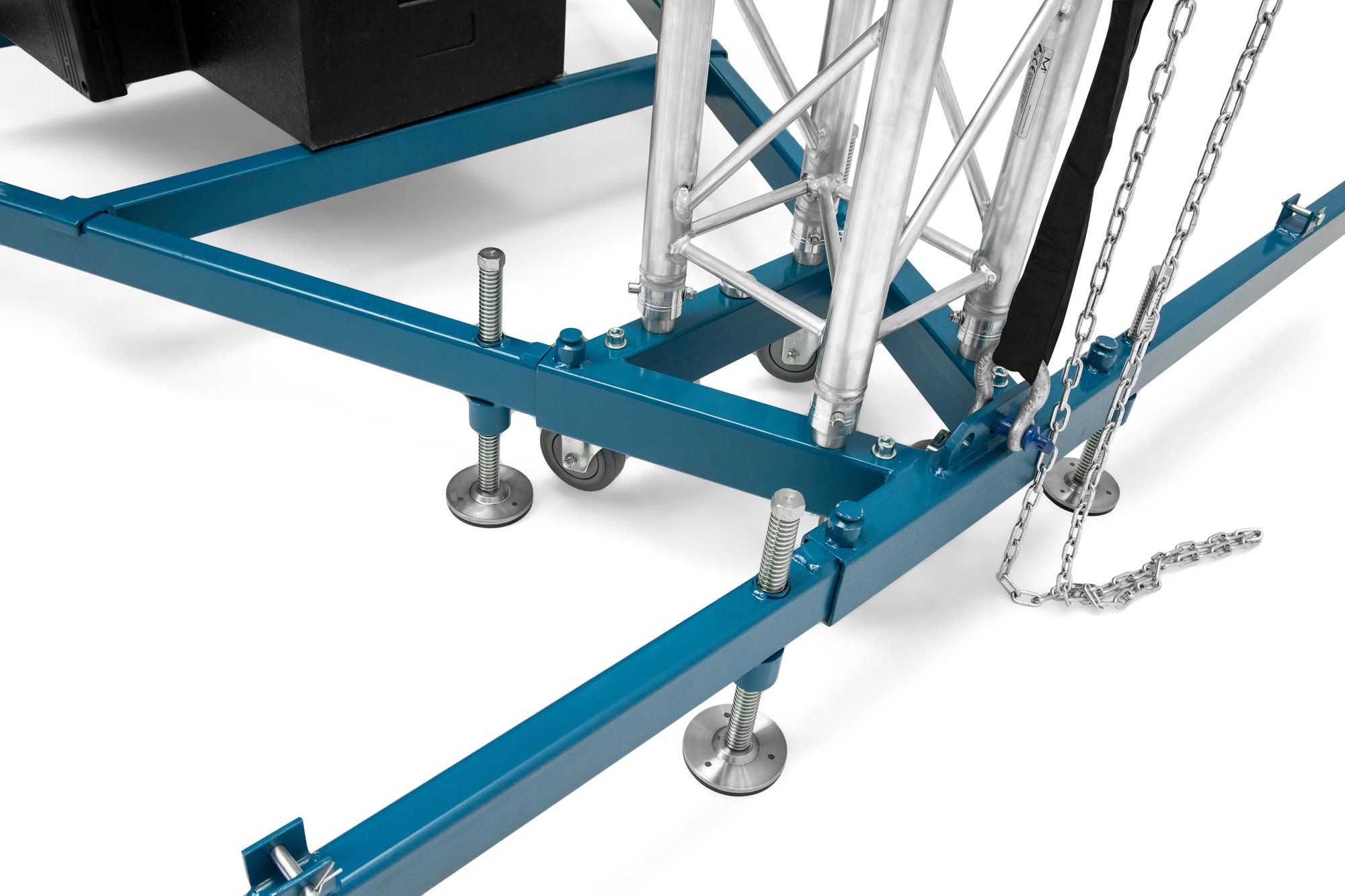

  • Multiple attachment points on base for connection of hoists and safeties
  • Powder coat colour finish available on request

MT-PA5030 PA Tower (300 kg)

Compact PA fly tower for smaller, indoor or outdoor live event systems.
Available colors:
MT-PA5030 5m
5 m
Max. SWL
300 kg
MT-PA5030 PA Tower (300 kg)
MT-PA5030 PA Tower (300 kg)
