Detailed information

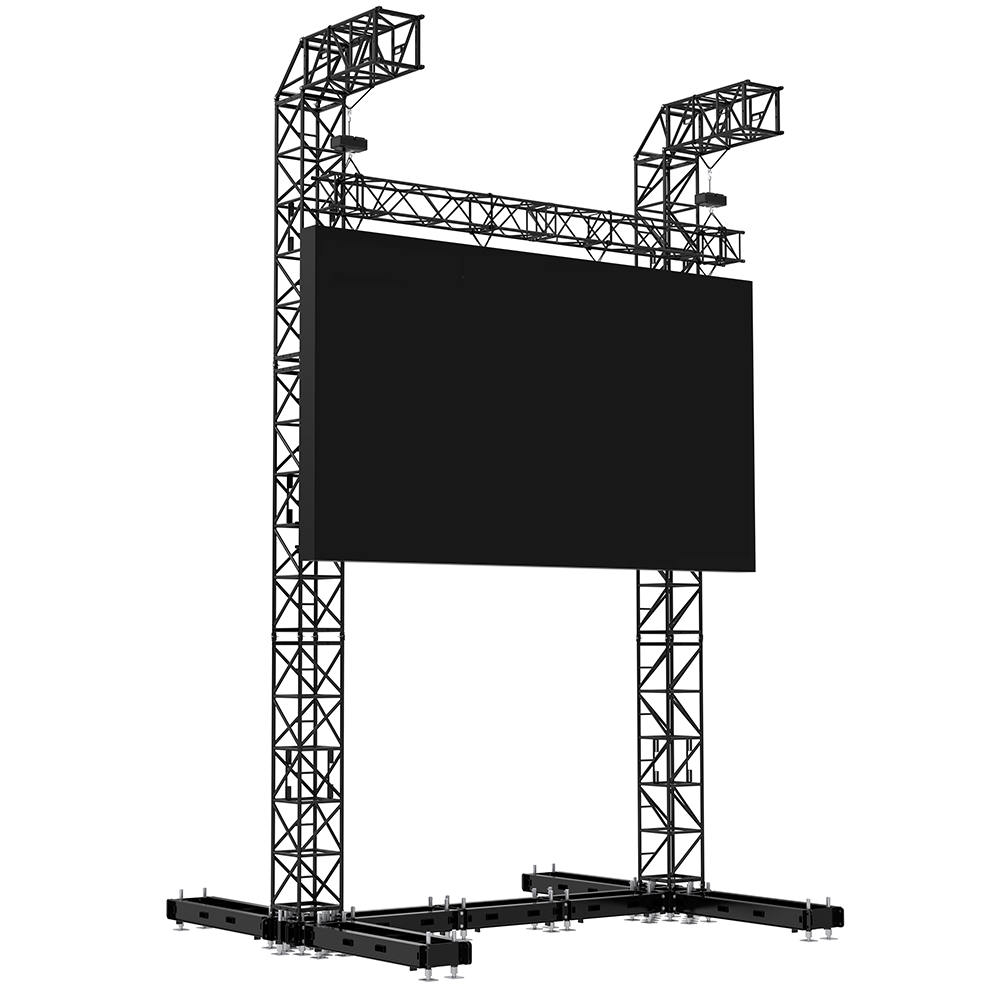

Safely and securely support the extreme weight of your large LED displays (up to 3,000kg and 60 m2 screen) with our Steel LED Tower!

Features:
  • Special steel alloy that provides a nearly 3x more strength compared to standard S235 Steel
  • Integrated forklift pockets for convenient transport
  • Durable, industrial black paint finish as standard on all truss and tower modules

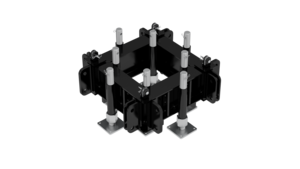

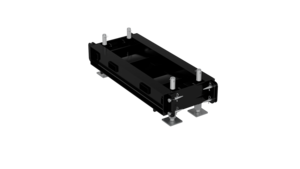

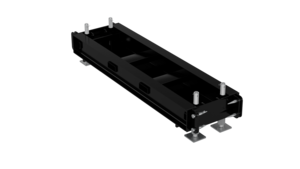

Due to the use of our integrated steel base with outriggers (3m outriggers at front/back and base to base connection based on length of screen), no guy wires from tower to base are necessary. Length of inner outriggers that interconnect the two towers depends on length of the LED Wall.

Wind loading of secured structure is up to 28m/second. In case of high wind speeds, the LED screen must be lowered to the ground and connected to the top of the tower.

Truss

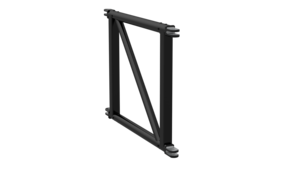

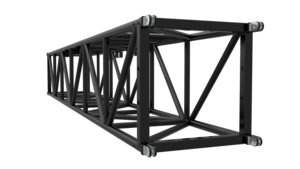

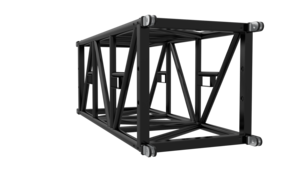

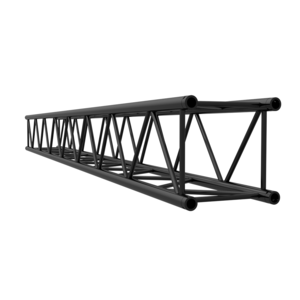

MILOS S-QTQT Ultra High-Strength Steel Truss (780 x 780mm)

LED Screen capacities

8m Tower:
  • 60m2 front of screen
  • 3,000kg max. loading capacity
12m Tower:
  • 40m2 front of screen
  • 2,000kg max. loading capacity
16m Tower:
  • 20m2 front of screen
  • 1,000kg max. loading capacity

The centre of gravity of the attached payload is assumed in the calculation to be approx. 50 cm in front of the vertical tower truss.

The front surfaces are assumed in the calculation to be a 16:9 format.


Advertising option

At the free end of the 2m-cantilever arm at the top of the tower, an advertising element can be attached. Due to the design of the gate, this element does not have to be dismantled when the gate is “out of service”.

S-LSG-QTQT

Our Steel LED Tower provides extreme loading capacity for safely flying your large LED screens without the need for guy wires.
Code
S-LSG-QTQT
Height
Up to 16 m
S-LSG-QTQT
