4GS-35 - Medium Duty Fork Connection Series

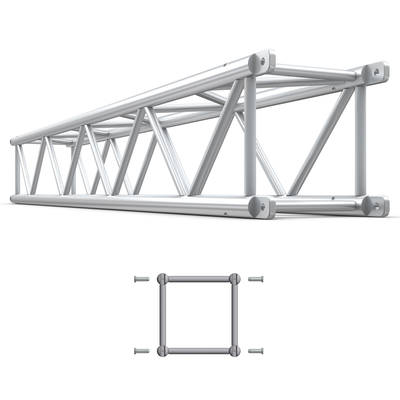

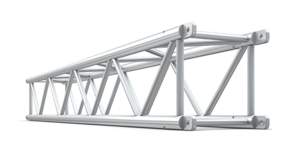

Modular aluminium truss system for large truss structures, concert stages, towers and gantries with traditional fork & tongue connection for superior performance.
Available colors:
Code
4GS-35
Main Tube
48 x 4,5mm
Braces
25 x 3 mm
Available Length
0.39 - 4.14 m
Size
347 x 347 mm
Span
19 m
4GS-35 - Medium Duty Fork Connection Series
4GS-35 - Medium Duty Fork Connection Series

Detailed information

Description

Our 4GS-35 range of modular aluminium systems are ideal solutions for large truss structures, towers and gantries. Superior performance and durability of the traditional fork and tongue connection is popular with rental companies worldwide. They have come to rely on the 4GS-35 and 4GS-50 for all forms of rigging towers, exhibition gantries and large concert stages. Components can be supplied in either Natural Mill Aluminium or a variety of Powder Coated colours and finishes.

Call or e-mail us today for more information or to receive a quote.

Key benefits

  • Medium-duty truss range
  • All components supplied complete with connection accessories
  • Wide range of standard lengths & accessories
  • Compatible with 200 / 400 / 500 / 600 series cell clamps
  • 4GS-35 great free-span & loading characteristics (up to 20m / 65.61 ft)
  • Powder coat colour finish available on request
4GS-35 - Standard lengths and weights available
0.39 m 0.67 m 1.24 m 1.82 m 2.4 m 3 m 3.56 m 4.14 m
22.63 kg 33.34 kg 37.12 kg 47.81 kg 51.55 kg 62.24 kg 65.95 kg 65.95 kg
