M222 - Compact & Lightweight

M222 conical truss is the right choice for retail, display booth and decorative applications.
Code
STM
Main Tube
32 x 1.5 mm
Braces
10 x 1.5 mm
Available Length
0.5 - 4 m
Max. SWL
482 kg
Size
222 x 196 mm
Span
8 m
M222 - Compact & Lightweight

Detailed information

Description

The M222 system offers outstanding weight loading capabilities despite its small size and light weight. The combination of compact transport/storage size and reduced weight of the truss makes M222 the right choice for retail, truss display booths at trade shows and decorative applications.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • Compact display series system

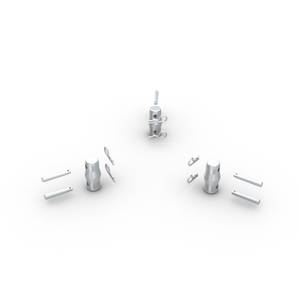

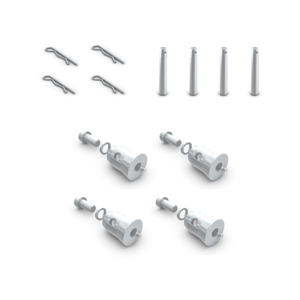

  • Connection kit supplied with every truss length or junction
  • Lightweight, modular construction
  • Cell 100 series compatible
  • Fast connection for quick, simple and secure assembly
  • Xtruss accessories compatible
  • Impressive free-span characteristics for size
  • Powder coat colour finish available on request
Standard lengths and weights available
  0.5 m 1 m 1.5 m 2 m 2.5 m 3 m 4 m
Duo 0.60 kg 1.10 kg 1.60 kg 2.10 kg 2.40 kg 2.90 kg 3.80 kg
Trio 1.00 kg 2.00 kg 2.70 kg 3.40 kg 4.20 kg 5.00 kg 6.50 kg
Quatro 1.40 kg 2.40 kg  3.40 kg 4.50 kg 5.50 kg 6.60 kg 8.70 kg
