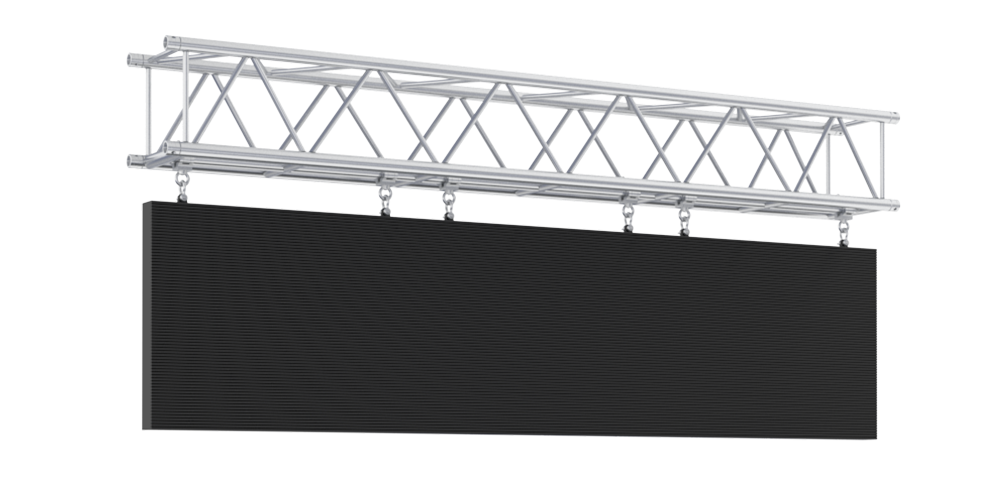

Wherever the venue, whatever the event, hanging an LED screen in the truss’ centre of gravity is absolutely crucial. Even the largest and most prestigious concert or sporting event counts for nothing if the screen is invisible to sections of the audience. The MILOS M390 LED Truss features a central chord, allowing the possibility of using clamps to secure the LED screen. Welcome to the ultimate viewing experience on the market
Produced in MILOS’ state-of-the-art factories, the M390 Truss offers safe, easy, and stable hanging of QTL-LED screens. And because it is clamped in the centre of the rigging, you gain lots more clear hanging space.
The truss is available in standard lengths from 0.5 metres up to 5 metres. Mounting with the included connector set is fast, safe, and secure. As usual, the payloads are specified in a load table for different load figures.

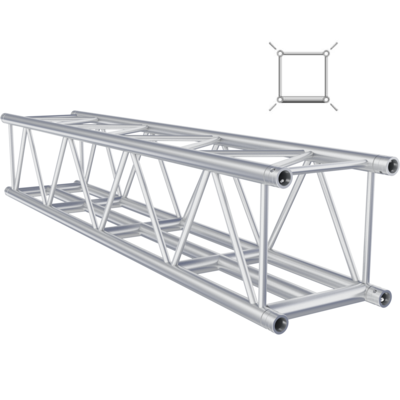

With 48x3 mm main chords and 20x2 mm diagonals, the truss is sufficiently robust for all standard LED screens. By using a 48 mm additional chord, the M390 Truss is fully compatible with the coupler series Cell200, Cell400, and Cell500.
The M390 LED Truss is also able to carry 600kg/m (300kg /field are possible).
Powder coat colour finishes are available on request.
Using the Milos M390 LED Truss means you can prepare and deliver screened events to huge numbers of people secure in the knowledge that all participants will see all the visuals clearly and accurately. Satisfaction guaranteed.
Milos, a brand with 25+ years’ experience with fast, flexible, and affordable quality solutions. “MILOS. Works Better”
• Features a central bar for the safe, easy and balanced
hanging of LED screens
• Available in 0.5m, 1m, 1.5m, 2m, 2.5m, 3m, 4m
and 5m lengths
• Quick, simple and secure assembly

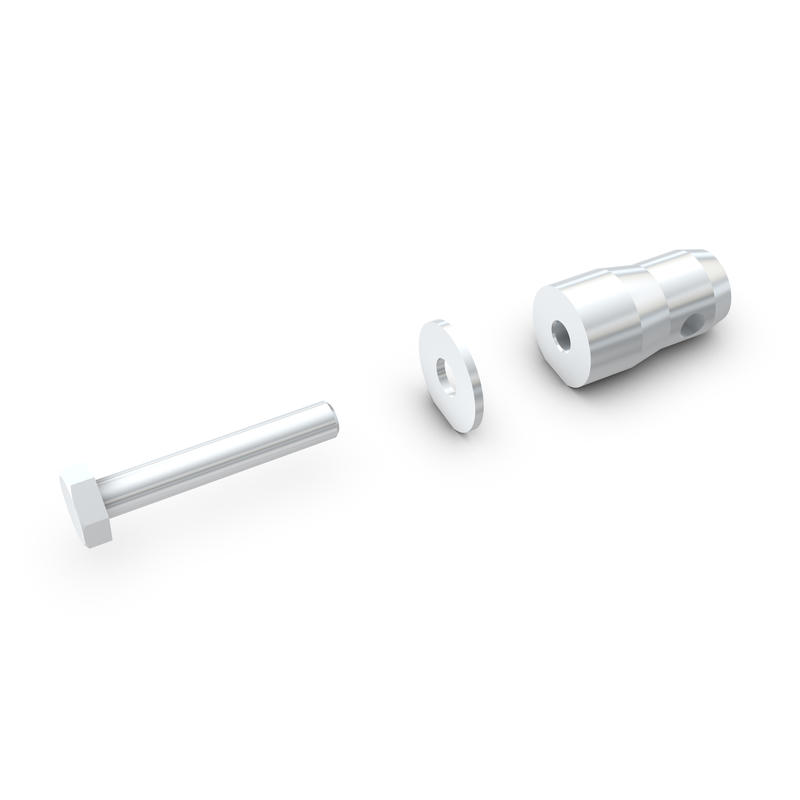

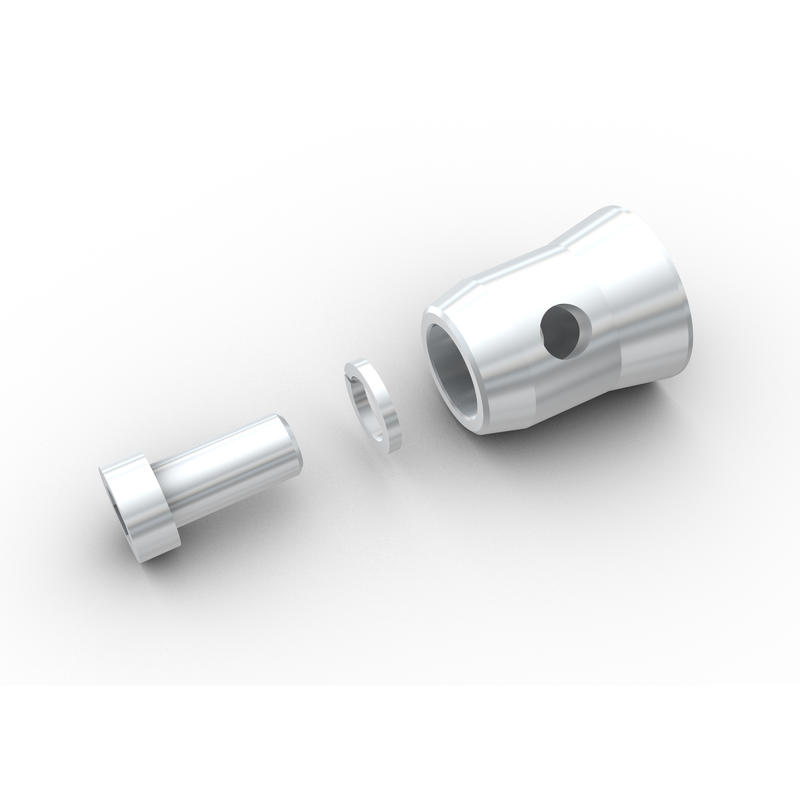

• Connection kit supplied with every truss length

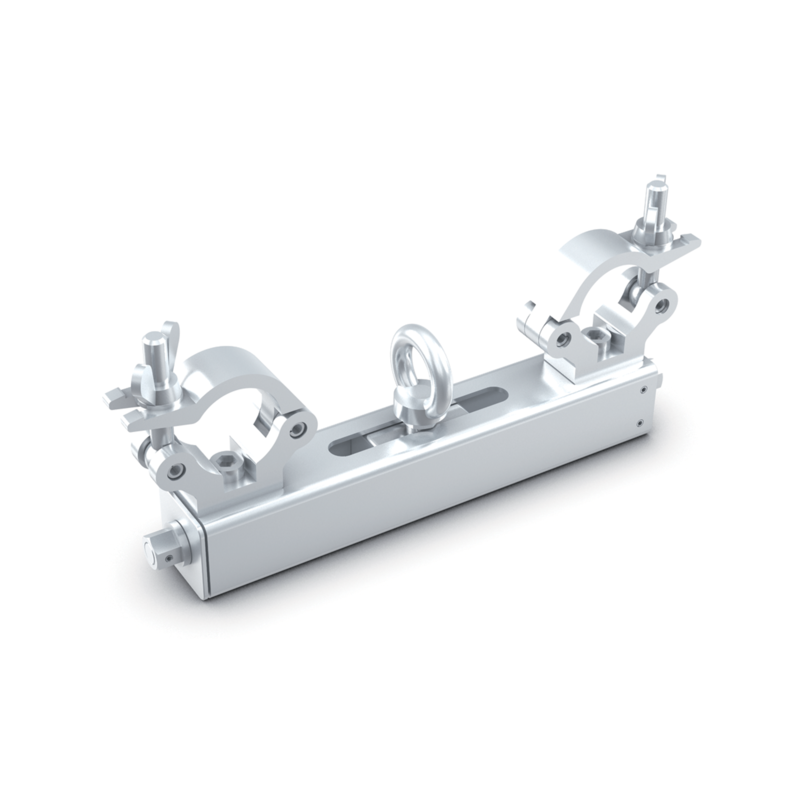

• Compatible with 200/400/500 series cell clamps
• Powder coat colour finish available on request
