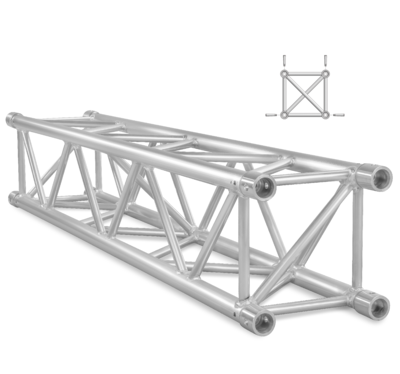

M400 - Mid Range series with high end performance

Strong and reliable heavy-duty truss series for the stage and rental markets featuring pin holes at 90 degree angles to the ground for convenient access on flat surfaces.
Select format:
QuatroRect
Code
QTO
Main Tube
50 x 4 mm
Braces
25 x 3 mm
Available Length
0,5 - 4 m
Max. SWL
4494 kg
Size
358 x 358 mm
Span
20 m

Download PDF

Basic info

Description

M400 has been specifically designed for heavy-duty applications and is ideally suited for the truss stage and rental markets. Pin holes are located at a 90 degree angle to the ground for convenient access when truss is lying on a flat surface. Trust the strength and reliability of the M400 for your events that require an outdoor stage or concert stage.

Call or e-mail us today for more information or to request a quote.



Key benefits

  • Compact medium-duty M400 Series truss range
  • Great free-span & loading characteristics (up to 20m / 65.61 ft)
  • Square or compact rectangular format for low volume
  • Connection kit supplied with every truss length & junction
  • Super-size conical connection for maximum rigidity
  • Cell clamp 200 / 400 / 500 / 600 series compatible
  • User-friendly tapered pin holes with 90 degree orientation to ground when laid flat for ease of assembly
  • Powder coat colour finish available on request

Tables

M400 - Standard lengths and weights available
  0.5 m 1 m 1.5 m 2 m 2.5 m 3 m 4 m
Rect 7.9 kg 11.9 kg 15.9 kg 19.61 kg 23.61 kg 27.61 kg 35.1 kg
Quatro 8.5 kg 13.1 kg 17.6 kg 21.91 kg 26.4 kg 31.15 kg 39.6 kg
