4GX91 rectangular3m length truss
4GX-91-3000|3m

4GX91 rectangular3m length truss

The 4GX-91 is the largest beam format available from our fork connection range It has been optimised for maximum free-span and loading specifications.

Get more info or quote

Key Benefits

Ultra-high capacity fork-connection series
Super heavy-guage main tube 60x6mm (2 3/8" x 1/4")
Great free-span & loading characteristics (up to 42m / 137.79ft)

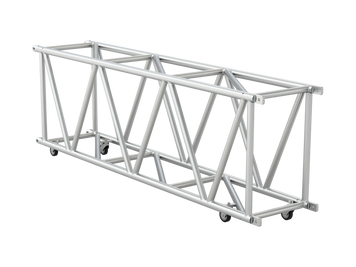

Transit wheels fitted for ease of transportation & setup
All components supplied complete with connection accessories
Compatible with 300 series cell clamps
Powder coat colour finish available on request

4GX91 rectangular3m length truss

The 4GX-91 is the largest beam format available from our fork connection range. It has been optimised for maximum free-span and loading specifications. Our super heavy gauge 60 x 6mm (2.34" x 0.23") main tube profile and giant fork-end connections create truss that is ready for the toughest and most challenging rigging duties. You can rest assured that the strength and quality of the 4Gx-91 can handle whatever trussing duties you can throw at it

Dimensions

Length (mm)
3070.0
Width (mm)
1017.0
Height (mm)
610.0
Main Chord Size (mm)
60x6
Brace Size (mm)
48x4,5

Others

Material
Aluminium
Weight per meter (kg)
26.2
Connection system
fork
Pin Type
GX
Truss Integrated Ladder
true
Standard Color
Natural Aluminium
Optional Color
true
Cell Clamps Compatibility
300
