Key Benefits

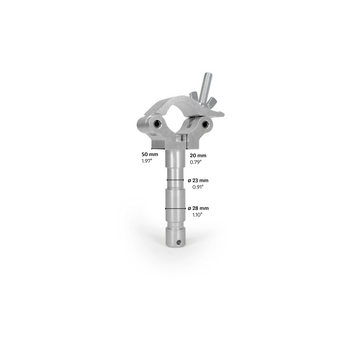

Clamp 201 supplied with fixed TV spigot
The CELL217 clamp is a versatile clamp based on the CELL201 clamp design and supplied with a fixed TV spigot for mounting lighting and stage equipment. It is rated with a safety factor of 8:1 in accordance with DGUV-17/BGV C1 (WLL1: 200 kg (440 lbs)) and 4:1 in accordance with 2006/42/EC (WLL2: 400 kg (881 lbs)), ensuring safe and reliable use in professional rigging and truss applications.
Dimensions
- Length (mm)
- 106.0
- Width (mm)
- 50.0
- Height (mm)
- 243.0
- Tube diameter (mm)
- 48-51
- Cell body width (mm)
- 50.0
Others
- Material
- High Tensile Aluminium
- WLL (kg)
- 200.0
- Clamp type
- Basic With Spigot
- Fixing method
- Regular
- Self-weight (kg)
- 1.11
