Clamp with lifting eye - SWL 160kg(SF8:1) for 32-35mm tube anodized
CELL133|anodized

Clamp with lifting eye - SWL 160kg(SF8:1) for 32-35mm tube anodized

Clamp, made from high-tensile aluminium alloy, with steel lifting eye. WLL 160 kg per DGUV V17/BGV C1, 2006/42/EC.

Get more info or quote

Key Benefits

• Designed to suit 48–51-mm (1.89–2.01-in) diameter tubes
• Supplied with M12 eye bolt and wingnut
• Precision-extruded high-tensile aluminium alloy
• Mounting hole suitable for up to 13-mm (0.51-in) bolts
• DGUV V17 / BGV C1 rating
• Polished surface with micro-percussion marking
• Compatible with M290 / M390 / M400 / M520 / M760 / 4 GS-35 / 4GS-50 / 4GS-62 series truss

Clamp with lifting eye - SWL 160kg(SF8:1) for 32-35mm tube anodized

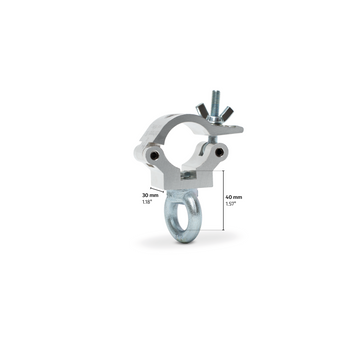

The CELL133 - anodized clamp with lifting eye is a robust and reliable rigging solution crafted for 32–35-mm (1.26–1.38-in) diameter tubes, perfect for exhibitions, displays and structural truss systems. Featuring a steel lifting eye, this clamp ensures secure and straightforward attachment of ropes or cables for lifting and suspension tasks. Made from precision-extruded high-tensile aluminium alloy, it combines lightweight portability with exceptional strength. With a safe working load (WLL) of 160 kg (353 lbs) at a safety factor of 8:1 in accordance with DGUV V17/BGV C1 and additional certification for a safety factor of 4:1 in accordance with 2006/42/EC, this clamp meets rigorous safety standards for professional use.

Dimensions

Length (mm)
64.0
Width (mm)
30.0
Height (mm)
112.0
Tube diameter (mm)
32-35
Cell body width (mm)
30.0

Others

Material
High Tensile Aluminium
WLL (kg)
160.0
Clamp type
Basic With Lifting Eye
Fixing method
Regular
Self-weight (kg)
0.7
