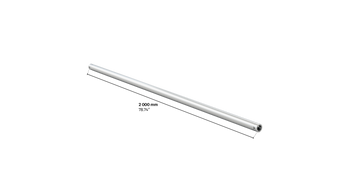

M100B single tube 2m length
M100B single tube 2m length
TubeB2000

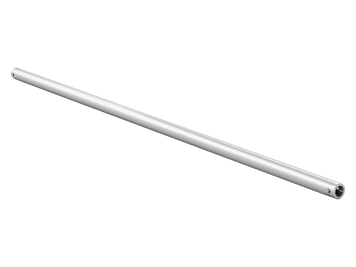

M100B single tube 2m length

M100 Single Tube is a stylish, modular pipe solution designed for hanging and draping applications It features a single welded tube.

Get more info or quote

Key Benefits

Compatible with 200 / 400 / 500 / 600 series cell clamps
Stylish modular Pipe & Drape solution
Connection kit supplied with every welded tube
Single tube quick connection construction
Stand-alone or integrated within truss structures
Powder coat colour finish available on request

M100B single tube 2m length

M100 Single Tube is a stylish, modular pipe solution designed for hanging and draping applications. It features a single welded tube with a quick-connection construction The system can be used as a stand-alone element or integrated into truss structures. Each tube is supplied with a connection kit, is compatible with 200/400/500/600 series clamps, and is available with an optional powder-coated colour finish on request.

Dimensions

Length (mm)
0.0
Width (mm)
0.0
Height (mm)
0.0
Main Chord Size (mm)
50x2
Brace Size (mm)
N/A

Others

Material
Aluminium
Weight per meter (kg)
1.0
Connection system
conical
Truss Connector
CCB
Pin Type
PB
Standard Color
Natural Aluminium
Optional Color
true
Cell Clamps Compatibility
200, 400, 500, 600
Beam on two supports (Continuous tube without any modifications)
Spanmft0.501.641.003.281.504.922.006.562.508.203.009.84
Centre Point Load (CPL)kglbs429.00945.78214.00471.79142.00313.05106.00233.6985.00187.3970.00154.32
Deflectionmmin2.000.087.000.2816.000.6329.001.1445.001.7865.002.56
Third Point Load (TPL)kglbs322.00709.88160.00352.73107.00235.8980.00176.3663.00138.8952.00114.64
Deflectionmmin2.000.089.000.3521.000.8237.001.4658.002.2883.003.27
Uniformly Distributed Load (UDL)kg/mlbs/ft1 719.001 155.00429.00288.00190.00127.50106.0071.0068.0045.5047.0031.50
Deflectionmmin2.000.089.000.3520.000.7936.001.4256.002.2081.003.19
Cantilever
Point load at the endkglbs107.00235.8953.00116.8435.0077.1626.0057.3221.0046.2917.0037.47
Deflectionmmin7.000.2829.001.1466.002.60117.004.60185.007.28269.0010.59
Beam on two supports (Tube with one connector at any point of the length)
Spanmft0.501.641.003.281.504.922.006.562.508.203.009.84
Centre Point Load (CPL)kglbs224.00493.85112.00246.9274.00163.1455.00121.2544.0097.0036.0079.37
Deflectionmmin1.000.044.000.169.000.3515.000.5924.000.9434.001.34
Third Point Load (TPL)kglbs168.00370.3884.00185.1955.00121.2541.0090.3933.0072.7527.0061.73
Deflectionmmin1.000.045.000.1911.000.4319.000.7530.001.1843.001.69
Uniformly Distributed Load (UDL)kg/mlbs/ft898.00603.00224.00150.5099.0066.5055.0037.0035.0023.5024.0016.00
Deflectionmmin2.000.085.000.197.000.2810.000.3912.000.4715.000.59
Cantilever
Point load at the endkglbs56.00123.4628.0061.7318.0039.6813.0028.6611.0024.259.0019.84
Deflectionmmin4.000.1615.000.5935.001.3862.002.4499.003.90145.005.70
Loading table legend and notes
All truss loading calculations are based on:
Truss supported or suspended at both ends • Static loading only • Loads applied at the node points • Self-weight of the truss is included in all listed load capacities • Spans consisting of different truss lengths • Interaction of bending moment and shear force at connector is considered • Structural analysis based on EN 1999 • All loading data should be multiplied by 0.85 to comply with BS 7905-2 and ANSI E1.2-2006 • For any other application, or in case of an assembled structure, contact MILOS or a structural engineer • Safety factors used: self-weight 1.35 / variable loads 1.5
