M222 trio 3way vertical t-piece truss corner apex up
ATM35B|3wayT

M222 trio 3way vertical t-piece truss corner apex up

The ATM37B|3wayT corner piece is designed for the M222 Trio conical truss system.

Get more info or quote

M222 trio 3way vertical t-piece truss corner apex up

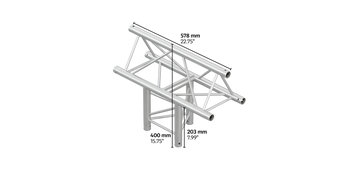

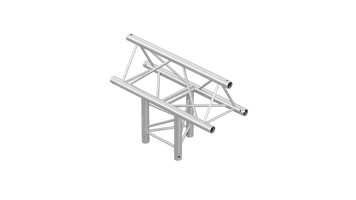

The ATM35B|3wayT corner piece is designed for the M222 Trio conical truss system. This essential component allows for precise right-angle configurations in your truss structures, ensuring stability and flexibility in design. Crafted from high-quality aluminium, the ATM35B|3wayT inherits the M222 system's renowned outstanding weight-loading capabilities while maintaining a small size and lightweight profile. Each unit comes with a connection kit for quick and secure assembly, making it an ideal choice for professionals in stage production, exhibitions, and event setups. A powder coat color finish is available on request, allowing for customization to match your project's aesthetic.

Dimensions

Length (mm)
604.0
Width (mm)
222.0
Height (mm)
400.0
Main Chord Size (mm)
32x1,5
Brace Size (mm)
10x1,5

Others

Material
Aluminium
Connection system
conical
Pin Type
PM
Standard Color
Natural Aluminium
Optional Color
true
Cell Clamps Compatibility
130
