Key Benefits

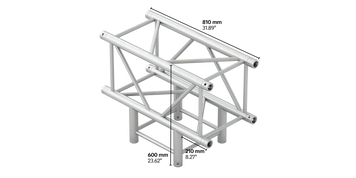

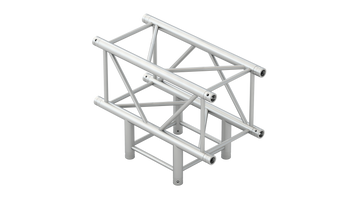

M390L quatro 3way t-piece truss corner HD
Elevate your truss designs with the QTL35|3wayT HD Aluminium Truss Corner. This corner piece is engineered for the M390 Quatro truss system, offering exceptional versatility for both small and large applications. The precise design enables strong, reliable configurations, providing flexibility and strength for a wide range of creative truss structures. Crafted from high-quality aluminium. Compatible with the M390 Quatro truss system and 200/400/500/600 series cell clamps, it offers versatile attachment options. Each unit includes a connection kit for fast, secure assembly. Ideal for stage production, exhibitions, and event setups.
Dimensions
- Length (mm)
- 810.0
- Width (mm)
- 388.0
- Height (mm)
- 600.0
- Main Chord Size (mm)
- 48x3
- Brace Size (mm)
- 20x2
Others
- Material
- Aluminium
- Connection system
- conical
- Truss Connector
- CCB
- Pin Type
- PB
- Standard Color
- Natural Aluminium
- Optional Color
- true
- Cell Clamps Compatibility
- 200, 400, 500, 600
