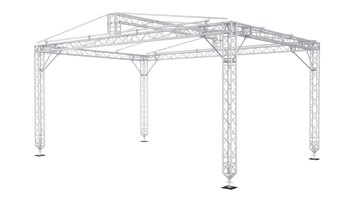

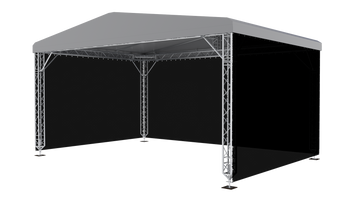

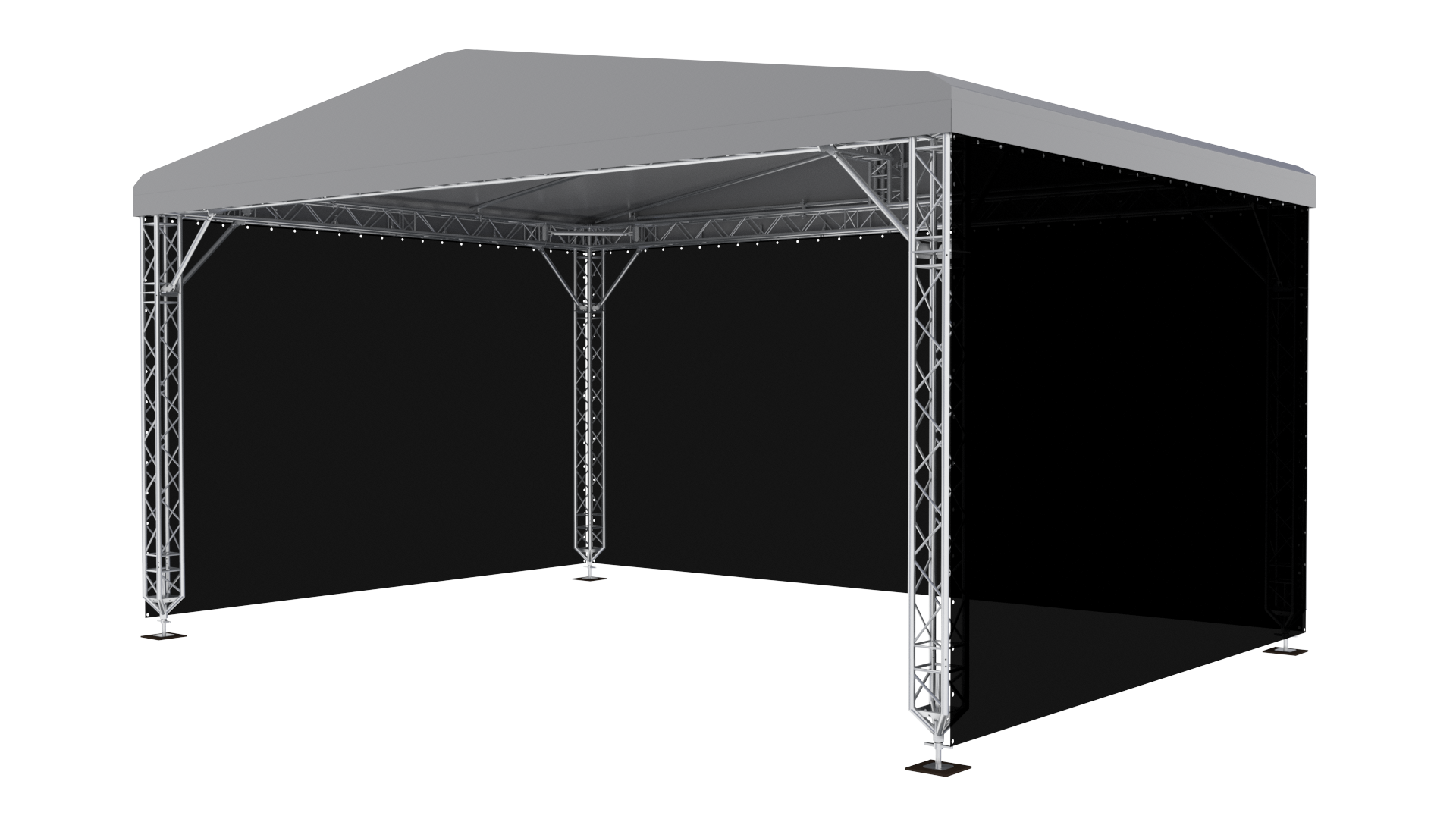

MR0-NGW-B-8x6-3.9m (NGW = No Guy Wires)
The MILOS 8x6m aluminium roof is designed for medium-sized events and requires NO GUY wires in its construction, due to the use of the innovative Corner Brace HD. Not only do you achieve the same stability as roofs with guy wires, but the total time for roof construction is decreased and ballast requirements are reduced.

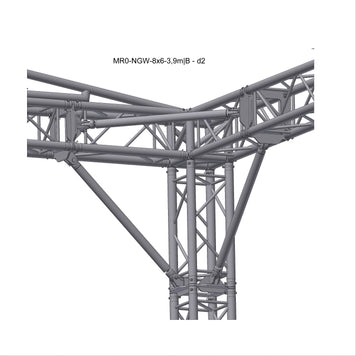

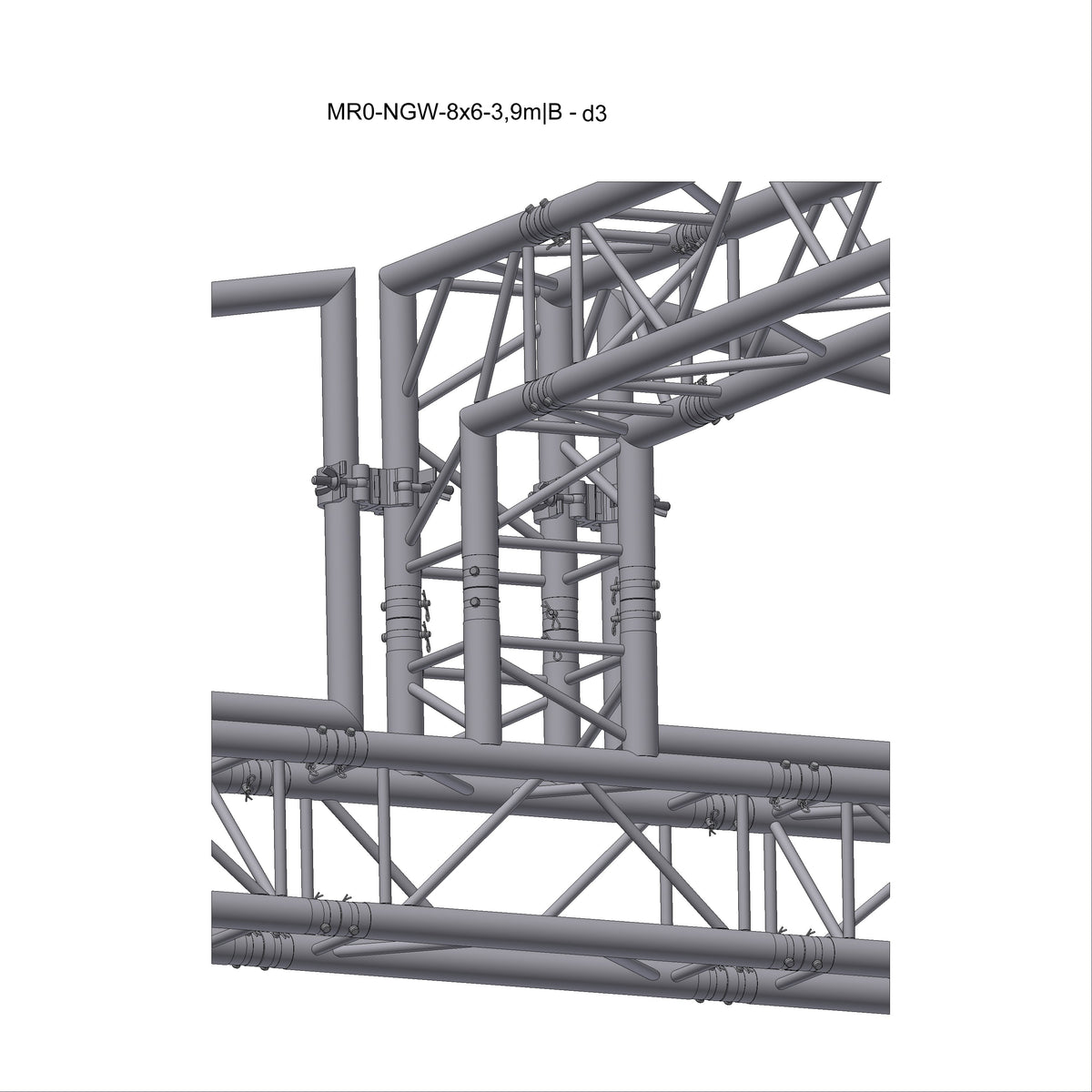

The innovative Corner Brace HD, enables a respectable loading capacity for small / medium size events ( front and back truss 30kg/m, side truss 25kg/m, ridge 10kg/m plus 200kg for the PA). Using our Milos M290 QTVU in this roof allows loading capacity up to 60kg/m plus 300kg per PA).
Dimensions
- Internal width (m)
- 8.16
- Overall external width (m)
- 8.73
- Internal depth (m)
- 5.44
- Overall external depth (m)
- 6.03
- Clearance (m)
- 3.95
- Overall height (m)
- 4.95
Others
- Material
- Aluminium
- Total max. loading capacity (kg)
- 2027.0
- Main grid max. loading capacity (kg)
- 1627.0
- Main grid truss
- M290
- Base
- Spindle Leg
