Key Benefits

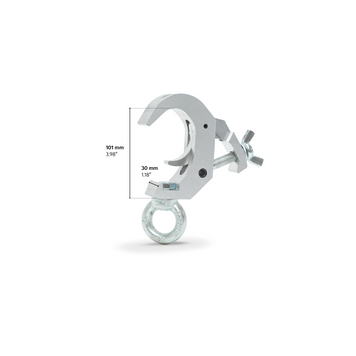

Quick truss clamp with lifting eye-SWL 360kg(SF8:1) for 38-51mm tube
The CELL403 quick clamp is supplied with a steel eye for attaching ropes or cables. Part of the reliable CELL400 clamp series, it is designed for use with tubes with a diameter of 38–51 mm (1.50–2.01 in), making it suitable for a wide range of truss, staging and structural applications.
Supplied with an M12 eye bolt, it ensures secure and reliable fastening. Built for durability and ease of use, the CELL403 quick clamp is a practical solution for professional fabrication and rigging set-ups.
Dimensions
- Length (mm)
- 159.0
- Width (mm)
- 32.0
- Height (mm)
- 171.0
- Tube diameter (mm)
- 38-51
- Cell body width (mm)
- 30.0
Others
- Material
- High Tensile Aluminium
- WLL (kg)
- 360.0
- Clamp type
- Basic With Lifting Eye
- Fixing method
- Quick Hook
- Self-weight (kg)
- 0.75
