Products / Roofs / MDT1 Tent (6x6 m, 5x5m)
Products

Detailed information

Description

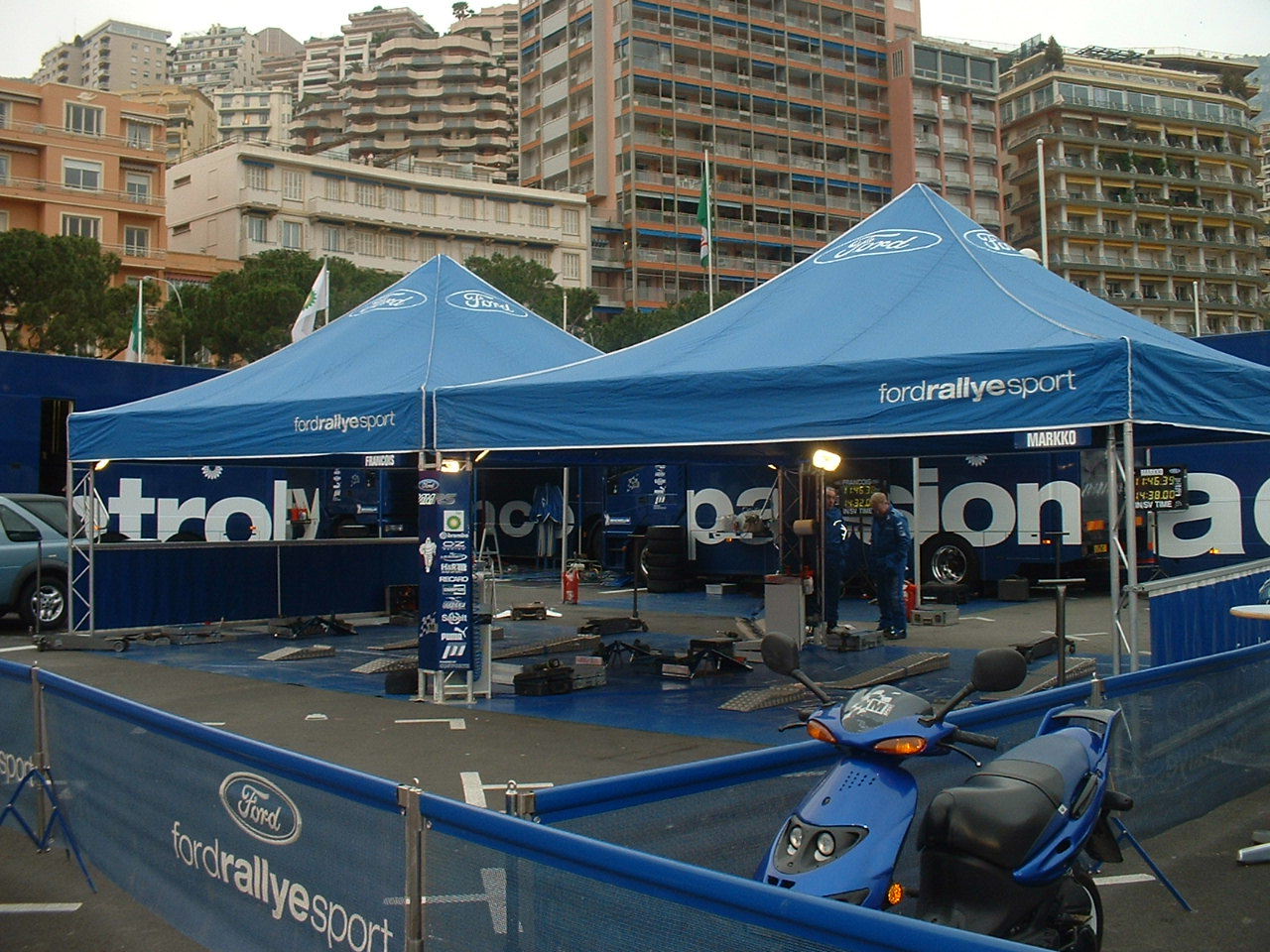

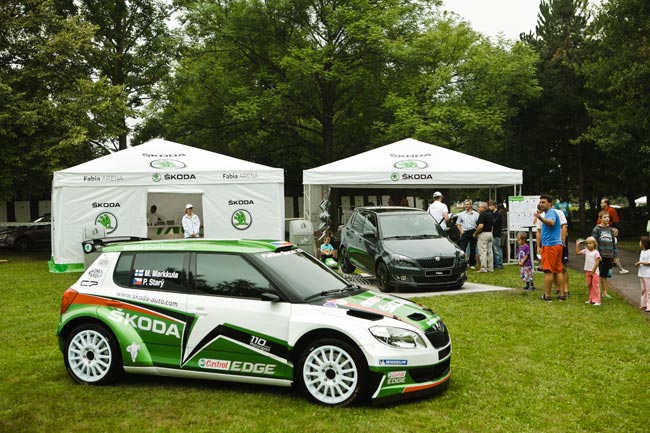

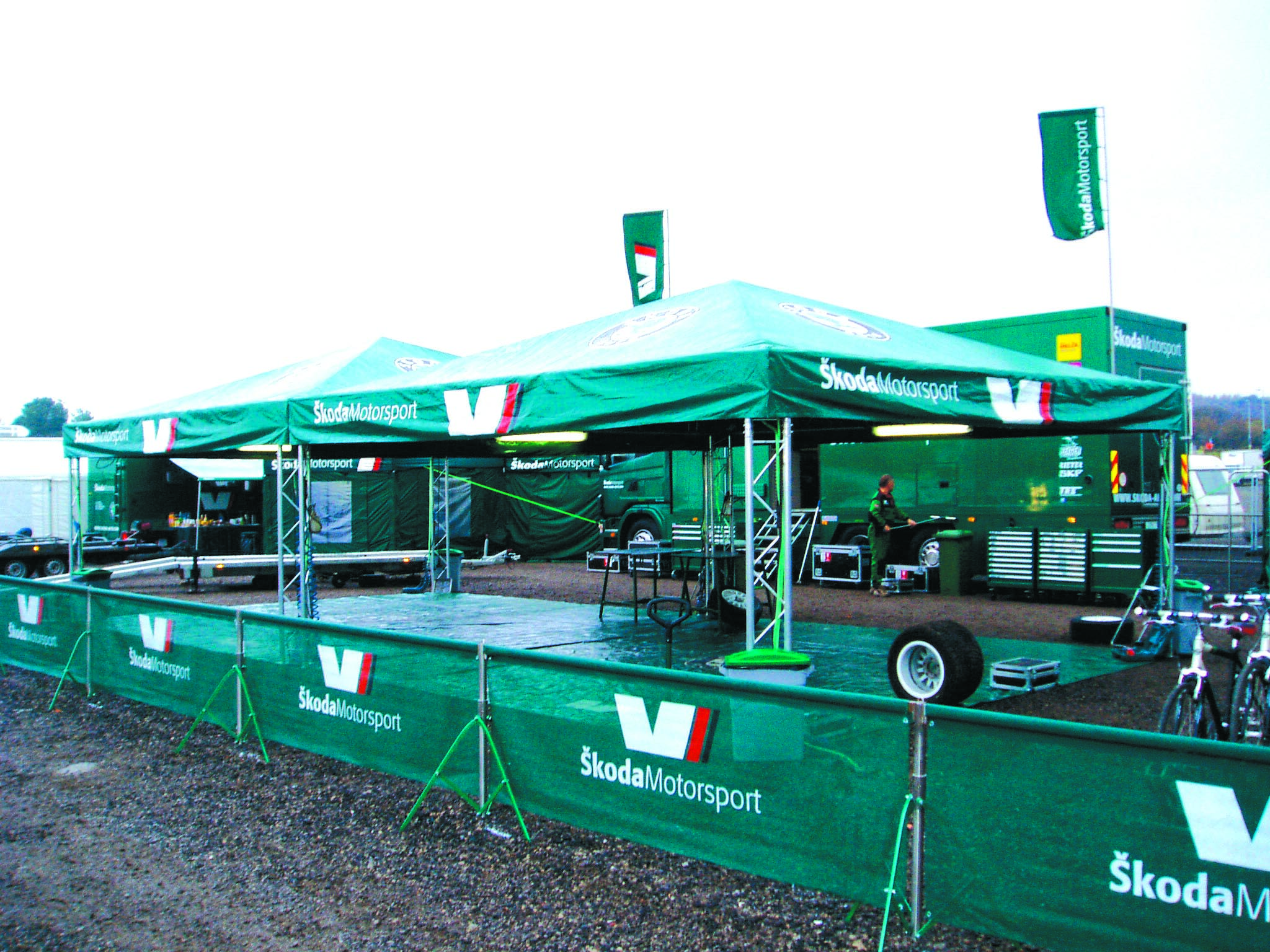

The Milos MDT1 is a quick and easy party tent solution that provides a safe and dry environment for your outdoor events. Perfect for catering, private parties, and a wide range of other outdoor social events.

Call or e-mail us today for more information or to request a quote.

Key benefits

  • Modular M290 series Event-Tent solutions
  • Perfect for sports, temporary events & parties
  • 2-tube Duo construction for lightweight & low volume
  • Fast connection for quick, simple and secure assembly
  • PVC roof covering included
  • Side walls & digital printing covers options available
  • Easy anchoring design
  • Powder coating on request
Technical specifications
Dimensions   Stage size 6x6 m 19.7 x 19.7 ft 6x5 m 19.7 x 16.4 ft 5x5 m 16.4 x 16.4 ft
A Internal width 5.56 m 18.24 ft 5.56 m 18.24 ft 4.56 m 14.96 ft
B Overall external width 6.20 m 20.34 ft 6.20 m 20.34 ft 5.20 m 17.06 ft
C Internal depth 5.56 m 18.24 ft 4.56 m 14.96 ft 4.56 m 14.96 ft
D Overall external depth 6.20 m 20.34 ft 5.20 m 17.06 ft 5.20 m 17.06 ft
E Clearance side 2.20 m 7.22 ft 2.20 m 7.22 ft 2.20 m 7.22 ft
F Clearance middle 3.53 m 11.58 ft 3.43 m 11.25 ft 3.34 m 10.83 ft
G Overall height 3.64 m 11.94 ft 3.55 m 11.65 ft 3.45 m 11.32 ft

Loading capacity
Loading capacity   Stage size 6x6 m 19.7 x 19.7 ft 6x5 m 19.7 x 16.4 ft 5x5 m 16.4 x 16.4 ft
Main grid Each corner (x5) 100 Kg 220 lbs 100 Kg 220 lbs 100 Kg 220 lbs
* See structural report for exact load position

Operational specifications
Design standarts DIN 1055-4
DIN 4112
DIN 4113
Actions on structures / wind
Temporary structures
Aluminium constructions
• All our structures are produced as standard under EN 1090 EXC2, including the neccessary guy wires, instruction manual and engineering report
Wind management In service 14m/s - 52km/h - 32.3 mph (Max. gust wind speed)
No side wall canopies are allowed for the data provided
Ballast This can vary from 115kg / 254lbs up to 163kg / 359lbs per column and depends on:
• Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls B1 fire retardant canopy on request, single piece format
Silver-grey; other colours or inside black on request
B1 fire-retardant side nets in compliance with latest Eurocodes
Customized Customisation (i.e. truss configuration, alternative dimensions) on requirement

Transportation data
Self-weight Stage size 6x6 m 19.7 x 19.7 ft 6x5 m 19.7 x 16.4 ft 5x5 m 16.4 x 16.4 ft
* Exact self-weight depends on configuration 170 kg 374 lbs 158 kg 348 lbs 149 kg 328 lbs
Transport volume * Packed in carton boxes and bubble foil 5,00 m3 176 ft3 4,50 m3 159 ft3 4,00 m3 141 ft3

MDT1 Tent (6x6 m, 5x5m)

Quick and easy to assemble party tent for outdoor events, such as catering, private parties, and other social gatherings.
Code
MDT1 6x6m, MDT1 5x5m
Max. Stage Dimensions
6 x 6 m
Max. Clearance
3.64 m
Max. SWL
100 kg
Wind Rating
52km/h (in service)
