Products / Roofs / MR0 No Guy Wires (8x6 m)
Products

Detailed information

Description

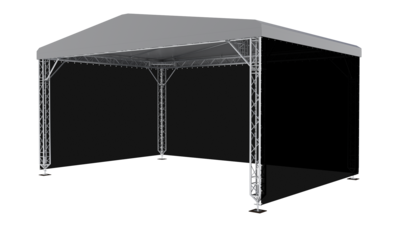

The MILOS 8x6m aluminium roof is designed for medium-sized events and requires NO GUY wires in its construction, due to the use of the innovative Corner Brace HD. Not only do you achieve the same stability as roofs with guy wires, but the total time for roof construction is decreased and ballast requirements are reduced.

The innovative Corner Brace HD, enables a respectable loading capacity for small / medium size events ( front and back truss 30kg/m, side truss 25kg/m, ridge 10kg/m plus 200kg for the PA). Using our Milos M290 QTVU in this roof allows loading capacity up to 60kg/m plus 300kg per PA).












Key benefits

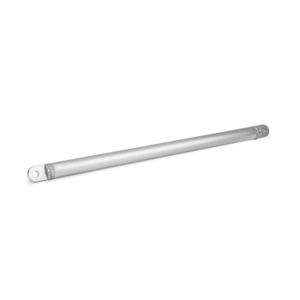

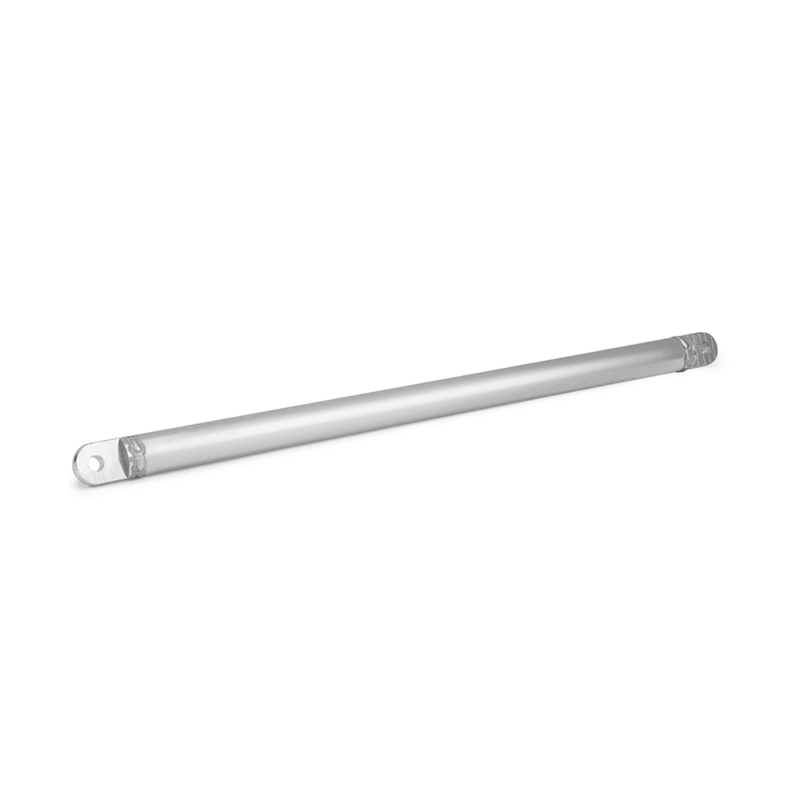

  • No guy wires required due to implementation of Corner Brace HD
  • Decreased times for roof construction
  • Reduced ballast requirements
  • Up to 30 kg/m loading on horizontal truss sections
  • Up to 200kg loads per cantilever
  • Up to 30m/s wind loading in accordance with DIN EN 13814
  • Using  M290 QTVU allows loading capacity up to 60kg/m plus 300kg per PA.
  • Clear area from all sides
  • Adjust to terrain due to screwjack leg 572-950mm

Technical specification
Dimensions   Stage size 8x6 m 26.24x19.68 ft
A Internal width 8.14 m 26.73 ft
B Overall external width 8.73 m 28.64 ft
C Internal Depth 5.44 m 17.85 ft
D Overall external depth 6.26 m  20.53 ft
E Clearance 3.92 m 12.86 ft
F Overall height 4.92 m 16.14 ft

MR0 No Guy Wires (8x6 m)

The MILOS 8x6m aluminium roof is designed for medium-sized events and requires NO GUY wires






Code
MR0 8x6 m
Max. Stage Dimensions
8 x 6 m
MR0 No Guy Wires (8x6 m)
