MILOS. Flexibility Behind Your Show.

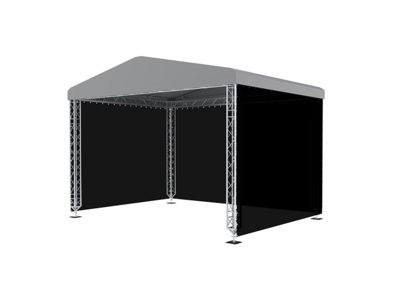

The MILOS 6x5m aluminium roof is designed for medium-sized events and requires NO GUY wires.

30 kg / m loading capacity

Code: MR0 NGW 6x5 m

Size: 6x5 m

Detailed information

Description

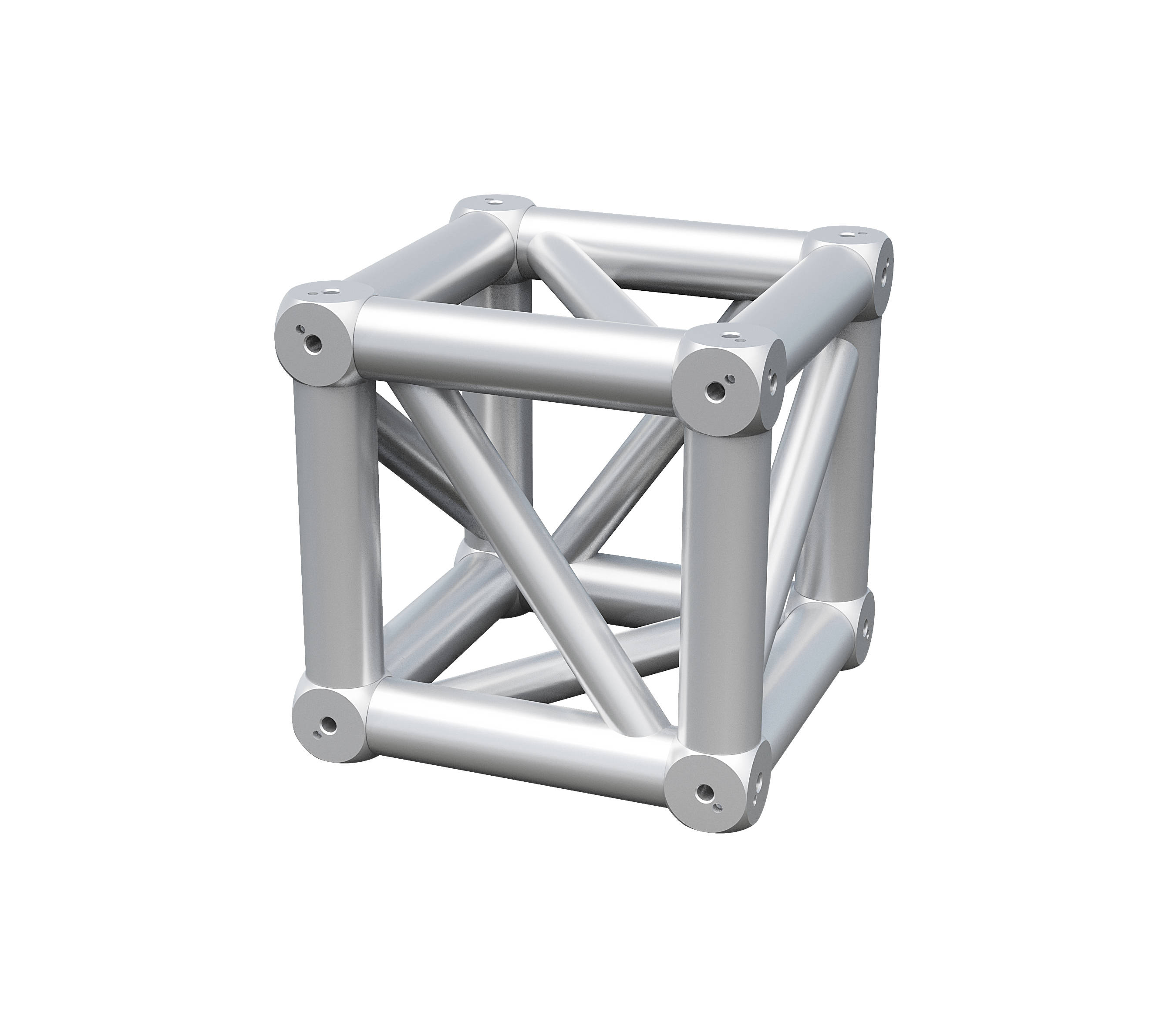

The MILOS MR0 NGW 6x5m aluminium roof incorporates our latest HD Multi-Cube eliminating the need for any wires or corner braces for this set-up. Using HD Multicube in the construction of this roof allows loading capacity of up to 30 kg /m plus 200kg for the PA. Great size, simple set-up, no hassle.

Key benefits

Decreased times for roof construction
Reduced ballast requirements
No obstacles for artists
Clear entry area from all sides
Loading capacity of up to 30 kg /m plus 200kg for the PA.
Adjust to terrain due to pedestal leg 572-950mm

Downloads

MR0 NGW 6x5

Contact Us

Asia

US East

US West

Get your quote

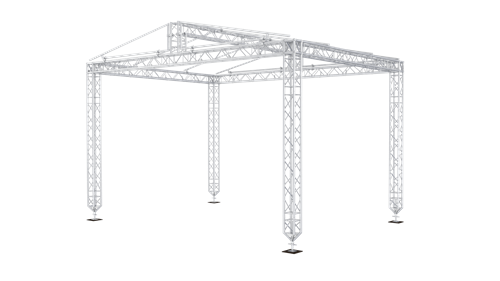

Technical specification
Dimensions		Stage size	6x5 m	19.68x16.40 ft
	A	Internal width	6.13 m	20.11 ft
	B	Overall external width	6.73 m	22.08 ft
	C	Internal Depth	4.42 m	14.50 ft
	D	Overall external depth	5.00 m	16.40 ft
	E	Clearance	3.95 m	12.95 ft
	F	Overall height	4.95 m	16.24 ft
