Detailed information

Description

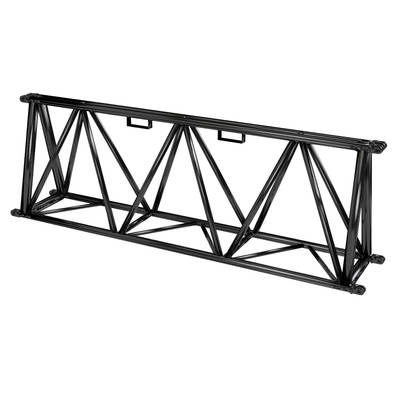

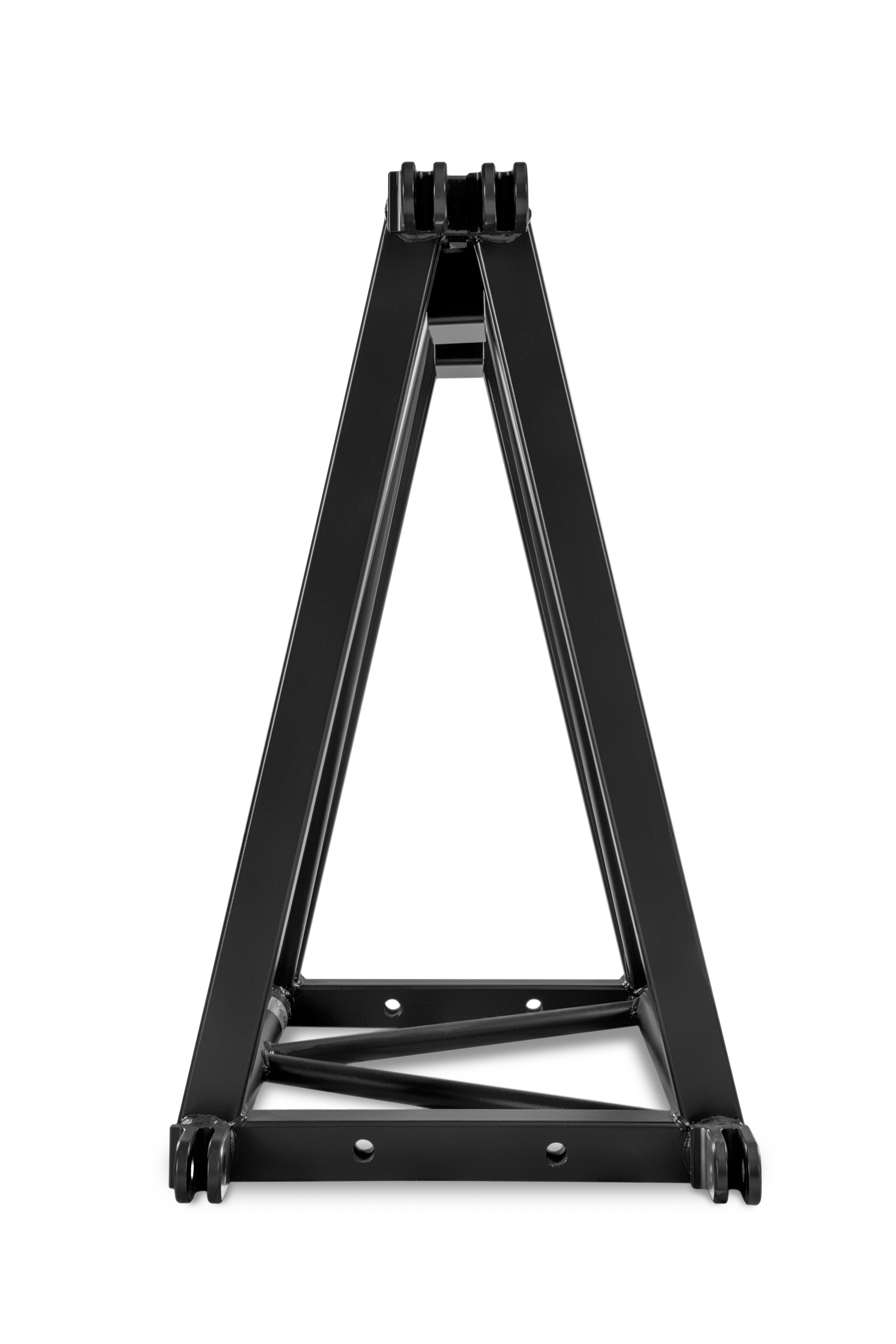

The 1010 x 580 mm MILOS 1010 Trio ultra-strength steel truss is designed to thread the diagonals of the 1450 rectangular steel truss as a sub-carrier. This makes it the perfect complement to our steel truss range.

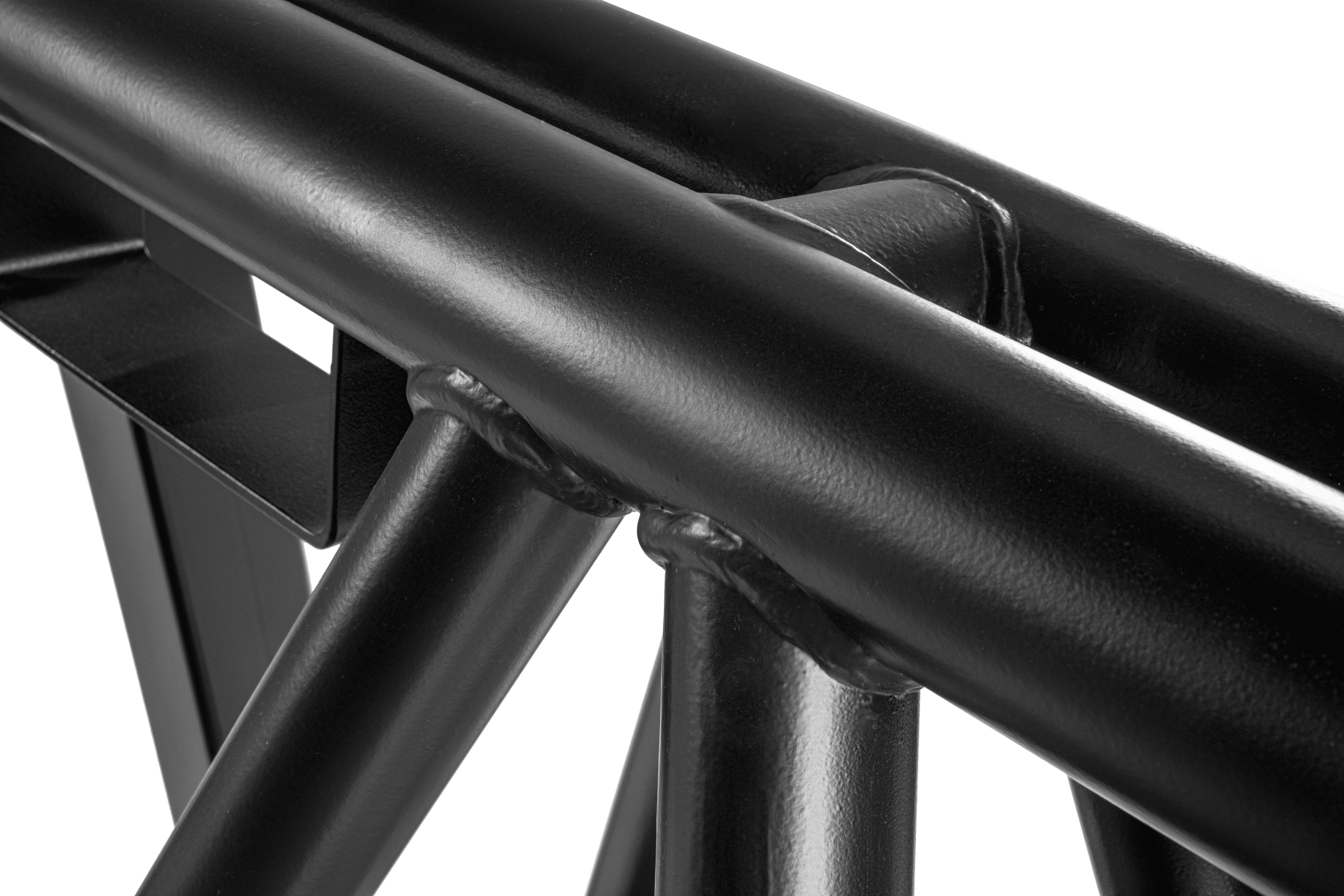

Made from special, high strength steel alloys, it has 2.7 times more strength against bending compared to aluminium truss with similar dimensions at just double the weight. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.

Key benefits

  • Can be inserted as cross truss into the larger S-M1450 steel truss
  • Use of bespoke, high-strength steels
  • Orientation-free connector arrangement for ease of use
  • Greatly increases load capacity when used in place of aluminium truss with similar dimensions
  • Optimised weight to strength ratio
  • Pinned connectors for increased strength
  • Integrated forklift pick up points
  • Matt black, impact-resistant industrial paint finish
  • Optimised webbing pattern for ease of use when assembling cross trusses
  • End braces with 22mm holes for lateral connection
Standard lengths and weights available
Lengths 1 m 2 m 2.5 m 3 m 4 m 5 m 6 m
Weights 95.00 kg 140.90 kg 159.00 kg 176.70 kg 217.60 kg 258.30 kg 299.00 kg

Loading chart
Span 10 m 15 m 20 m 25 m 30 m 35 m 40 m 45 m
Point load 14407 kg 9342 kg 6731 kg 5101 kg 3962 kg 3104 kg 2421 kg 1854 kg
Deflection 23 mm 52 mm 94 mm 150 mm 221 mm 308 mm 414 mm 540 mm
Two point load 10805 kg 7007 kg 5048 kg 3826 kg 2972 kg 2328 kg 1815 kg 1391 kg
Deflection 29 mm 66 mm 118 mm 184 mm 267 mm 366 mm 481 mm 613 mm
Three point load 7204 kg 4671 kg 3366 kg 2551 kg 1981 kg 1552 kg 1210 kg 927 kg
Deflection 27 mm 62 mm 110 mm 173 mm 252 mm 347 mm 459 mm 589 mm
Four point load 5451 kg 3893 kg 2805 kg 2126 kg 1651 kg 1293 kg 1009 kg 773 kg
Deflection 26 mm 65 mm 116 mm 182 mm 264 mm 362 mm 476 mm 608 mm
Distributed load 2180 kg 1246 kg 673 kg 408 kg 264 kg 177 kg 121 kg 82 kg
Deflection 22 mm 65 mm 115 mm 181 mm 262 mm 360 mm 474 mm 606 mm

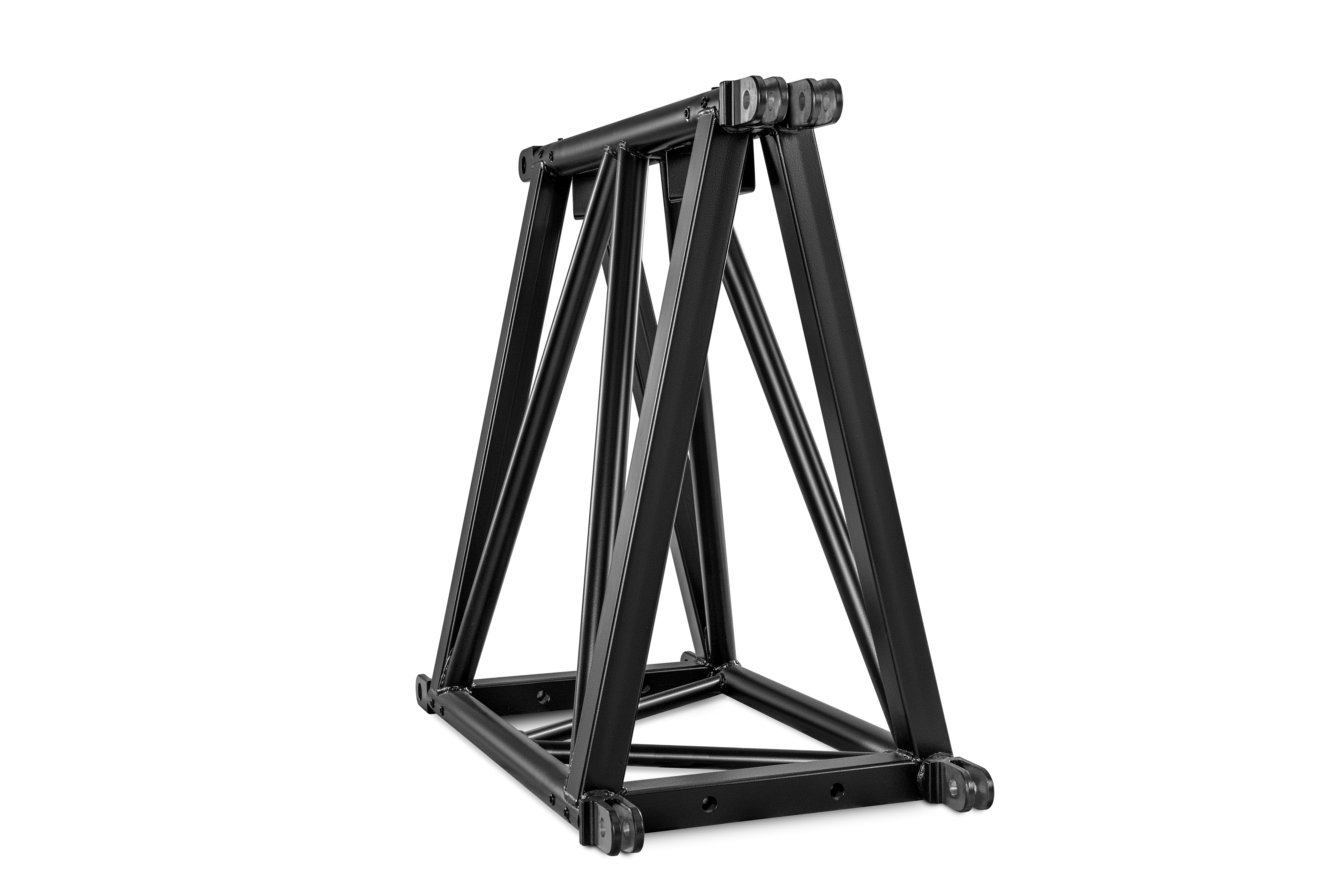

S-M1010 Trio Steel Truss

“Extreme” power in a 1010 x 580 mm TRIO FORMAT
Code
S-FTD
Width
580 mm
Height
1010 mm
Main Tube
60.3 x 4 mm
Braces
48.3 x 3 mm / 33.7 x 2.6 mm
Span
45 m
Self Weight
59 kg/m (for 3m piece)
S-M1010 Trio Steel Truss
