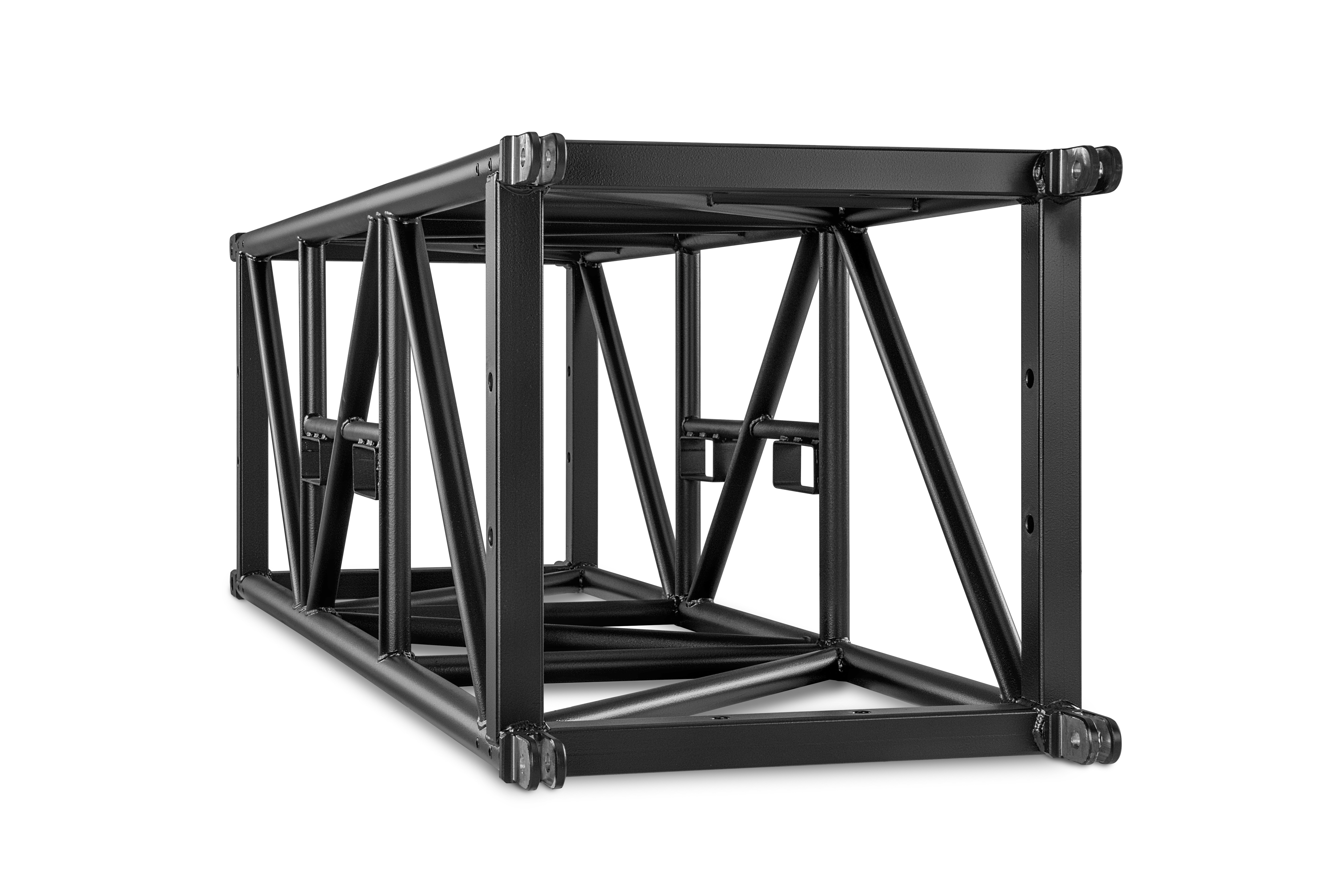

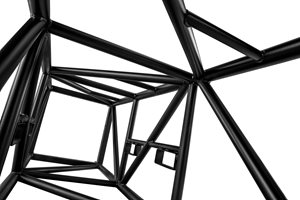

The 780 x 780 mm MILOS 780 Quatro ultra-strength steel tower truss is made from special, high strength steel alloys and is designed for extreme ground supports or roof systems. It handles loads that are many times heavier, and at increased heights, than those supported by similar sized aluminium truss, and all at just double the weight.

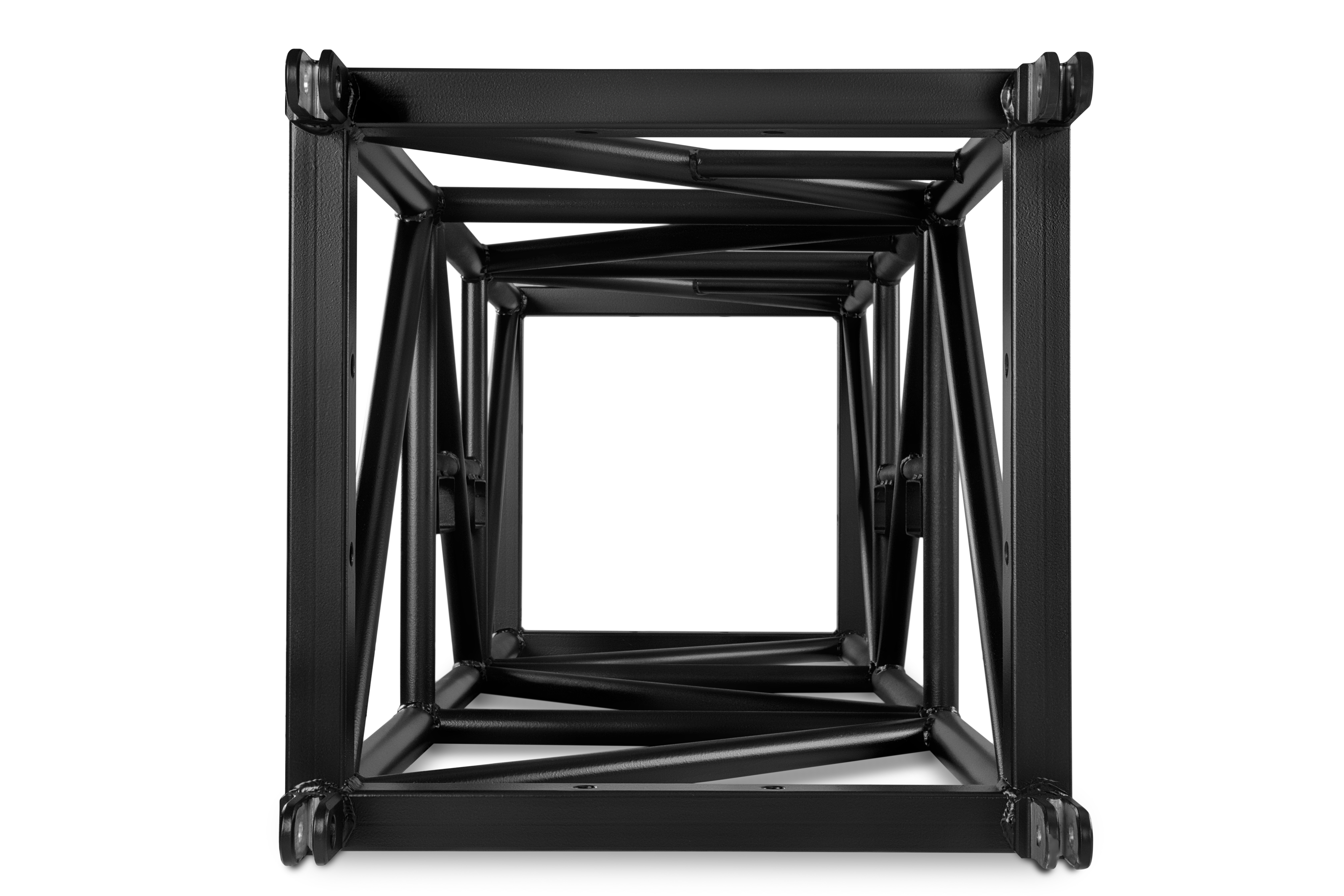

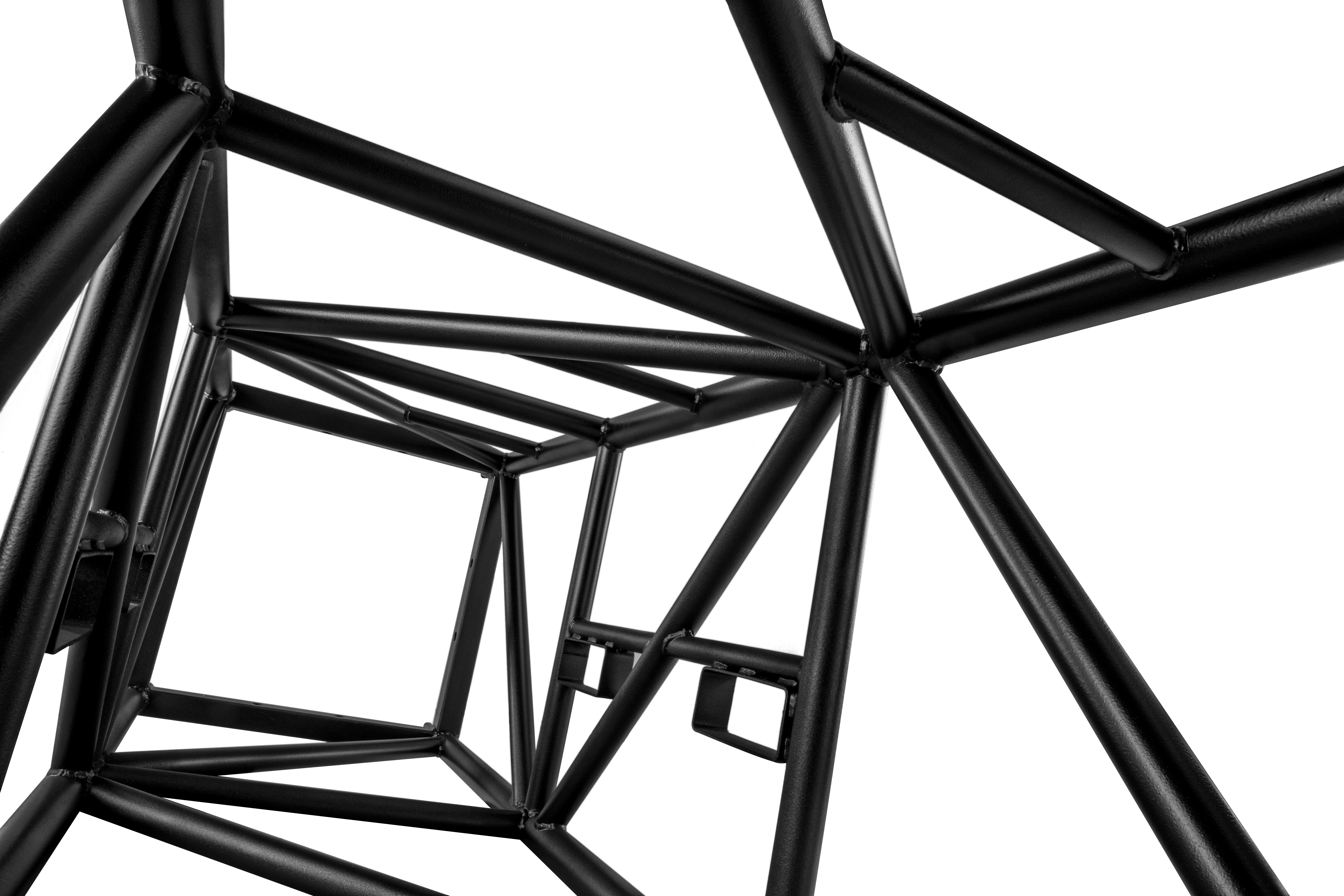

The design includes connection points on four sides of the end frame and each section has horizontal tubing every 36 cm for ease of climbing. Integrated forklift pick up points allow for movement of truss sections into position. As with all steel truss from MILOS, it features double fork couplers, zinc coated pins and has highly impact-resistant matt black paint.

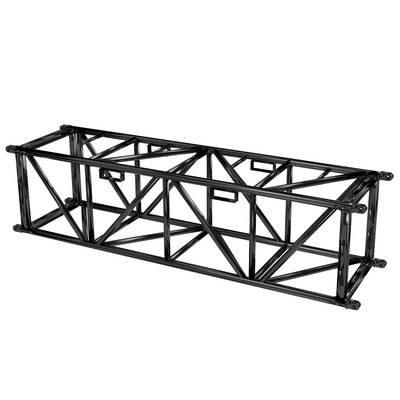

S-MT-Q - Steel tower

Key benefits

  • Use of bespoke, high-strength steels
  • Orientation-free connector arrangement for ease of use
  • Greatly increases load capacity when used in place of aluminium truss with similar dimensions
  • Optimised weight to strength ratio
  • Pinned connectors for increased strength
  • Integrated forklift pick up points
  • Matt black, impact-resistant industrial paint finish
  • End braces with 22mm holes for lateral connection
  • Connection kit supplied with every truss length
Standard lengths and weights available
Lengths 1 m 2 m 2.5 m 3 m 4 m 5 m 6 m
Weights 102.20 kg 164.90 kg 181.60 kg 209.60 kg 289.60 kg 304.00 kg 348.40 kg

Loading chart
Span 7 m 10 m 15 m 20 m 25 m 30 m 35 m 40 m
Point load 15719 kg 10843 kg 6966 kg 4949 kg 3676 kg 2774 kg 2085 kg 1529 kg
Deflection 15 mm 30 mm 69 mm 126 mm 201 mm 298 mm 418 mm 566 mm
Two point load 9470 kg 8132 kg 5225 kg 3712 kg 2757 kg 2081 kg 1564 kg 1147 kg
Deflection 15 mm 39 mm 87 mm 155 mm 244 mm 354 mm 485 mm 639 mm
Three point load 6313 kg 5421 kg 3483 kg 2474 kg 1838 kg 1387 kg 1043 kg 765 kg
Deflection 14 mm 36 mm 81 mm 146 mm 230 mm 335 mm 463 mm 615 mm
Four point load 4735 kg 4518 kg 2903 kg 2062 kg 1532 kg 1156 kg 869 kg 637 kg
Deflection 14 mm 38 mm 86 mm 153 mm 241 mm 350 mm 481 mm 635 mm
Distributed load 2706 kg 1875 kg 929 kg 495 kg 294 kg 185 kg 119 kg 76 kg
Deflection 11 mm 33 mm 85 mm 152 mm 240 mm 348 mm 478 mm 632 mm

S-M780 Quatro Steel Truss

780 mm tower truss sections that let you take ultra heavy loads ultra high
Code
S-QTQT
Width
780 mm
Height
780 mm
Main Tube
60.3 x 4 mm
Braces
48.3 x 3 mm
Span
40 m
Self Weight
70 kg/m (for 3m piece)
