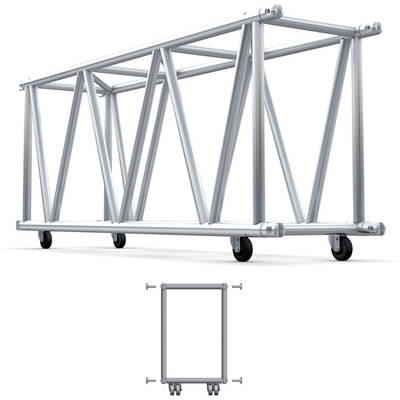

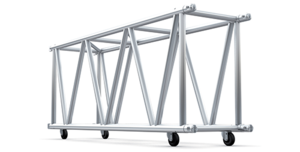

4GX-91 - Ultra High Capacity Fork Connection Series

Largest beam format of our fork connection range that's optimised for maximum free-span and loading specifications.
Main Tube
60 x 6 mm
Braces
48 x 4,5 mm
Available Length
1.2 - 3 m
Size
610 x 914 mm
Span
24 m

Download PDF

Basic info

Description

The 4GX-91 is the largest beam format available from our fork connection range. It has been optimised for maximum free-span and loading specifications. Our super heavy gauge 60 x 6mm (2.34" x 0.23") main tube profile and giant fork-end connections create truss that is ready for the toughest and most challenging rigging duties. You can rest assured that the strength and quality of the 4Gx-91 can handle whatever trussing duties you can throw at it.

Call or e-mail us today for more information or to receive a quote.

Key benefits

  • Ultra-high capacity fork-connection series
  • Super heavy-guage main tube 60x6mm (2 3/8" x 1/4")
  • Great free-span & loading characteristics (up to 40m / 131.23ft)
  • Transit wheels fitted for ease of transportation & setup
  • All components supplied complete with connection accessories
  • Compatible with 300 series cell clamps
  • Powder coat colour finish available on request

Tables

4GX-91 - Standard lengths and weights available
1.2 m 2.4 m 3 m
24 kg 48 kg 60 kg
