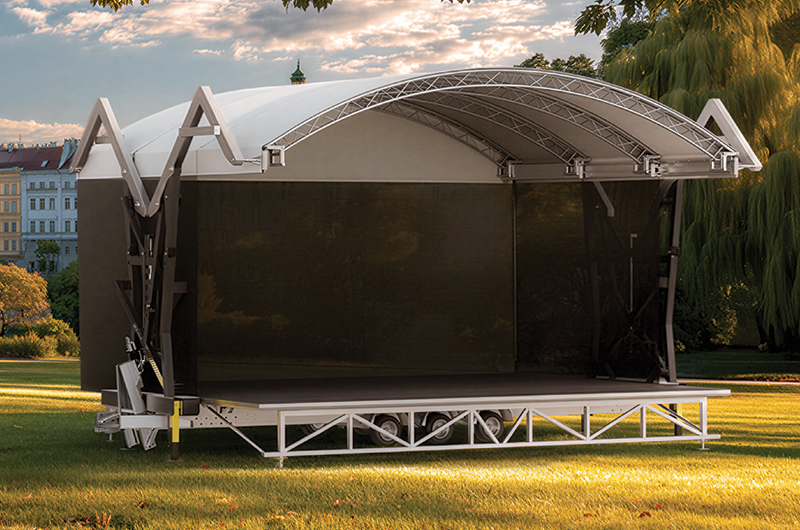

The robust structure allows pre-rigging of the roof up to 800 kg (1763 lbs) with a total loading capacity of 1.1 metric tonnes (2425 lbs). Keeping the weight of the system below 3.5 metric tonnes (7716 lbs) and the transportation height of only 3.2 metres (10.5 ft) simplify transport to the dedicated event location. After unfolding, you have a covered event stage measuring 8 x 6 metres (26.2 x 19.7 ft) for any performance!

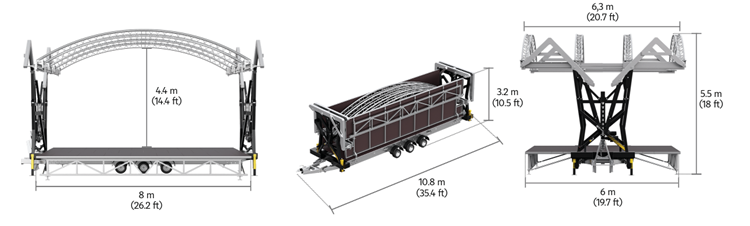

Stage Size: The stage measures 8 x 6 metres (26.2 x 19.7 ft), with maximum viewing angles and no obstacles.
Height: Max. height of 4.4 metres (14.4 ft) above the stage in the arched version.
Simplified set-up and transport
User-friendly operation: Set-up can be carried out by a single person within 30 minutes. The synchronised electric hoists make unfolding quick and easy.
Unique design: The MX Stage stands out. However, it has been designed specifically for plug-and-play use and for premium event visuals.
Transport: The folded system has a height of only around 3.2 metres (10.5 ft) and weighs a total of 3.5 metric tonnes (7716 lbs), making the MX Stage easy to transport to the dedicated event location.
Loading capacity and pre-rigging
Pre-rigging: The lifting mechanism is able to lift up to 800 kg (1763 lbs) of rigging equipment (e.g. lights, speakers).
Loading capacity: The total loading capacity of the roof is 1.1 metric tonnes (2425 lbs), but an additional 500 kg (1102 lbs) can be added with optional PA wings on both sides.
Manufacturing quality by MILOS
Most of the key components such as stage decks, handrails and trusses are from the standard MILOS range, equating to maximum quality and reliability.
