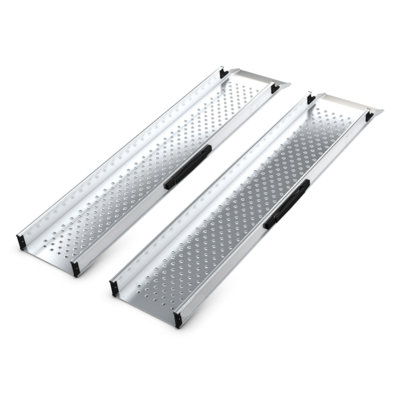

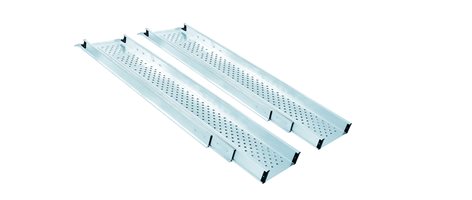

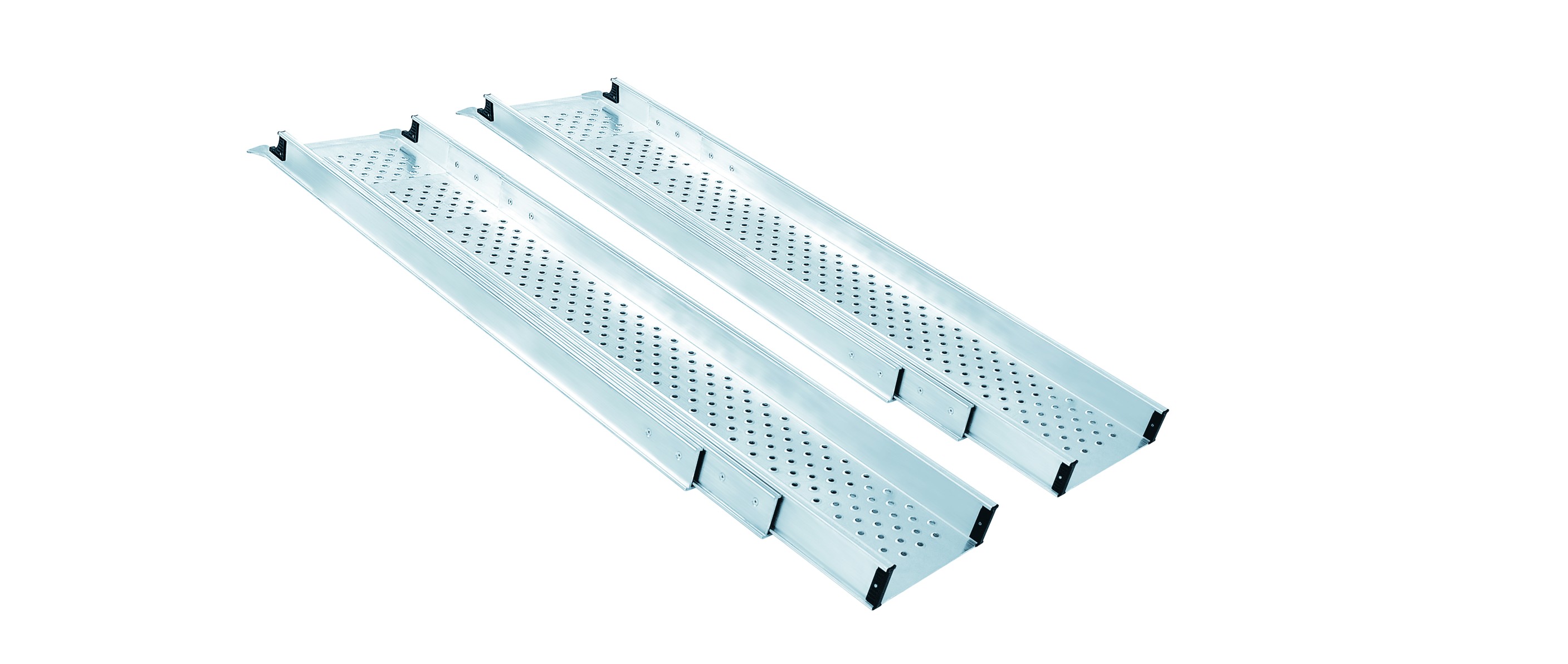

OV10 telescopic ramps

OV10 telescopic ramps

Technical details

  • SWL up to 500kg
  • Max. length up to 2900 mm (telescopic 3 section ramp)
  • Min. length from 1180 mm
Code
OV10E-1-1180,OV10E-3-2900, OV10E-2-2040

Detailed information

Basic info

Description

OV10 ramps are telescopic and extendable to a length of 2.9 metres. They only weigh between 3,4 and 9 kilograms but carry up to 500 kilograms of weight. OV10 ramps offer the perfect solution for logistics companies, wheelchairs, mobility scooters and more. Equipped with carrier handle.

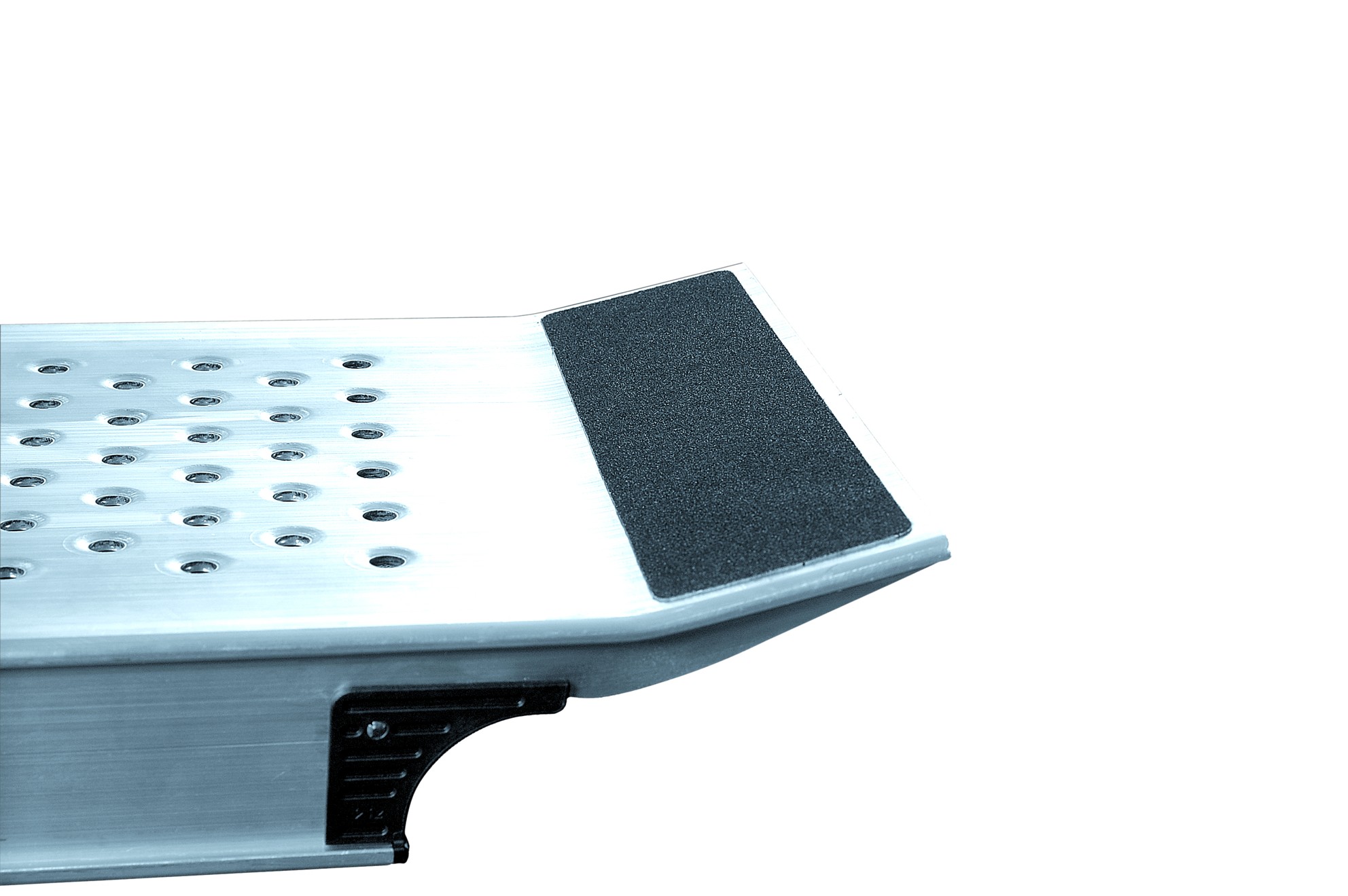

Friction and scratch protective fixed rubber pad
available for both regular and chamfered (low profiled wheel) cut designs

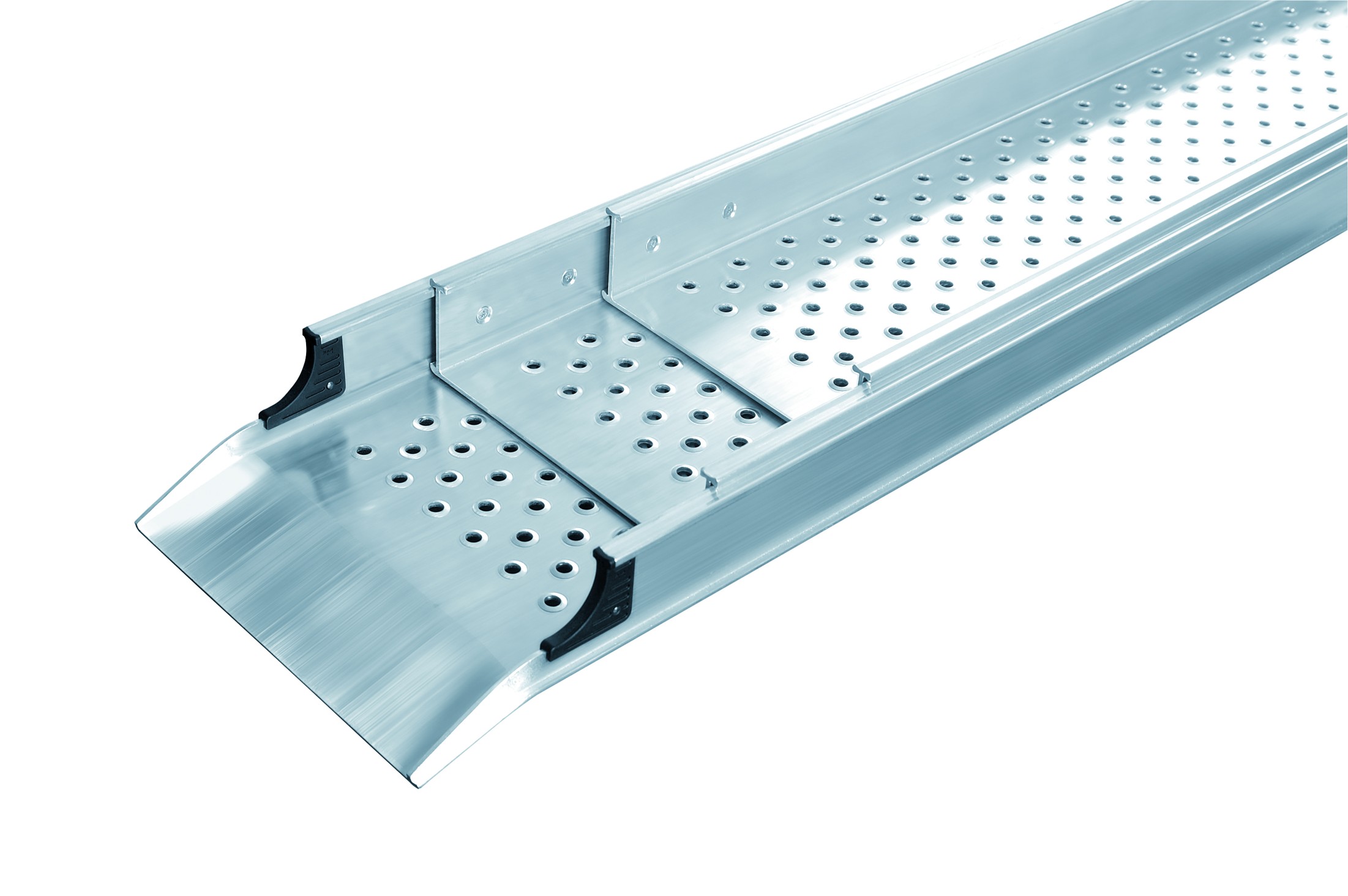

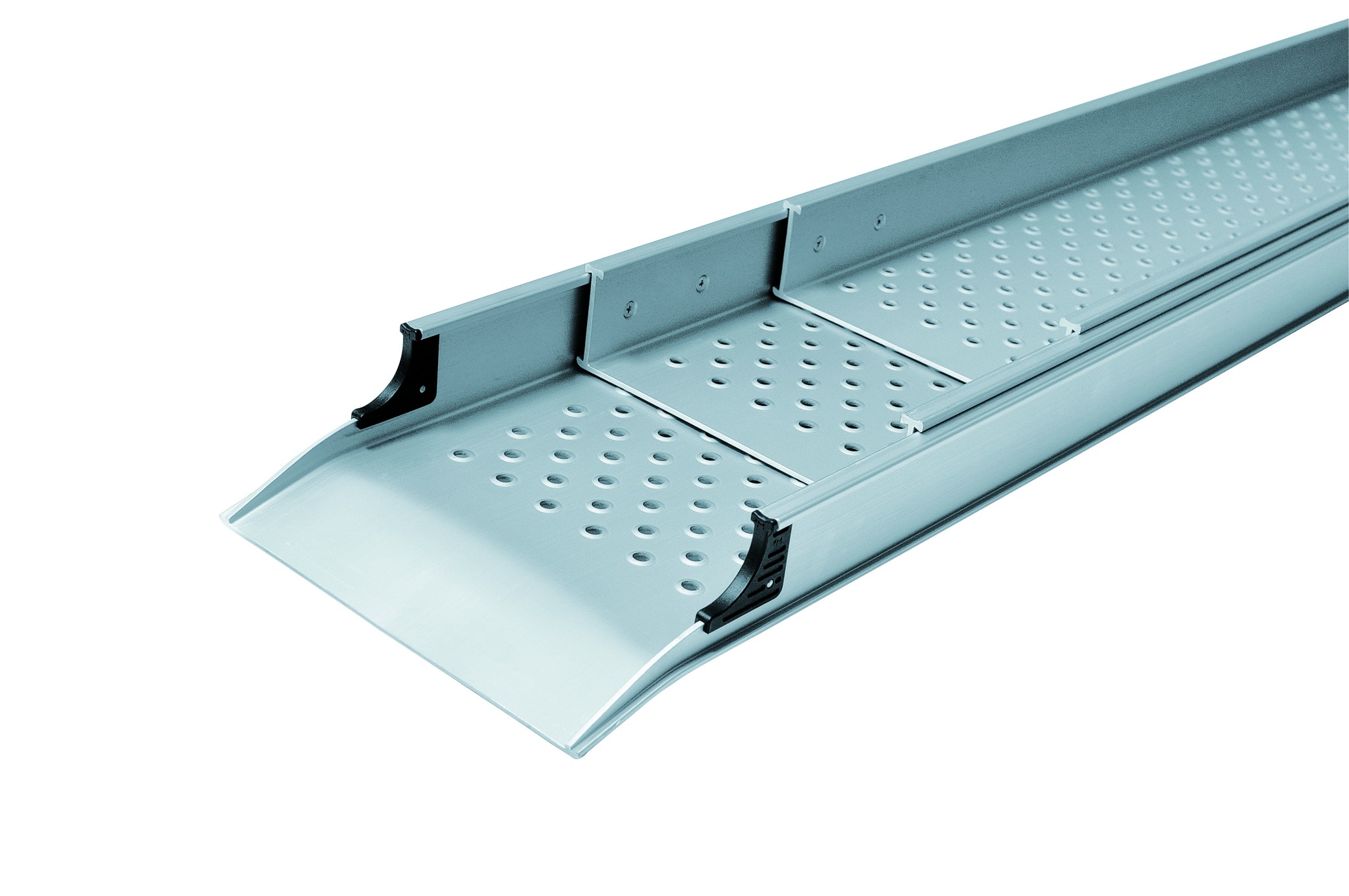

Regular or chamfered cuts
regular cut design for manual wheellchair use. Chamfered cut design for electric (low profile) wheelchair use









Smart locking system
spring loaded pin with zinc-chromed hook to secure the telescopic part

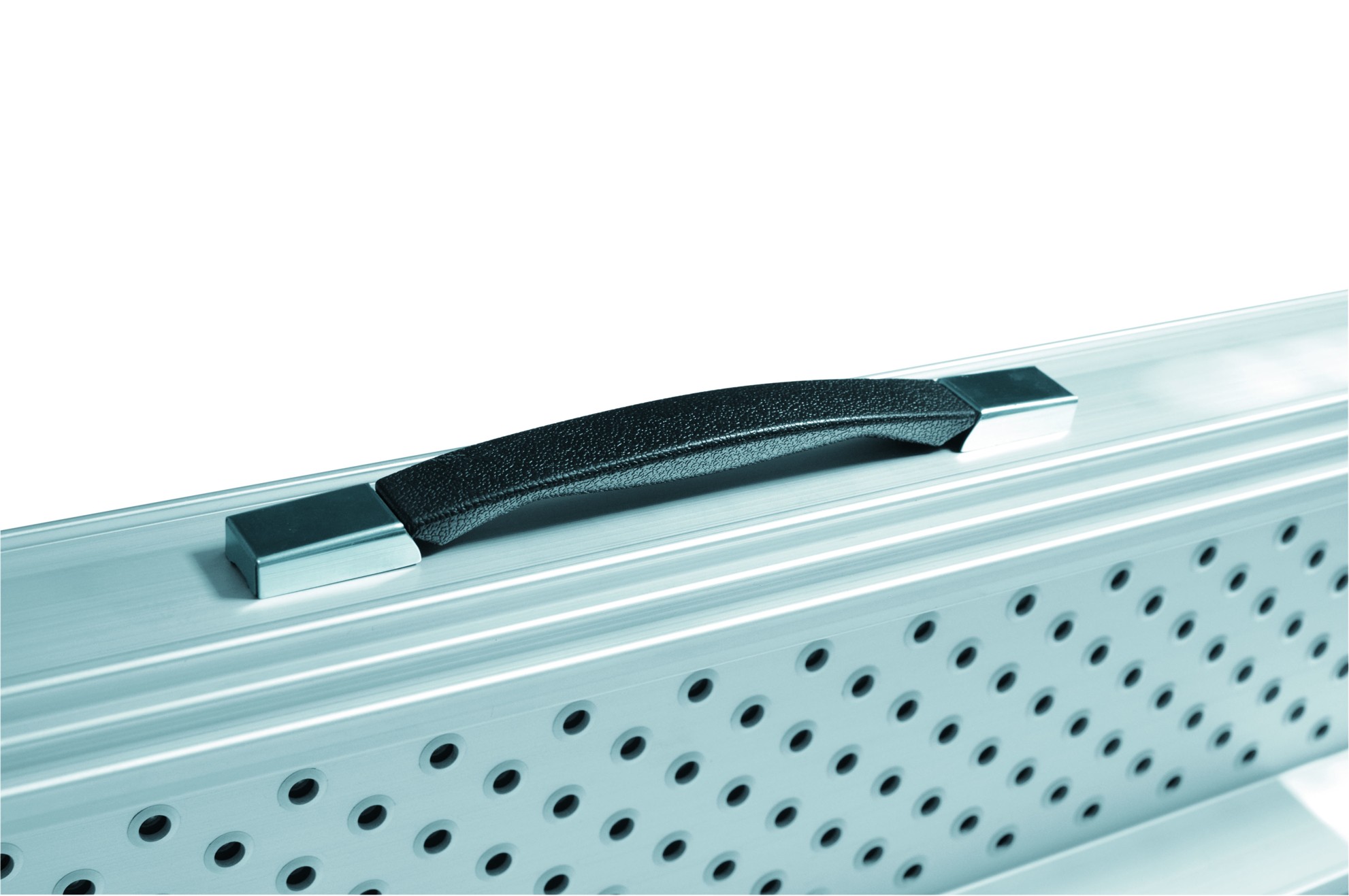

Comfort handling bar for easy manipulation
perforated metal sheet for anti-slip movement

Key benefits

  • Lightweight telescopic and foldable loading ramp series
  • Anodized anti-slip surface
  • Loading capacity up to 500 kg (1102 lbs)
  • Quick & simple operation
  • Maximum extended length up to 2900 mm (114.17")

Download PDF
