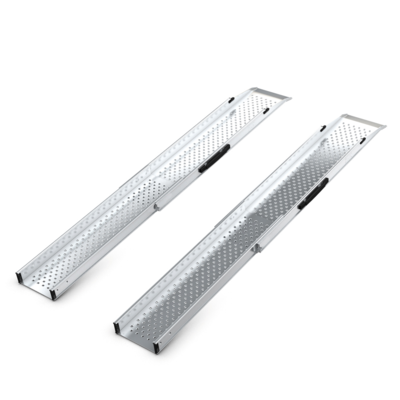

OV11 telescopic ramp (chamfered)

OV11 telescopic ramp (chamfered)

Technical details

  • Max.length up to 2530 mm (telescopic and foldable 3 section ramp)
  • Min. length from 550 mm
  • SWL up to 540 kg
OV11E-1-1150, OV11E-1-550, OV11E-2-1840, OV11E-3-2530

Detailed information

Basic info


OV11,OV12, OV13 Telescopic-folding ramps are the ideal solution for access of all types of mobility scooters. Telescopic and folding mechanism ensures easy handling and effective storage. It includes well known anti-slip design and drainage profile that is used with OV10.


Friction and scratch protective fixed rubber pad
available for both regular and chamfered (low profiled wheel) cut designs

Regular or chamfered cuts
regular cut design for manual wheellchair use. Chamfered cut design for electric (low profile) wheelchair use

Smart locking system
spring loaded pin with zinc-chromed hook to secure the telescopic part

Comfort handling bar for easy manipulation
perforated metal sheet for anti-slip m

Key benefits

  • Lightweight telescopic and foldable loading ramp series
  • Anodized anti-slip surface
  • Loading capacity up to 540 kg (1102 lbs)
  • Quick & simple operation
  • Maximum extended length up to 2530 mm (114.17")
