Description
Whoever said that size doesn’t matter hasn’t seen the MR5 in action. The MR5 is the largest roof in the Milos MR range and creates a huge concert stage area that can accommodate the biggest and most demanding events. Manufactured to strict specifications by certified welders, the MR5 is delivered with both static calculations and an assembly manual. Call or e-mail us today for more information or to request a quote.
Key benefits

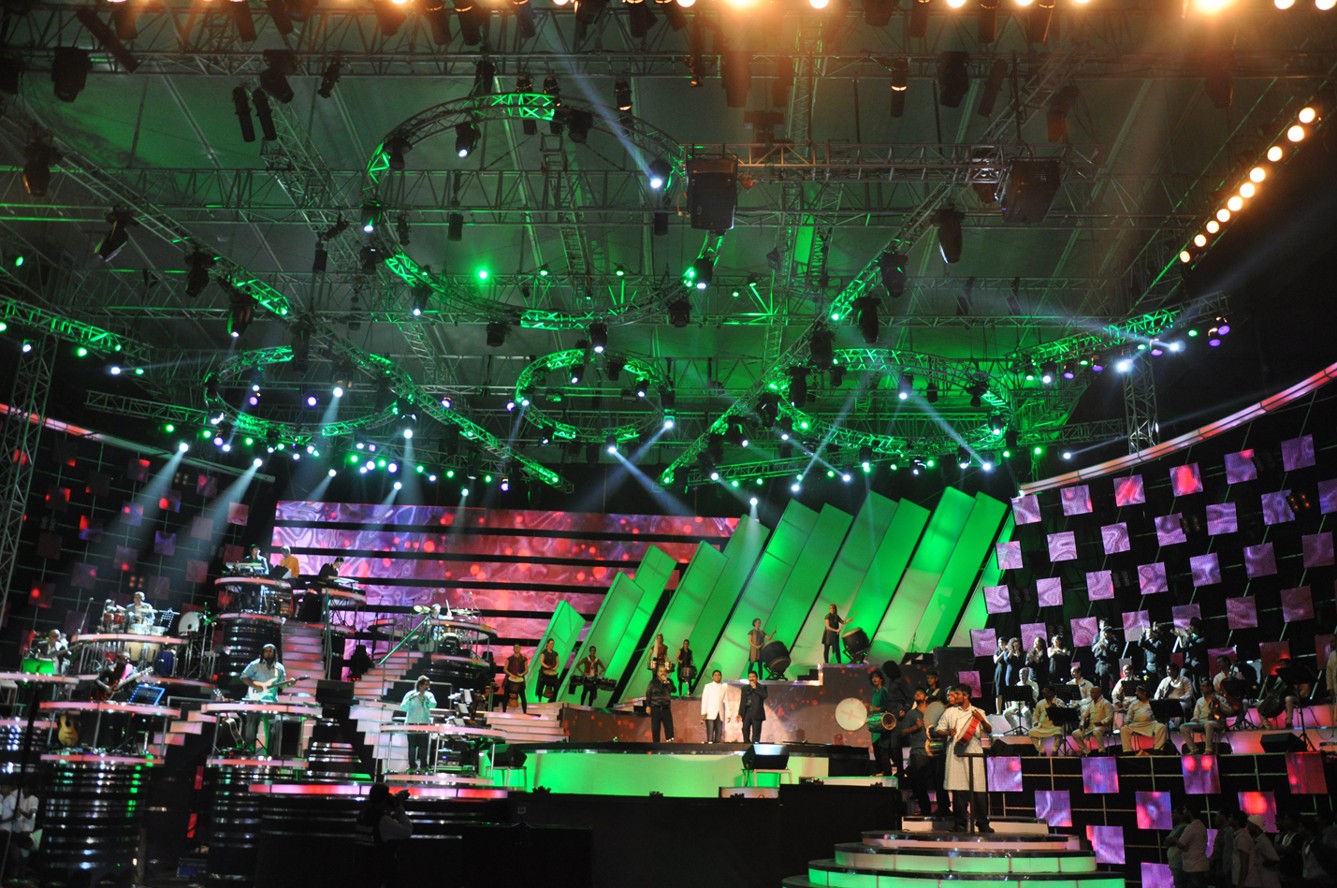

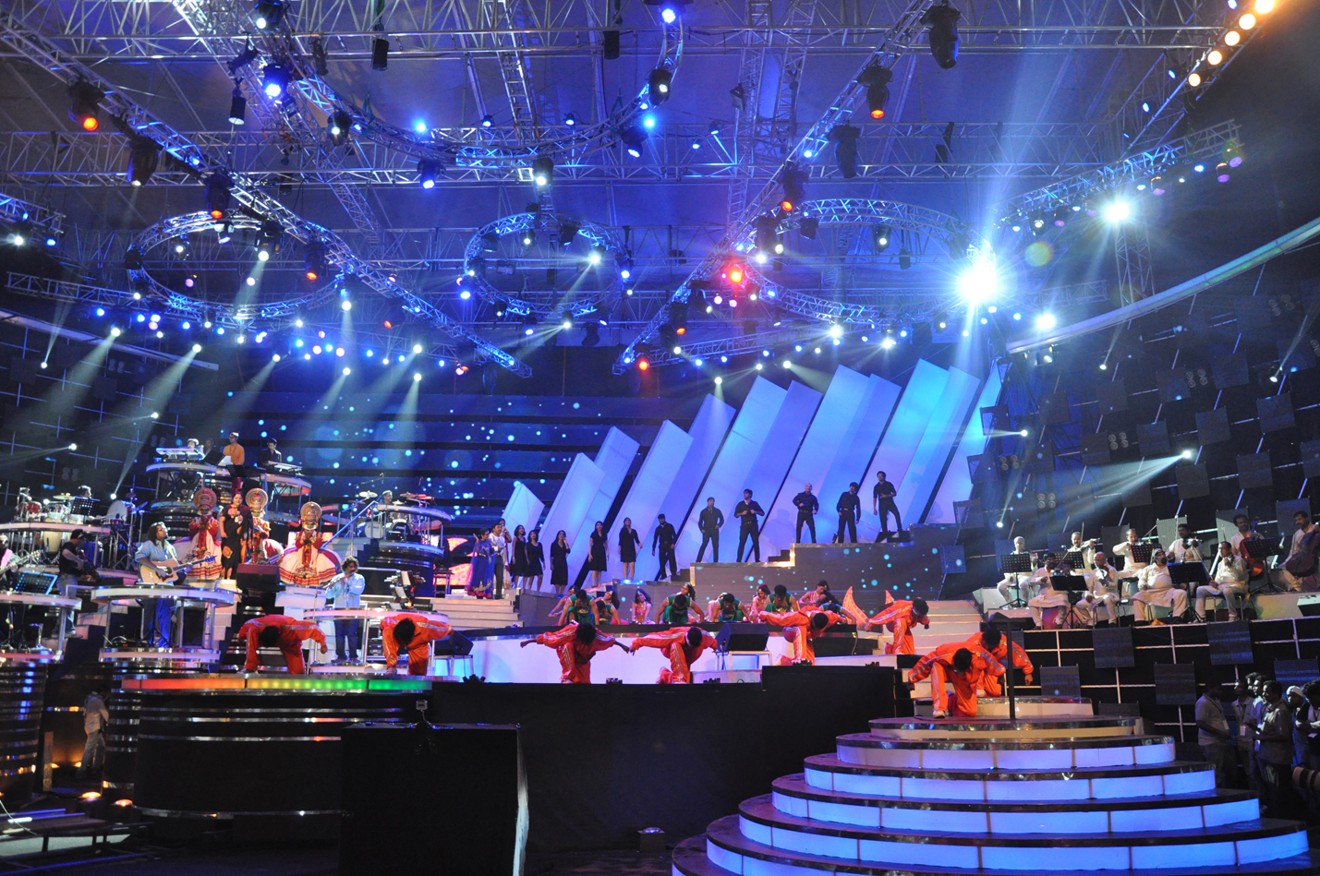

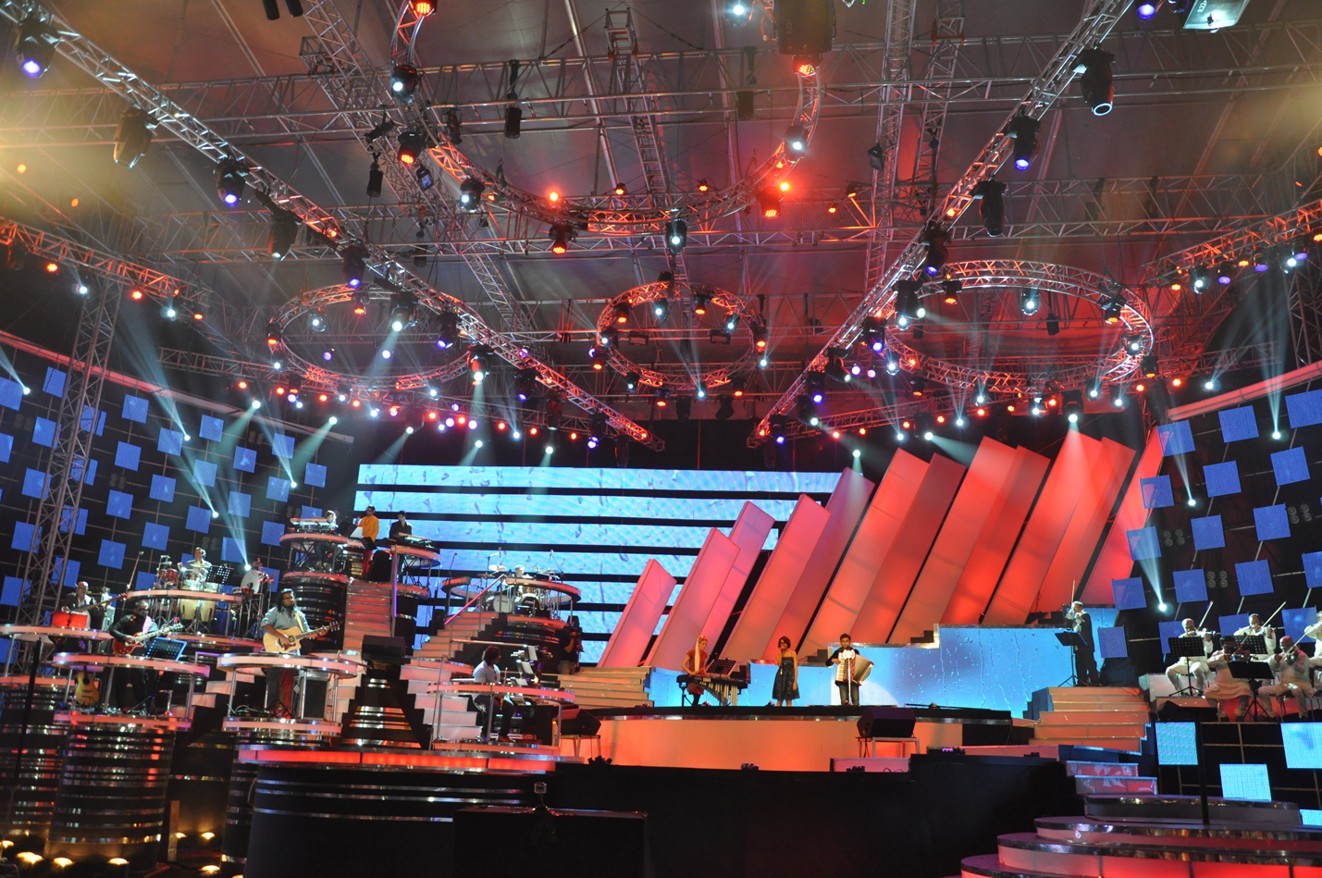

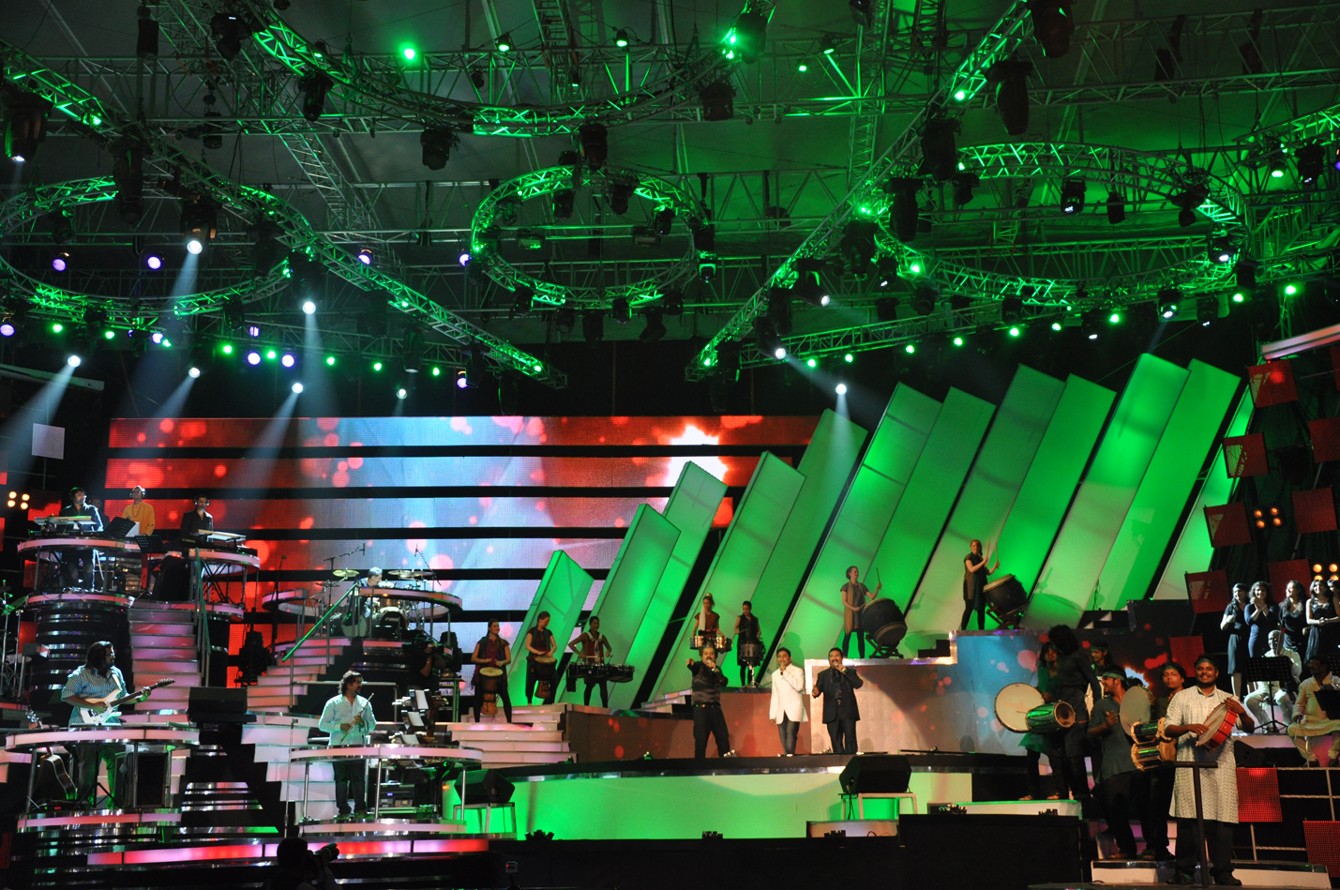

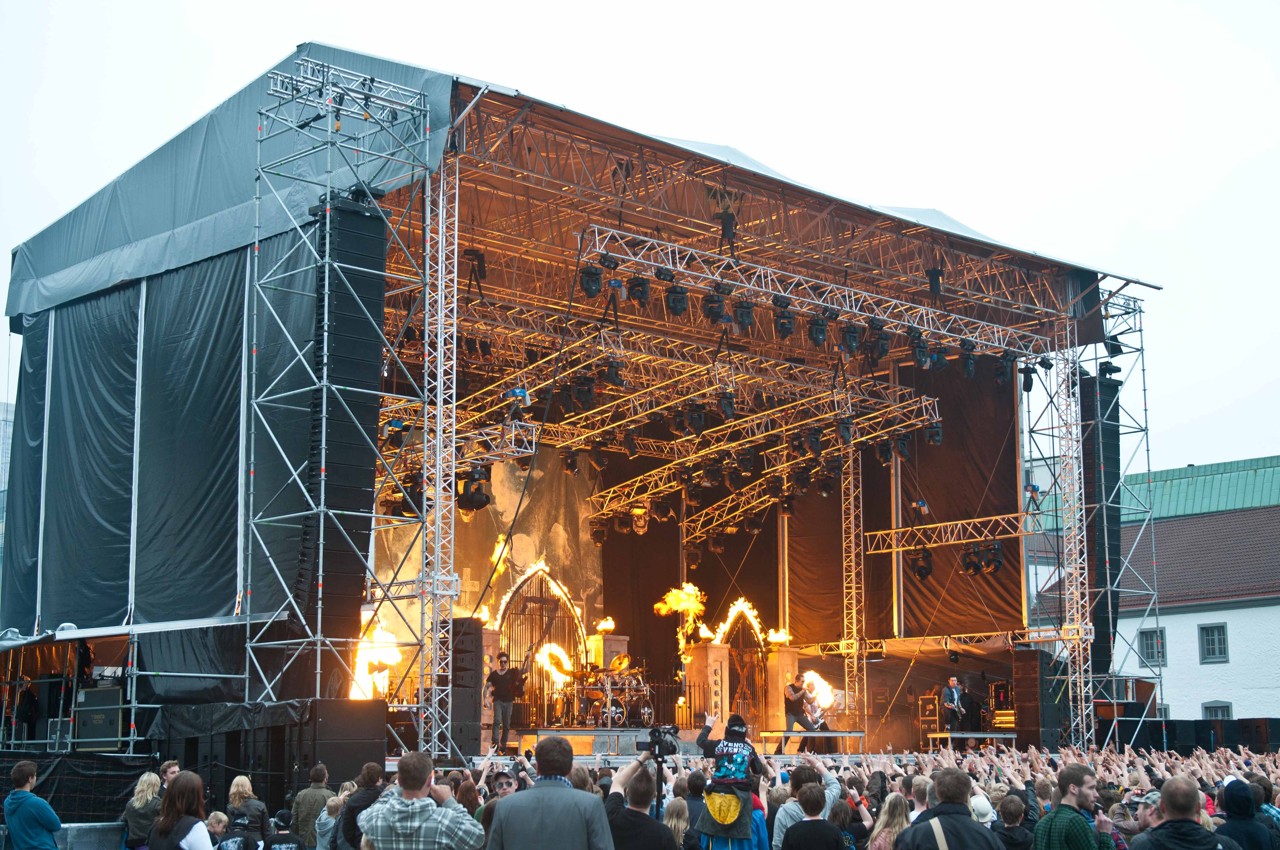

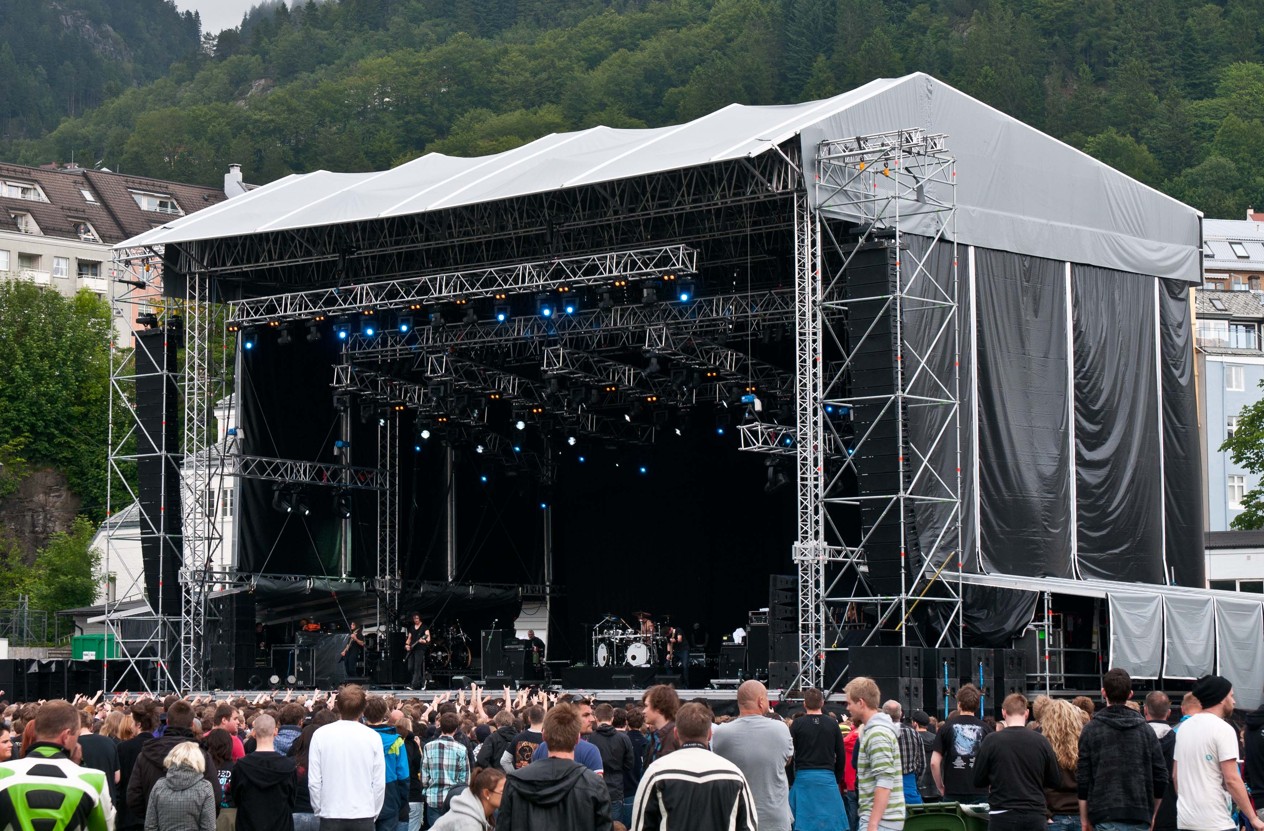

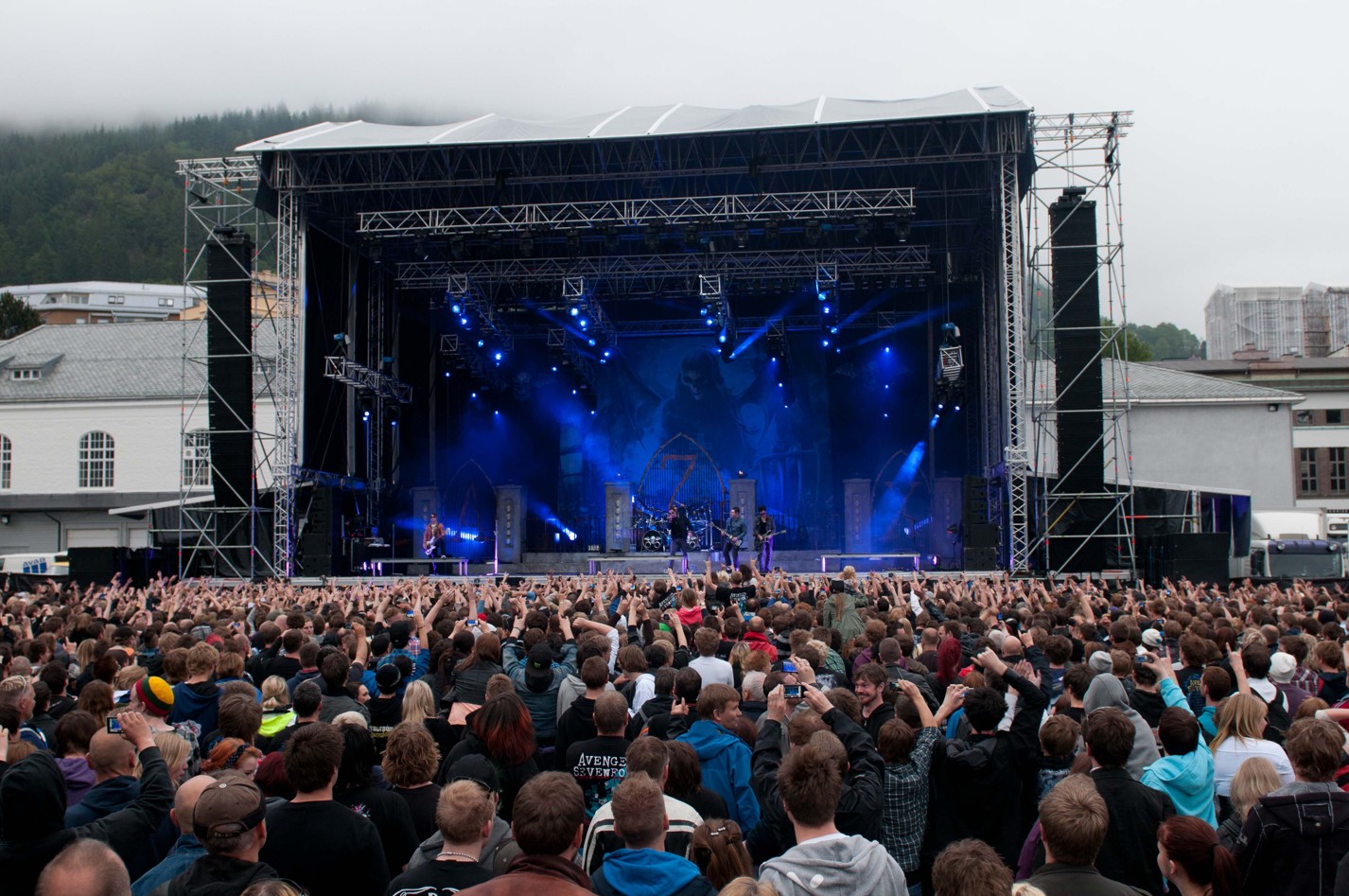

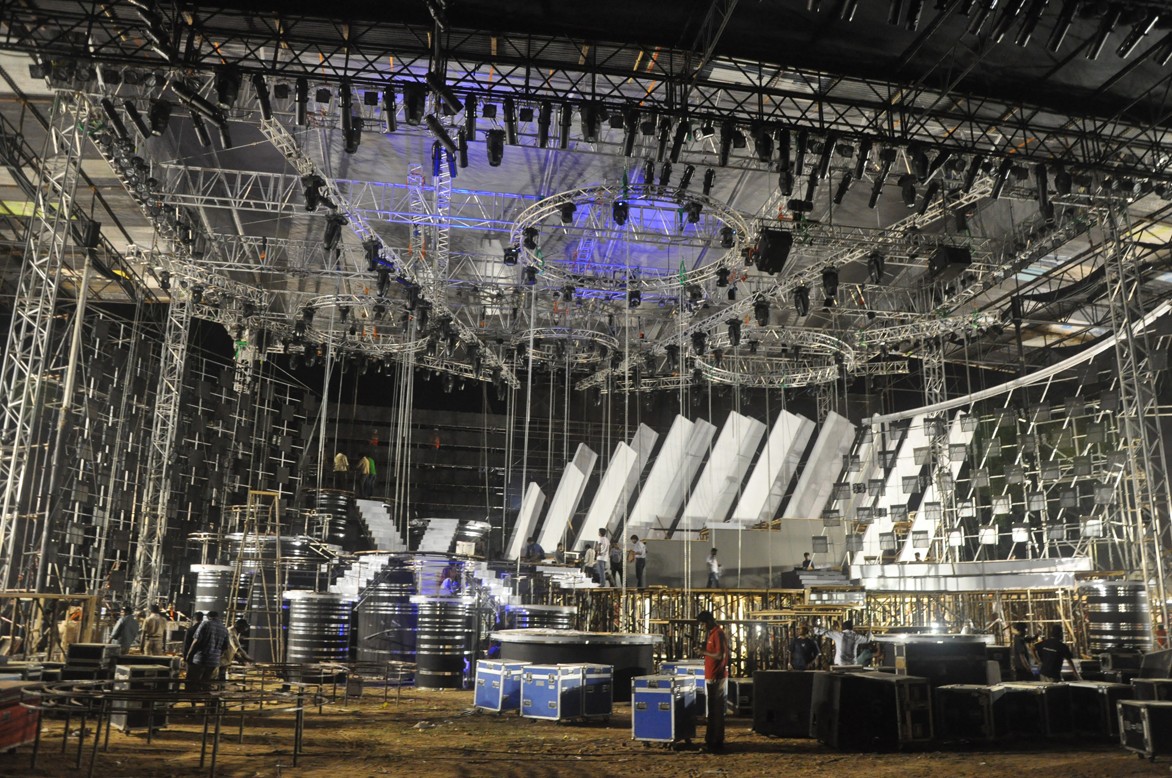

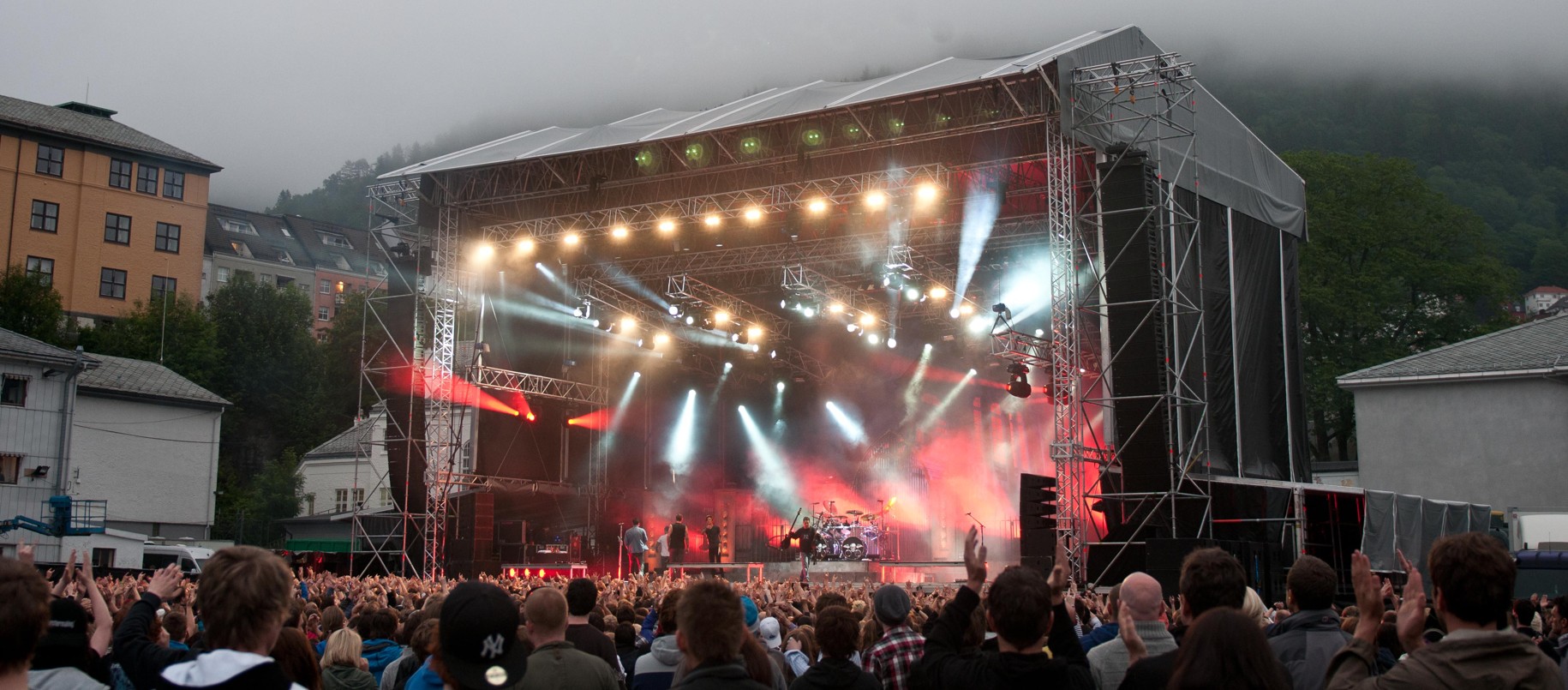

MR5 Mega-Pitched Roof structure for temporary events
MT2 / MT3 self-climbing towers upto 12,5 m high (41.01 ft) with M950 main grid
M950 folding series used to minimise volume for storage & transporation
Easy back stage area integration to main structure
Supplied complete with internal wind bracing wires & connection accessories
Full structural calculation report & build manual available
PVC roof colour and side wall keder options
Integrated tower base / stage components available
PA / Video wing options available on request
EXE hoists recommended
Technical specification
Dimensions
Stage size
24x14 m
78,74x45,93 ft
20x14 m
65,62x45,93 ft
A
Internal width
24,76 m
81.23 ft
20,76 m
68.11 ft
B
Overall external width
27,84 m
91.34 ft
23,84 m
78.22 ft
C
Internal depth
14,74 m
48.36 ft
14,74 m
48.36 ft
D
Overall external depth
17,80 m
58.40 ft
17,80 m
58.40 ft
E
Clearance
11,48 m
37.66 ft
11,48 m
37.66 ft
F
Overall height
14,43 m
47.34 ft
14,43 m
47.34 ft
G
Cantilever depth
2,02 m
6.63 ft
2,02 m
6.63 ft
Loading capacity
Loading capacity
Stage size
24x14 m
78,74x45,93 ft
20x14 m
65,62x45,93 ft
Main grid
Uniformly distributed (UDL)
15000 Kg
33069 lbs
20000 Kg
44092 lbs
Side wing
Central point load (CPL)
3000 Kg
6613lbs
3000 Kg
6613 lbs
* See structural report for exact load positioning
Operational specifications
Design standarts
DIN EN 13814 (2005)
DIN 1055-4
DIN 4113
DIN 18800
Fairground and amusement park machinery and structures
Actions on structures / wind
Design of aluminium structures
Design of steel structures
• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management
Out of service
In service
28,3m/s - 100km/h - 62mph (Max. gust windspeed
17,8m/s - 64km/h - 40mph (Max. gust windspeed)
* Calculations based on 100% closed side canopies
* Side canopies to be removed above this wind speed if not considered
Ballast
This can vary per tower from 2375kg / 5231lbs up to 12700kg / 27973lbs and depends on:
• If tower bases are interconnected or freely standing
• Lay-out of canopies
• Self-weight of load or interconnected stage is considered (Might be deducted from ballast under certain conditions)
• Friction material used between screw jacks, padding and sub soil
Canopy & sidewalls
B1 fire retardant canopy, in kedders, configurable for different sizes on request
Silvergrey; other colors or inside black on request
B1 fire retardant side nets in compliance with latest Eurocodes
Customized
Customisation (i.e. truss configuration, alternative dimensions, roof adjustability) on requirement
Transportation data
Self-weight
Stage size
24x14 m
78,74x45,93 ft
20x14 m
65,62x32,81 ft
* Exact self-weight depends on configuration
7200 kg
15859 lbs
6435 kg
14174 lbs
Transport volume
* Packed in carton boxes and bubble foil
120 m3
4237 ft3
100 m3
3531 ft3
Left arrow
Right arrow
MR5

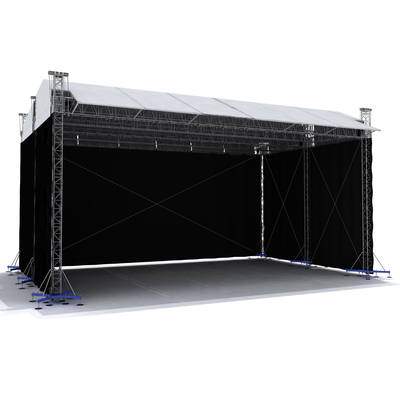

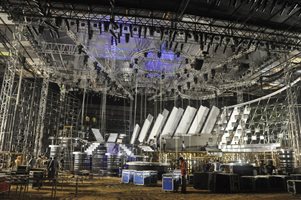

MR5 Pitched (24x14m, 20x14m)
The largest roof in the Milos MR range for immense concert stages at the most demanding events.
Code
MR5 24x14m, 20x14m
Max. Stage Dimensions
24x14 m
Max. Clearance
47.34 ft
Wind Rating
64/100 km/h (in/out of service)
