Go back to Towers & LED Screens
Detailed information
Basic info
Lengths & Weights
Download section
Key benefits
Free-standing MT Tower LED Screen Support solution
Wide range of system options available to suit specific screen size & weight
Self-climbing towers ( MT2 ) with electric or manual hoists
EXE hoists recommended
Screwjack feet for quick & easy levelling
Fast connection for quick, simple and secure assembly
Stabilisation via front & back integrated cross tension wires
Powder coat colour finish available on request
Technical specification
Dimensions
LED screen size
6x4 m
19,70x13,10 ft
A
Internal width
7,36 m
24.15 ft
B
Overall external width
8,50 m
27.89 ft
C
Overall external depth
6,83 m
22.41 ft
D
Clearance
6,86 m
22.51 ft
E
Overall height
8,52 m
27.95 ft
Loading capacity
Loading capacity
LED screen size
6x4 m
19,70x13,10 ft
LED Screen
6x point loads equally divided
416 kg
916 lbs
3x point loads equally divided
833 kg
1835 lbs
Max. total load
2500 kg
5511 lbs
* See structural report for exact load positioning
Operational specifications
Design standarts
DIN EN 13814 (2005)
DIN 1055-4
DIN 4113
DIN 18800
Fairground and amusement park machinery and structures
Actions on structures / wind
Design of aluminium structures
Design of steel structures
• All our structures are standard produced under EN 1090 EXC2, include neccessary guy wires, instruction manual and engineering report
Wind management
Max. wind speed incl screen
28m/s - 100km/h - 62mph (Max basic wind speed)
* Screen to be stabilised against swinging by cross truss at bottom of screen
Ballast
4x 1700kg / 3744lbs at the end of each outrigger
Figure based on screwjack to timber spreader to rubber to concrete / asphalt
Customized
Customisation, i.e. truss configuration, alternative dimensions, on requirement.
Always verify with Milos your screen dimensions, weight and rigging plan for correct configuration
Transportation data
Self-weight
LED screen size
6x4 m
19,70x13,10 ft
* Exact self-weight depends on configuration
750 kg
1652 lbs
Transport volume
* Packed in carton boxes and bubble foil
6 m3
212 ft3
LSG2

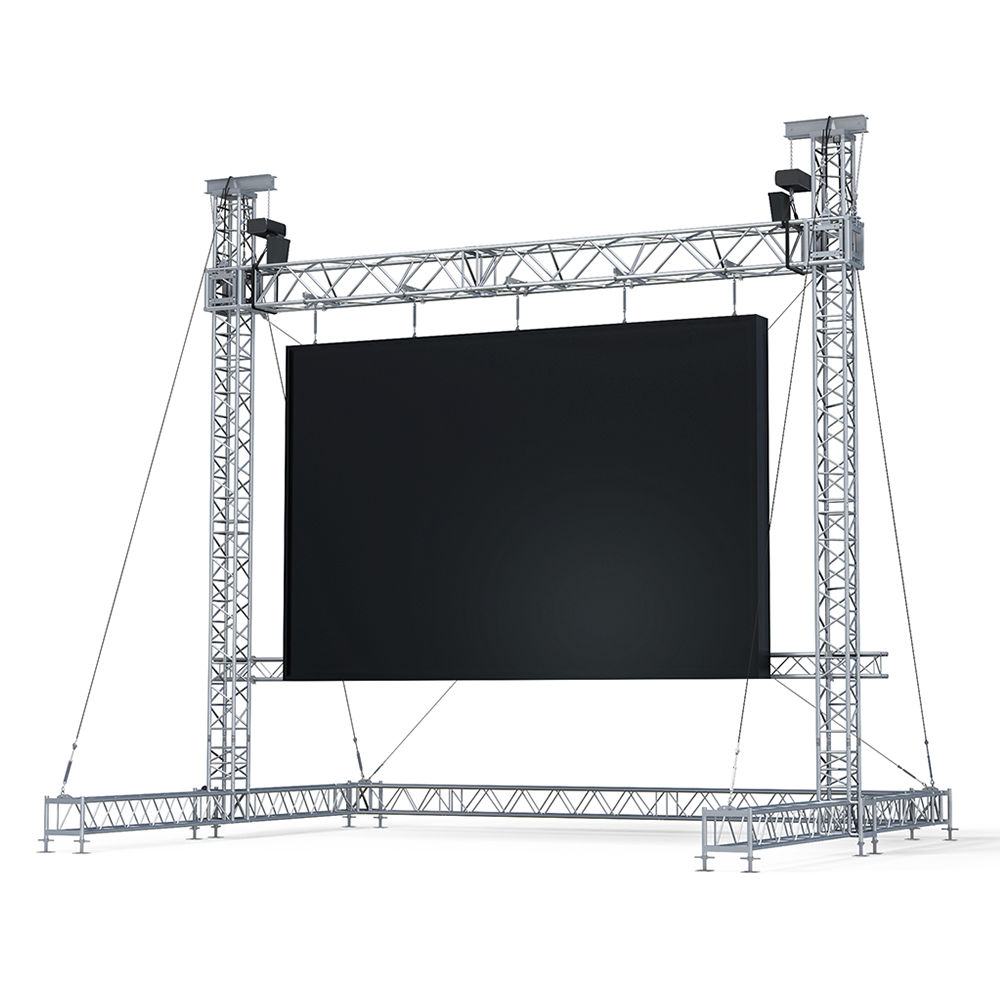

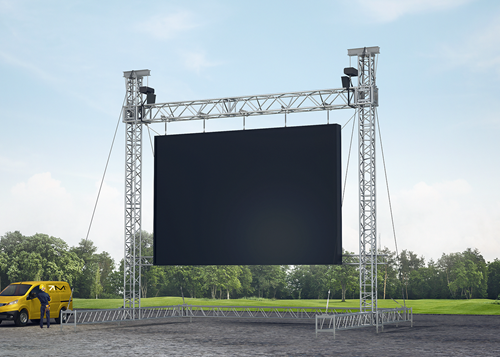

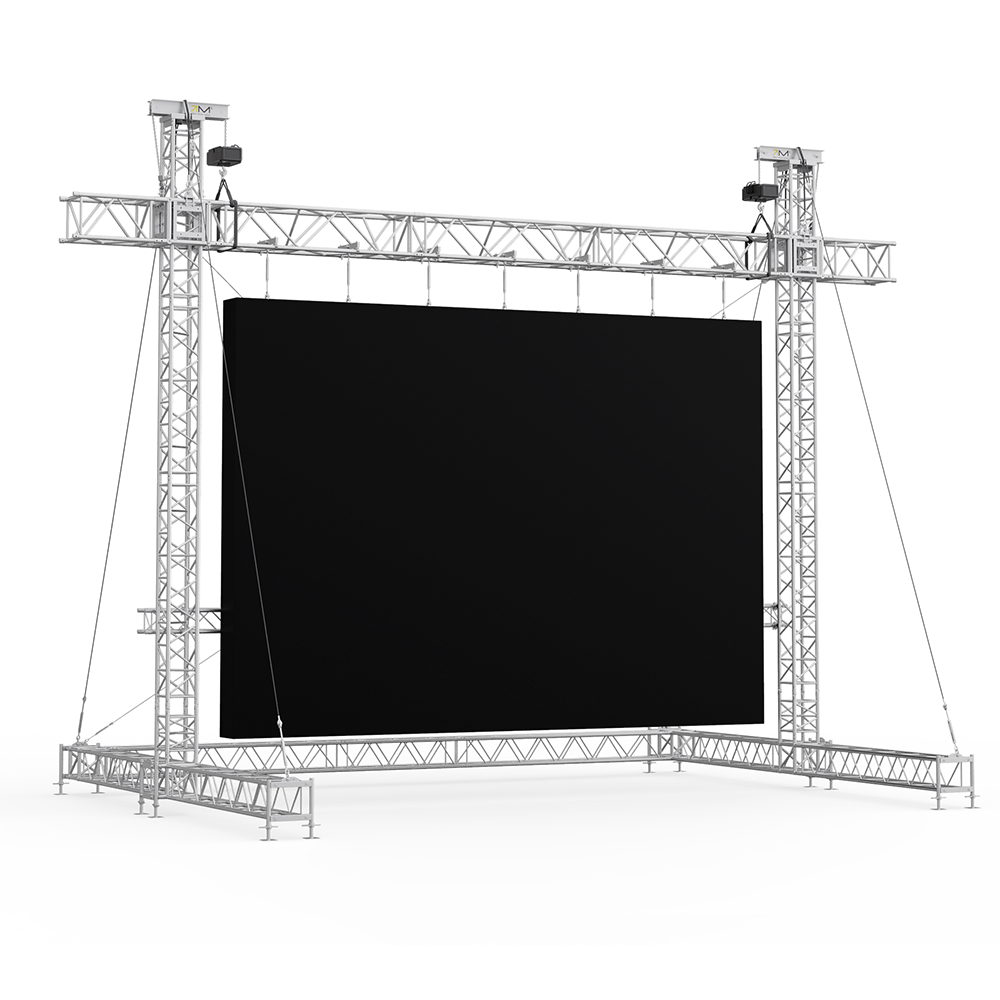

LSG2 LED Screen structures
Compact LED screen support structure with integrated ballast platform featuring quick, simple and secure assembly. Wide range of options to suit specific screen size & weight.
Available colors:
Code
LSG2 6x4m
Self Weight
750 kg
